2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: LB-ST-LC-S-2
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1pc/box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 5,000 pcs per month
Contact Now
Detail Information
Connector: SC FC LC ST Fiber Count: 1
Insertion Loss: < 0.2 DB Fiber Type: SM Singlemode
Package: Box Cable Color: Yellow
Cable Diameter: 2.0mm Temperature: -40~+80°C

Product Description

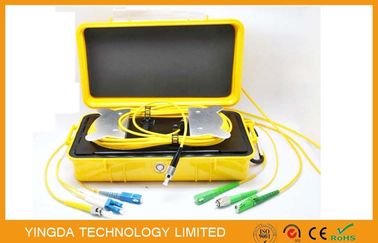

2KM MM 62.5/125 ST LC Fiber Optic OTDR Launch Cable Box Fiber Tool Kits

OTDR Dead Zone Eliminator Fiber Rings





The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help

 minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many

different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.





Features

  1. Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
  2. Compound Latch for positive seal and easy opening with locking feature.
  3. Non­metal construction will not dent, corrode, or conduce electricity.
  4. Water and dust prove allowing the unit to be taken into almost any environment.
  5. Case can house up to 2,000 meters of fiber.
  6. Auto Purge Valve for changes in altitude and temperature .



Specifications



Length*Width*Height

9.37" x 5.56" x 2.62"

Material

SR Polypropylene

Color

Black/Yellow

Net Weight

0.75 kg (without fiber)

Operating temperature

Operating temperature

Typical Loss

< 1dB @ 1310nm for 1000 meters





KEEP NOTES:

  1. Water and dust prove allowing the unit to be taken into almost any environment
  2. Case can house up to 2,000meters.

Ordering Information



LB-A-B-C-D



A = Input

connector

B = Output

connector

C = Fiber

D = Length(km)

FC

FC

S–Single mode fiber

 0.5=0.5km

ST

ST

M6–Multi mode fiber

(62.5/125)

 1=1km

SC

SC

M5–Multi mode fiber

 (50/125)

 2=2km

FCA – FC/APC

FCA – FC/APC





SCA – SC/APC

SCA – SC/APC





 LC

LC





 MU

MU







2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box

2KM MM 62.5 / 125 ST LC Fiber Tool Kits / Fiber Optic OTDR Launch Cable Box
