LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter
  • name
  • name
  • name
  • name

LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter

MOQ: 100 PCS
Price: 0.04USD-2.15USD
Standard Packaging: 1 pc / bag or 10 pc/ blister box
Delivery Period: 3 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-SCU M/LCU F-SX-M
Material:
Plastic
Dust Cap Color:
Blue
Type:
Hybrid Adapter
Weight:
10g
Fiber Type:
Single-mode, Multimode
Sleeve Material:
Ceramic
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

Blue Hybrid Fiber Optic Adapter

,

UPC Hybrid Fiber Optic Adapter

,

SM Optical Fiber Adapter

Product Description

Factory LC/UPC Female to SC/UPC Male Hybrid Flange Singlemode 9/125 SM Optical Fiber Adapter Connector



Description:



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.





Features

  1. Low insertion loss <0.2dB
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Support OEM logo



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Order information



Housing Material

Sleeve Material

Channel

zinc alloy

Ceramic

Simplex

 Plastic

 Phosphor bronze

duplex

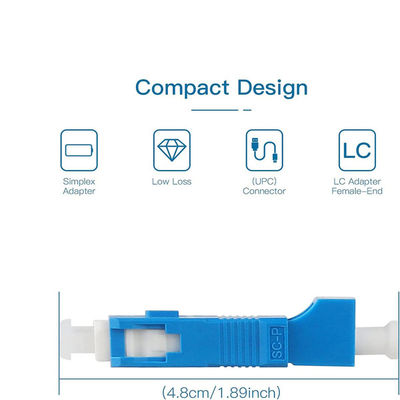

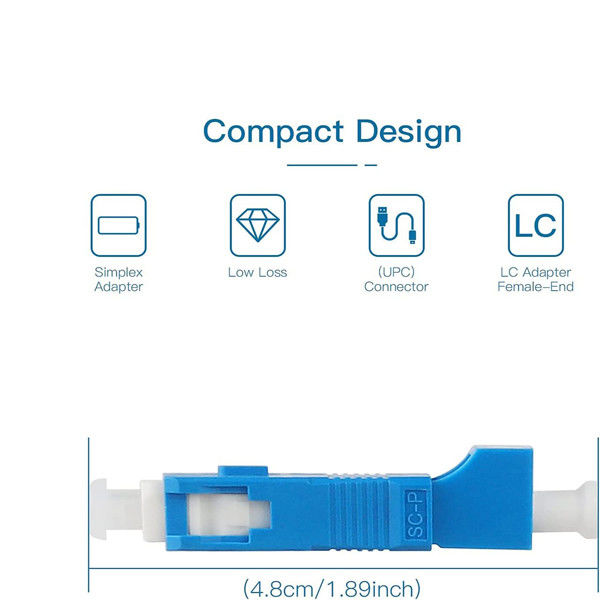

LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter 0

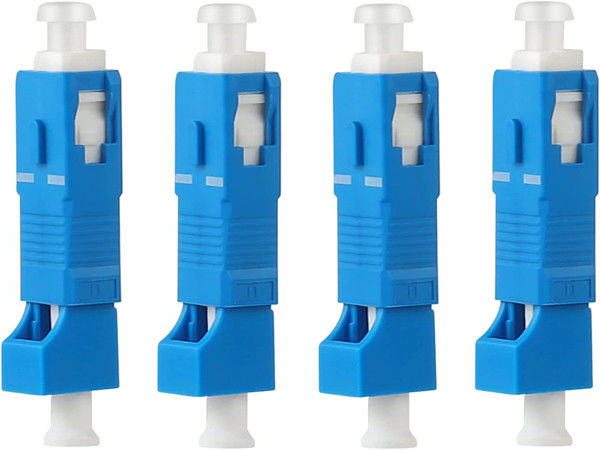

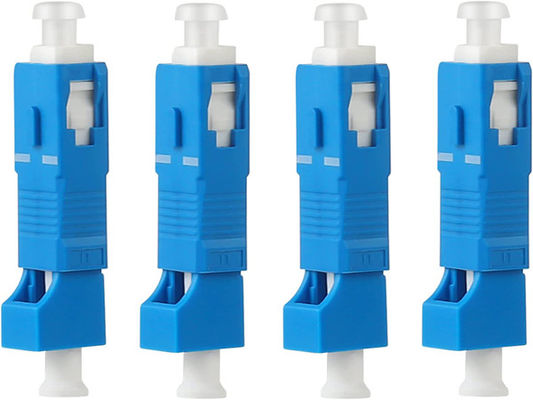

LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter 1

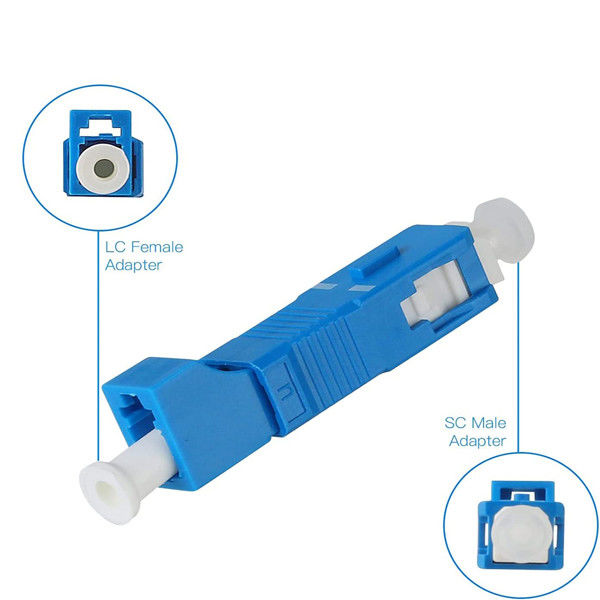

LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter 2

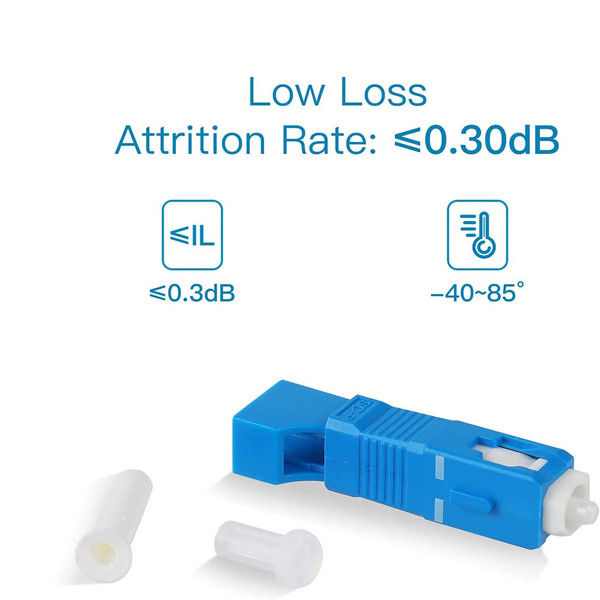

LC/UPC Female To SC/UPC Male Hybrid Fiber Optic Adapter 9/125um SM Optical Fiber Adapter 3
