FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um

FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um

  • High Light

    Hybird Fiber Optic Adapter SGS

    ,

    FTTH Fiber Connector Adapter

    ,

    Singlemode Fiber Connector Adapter

  • Material
    Plastic
  • Dust Cap Color
    Green
  • Type
    Hybrid Adapter
  • Weight
    10g
  • Fiber Type
    Single-mode, Multimode
  • Sleeve Material
    Ceramic
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-SCA M/LCA F-SX-M
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / bag or 10 pc/ blister box
  • Delivery Time
    3 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um

Factory Single Mode SC/APC Male to LC/APC Female 9/125um Hybird Adapter Fiber Optic Connector FTTH Adaptor Convertor​





Description:



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.





Features

  1. Low insertion loss <0.2dB
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Support OEM logo



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Order information



Housing Material

Sleeve Material

Channel

zinc alloy

Ceramic

Simplex

 Plastic

 Phosphor bronze

duplex

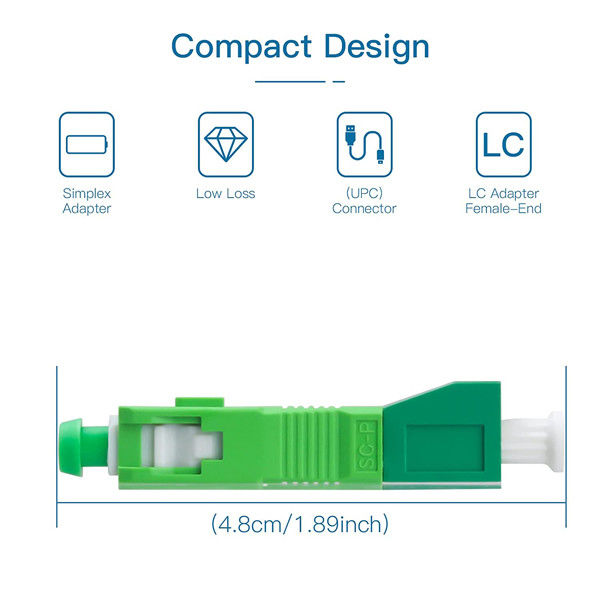

FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um 0

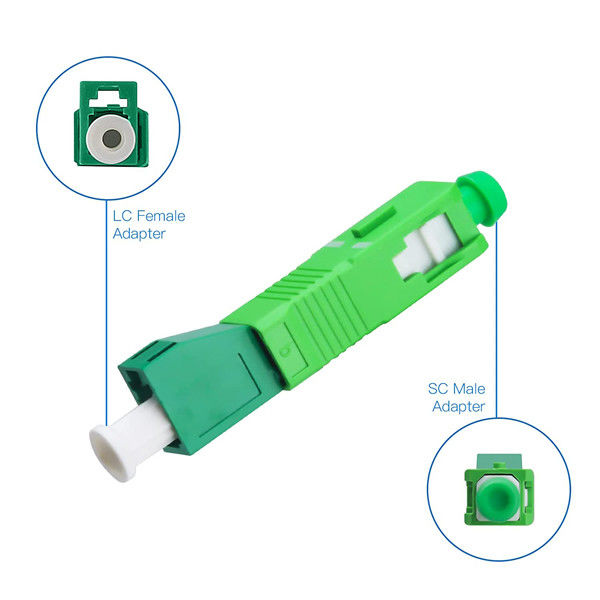

FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um 1

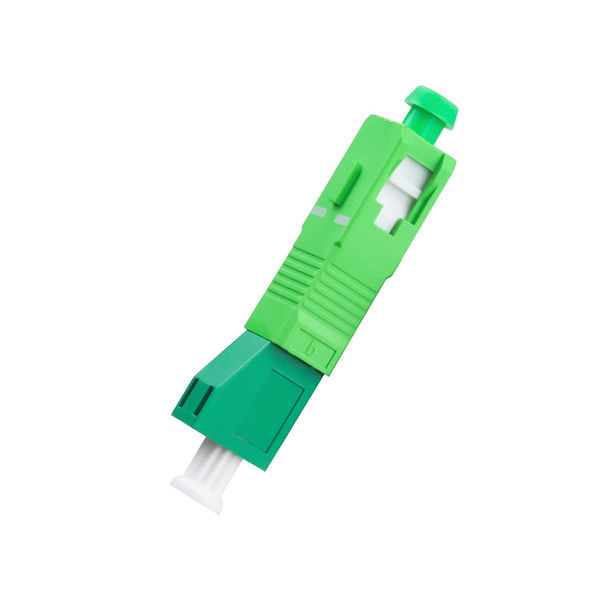

FTTH Fiber Connector Adapter Hybird Singlemode SC/APC Male To LC/APC Female 9/125um 2
