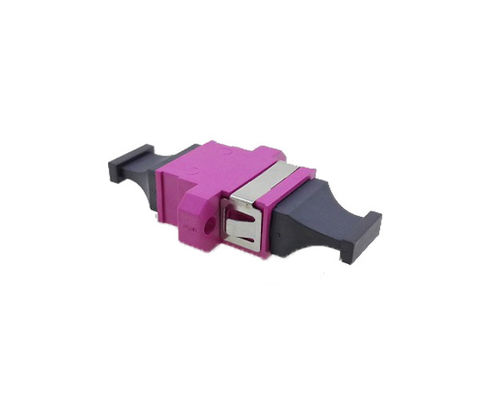

MPO MTP Fiber Optic Adapter Coupler 12 Fiber OM4 For Data Center Patching System

Name: MPO MTP Fiber Optic Adapter Coupler 12 Fiber OM4 For Data Center Patching System
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO MTP-OM4
Price: 1.04 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	MPO MTP-OM4
MOQ:	10PCS
Price:	0.04USD-2.15USD

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,SGS

Color:

Black, Green, Aqua, Purple ,etc

Material:

Plastic PC ABS

Connector:

MPO MTP Adaptor

Fiber Count:

12 Fiber, 24 Fibers

Product Name:

Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette

Packaging Details:

1pc / box

Highlight:

MPO MTP Fiber Optic Adapter

OM4 Fiber Optic Coupler

ABS Fiber Optic Adapter

Product Description

MPO MTP Fiber Optic Adapter Coupler 12Fiber 24Fiber OM3 Green Aqua Purple Black

YINGDA MPO fiber optic adapter connetion is different with the simplex SC adapter, SC fiber optic adapter has ceramic sleeve inside,
which makes the core connection for precise alignment, but MPO adapter connect according to the end surface 2pcs guide hole and
guid pin whose diameter is 0.7mm. So MPO adapter don't have singlemode or multimode, but SC fiber optic adapter have due to
different sleeve. MPO adapter is widely used in communication system base station, building room fiber distribution (ODF), MPO box,
a variety of test instruments.

12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell direct, standard delivery time:
2days -3days.Color can be customized according to customer requirements, non quality problems do not accept returns, specific
problems please contact customer service online or telephone: 18688982406 to make order or consult. We will take the highest
quality service, the quickest technical support to help the parents complete the order.

Features

Good repeat ability, repeat >500times
Low insertion loss
High reliability
Variety of kinds
Meet RoSH requirements

Adapter Structure

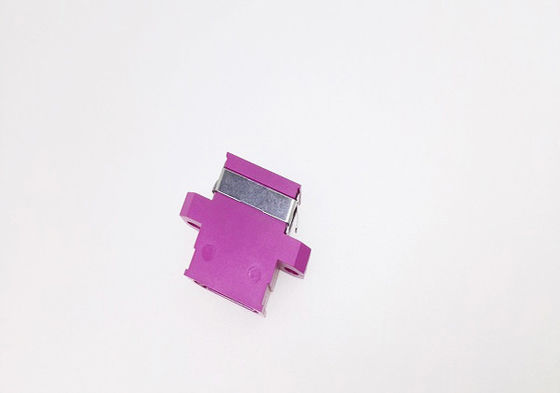

MPO MTP Fiber Optic Adapter Coupler 12 Fiber OM4 For Data Center Patching System 0

Specification

Connector	MPO / MTP
Color	Black / aqua
Test wavelength	1310nm, 1550nm, 850nm, 1300nm
Insertion loss	typical<0.20dB, maximum< 0.30dB
Repeat ability	≤0.10dB
Interchangeable	≤0.20dB
Plug performance	Plug 500 times, <0.20dB
Adapter material	Plastic PC
Working temperature	0℃ to +70℃
Storage temperature	-40℃ to +85℃

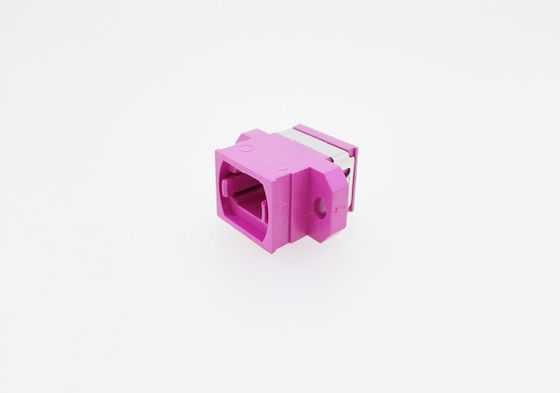

MPO MTP Fiber Optic Adapter Coupler 12 Fiber OM4 For Data Center Patching System 1
---------------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------
Application

Test instruments
The fiber link test
The connection between the equipment
The connection between the MPO - jumper
The cable TV network, metropolitan area network,
wide area network, FTTX

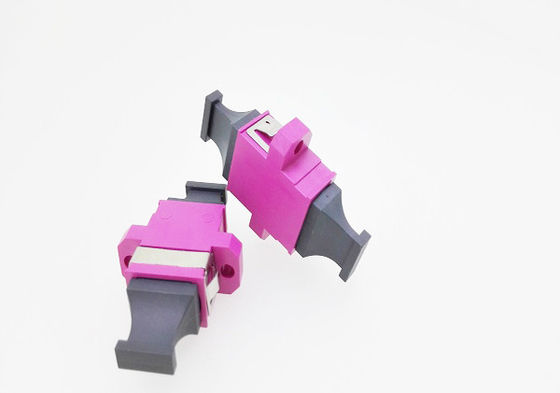

MPO MTP Fiber Optic Adapter Coupler 12 Fiber OM4 For Data Center Patching System 3
