E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel
  • name
  • name
  • name
  • name

E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel

MOQ: 1000pcs
Price: 0.04USD-2.15USD
Standard Packaging: 50cs / box
Delivery Period: 5 working days
Payment Method: T/T or western Union
Supply Capacity: 20k pcs/ month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, CE
Model Number
YDAD-SA-E2000/A
Fiber Count:
1core Simplex
Connector Material:
Plastic
Adapter Color:
Green Blue Purple Gray Aqua
Sleeve Material:
Ceramic White
Fiber Type:
Single Mode 9/125um
Polish Mode:
APC PC UPC
Insetion Loss:
< 0.2dB
Wavelength:
1310nm, 1550nm
House Material:
PBT ABS
Flange Type:
With Flange
Application:
Patch Panel, ODF Frame, Rack, Cabinet, Closure Etc
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

Simplex Fiber Optic Adapter

,

Singlemode Fiber Optic Adapter

,

PBT Fiber Optic Adapter

Product Description

E2000/Apc Simplex Singlemode Fiber Optic Adapter with Flange For Patch Panel





Quick Details of Fiber Optic Adapters

  • Connector: SC LC FC ST E2000 MPO
  • Color type: blue, beige, aqua, green, purple, etc.
  • Insertion loss<0.2dB
  • Conforms to IEC61300 standard, CE certified



Yingda simplex plastic SC couplers are designed for mounting in standard rectangular cut out stype panels. This sery features either bronze or ceramic alignment sleeves to meet your specific design requirement. Ferrule can be PC, APC, UPC polished. Simplex, duplex and quad adapters are available in plastic without flange, and in horizontal and vertical mount type. All come with a choice of zirconia split sleeves (diagonal or straight split options avilable) or with phosphor bronze straight split sleeves.



E2000 Fiber Optic Adapter Features

  1. Insertion loss <0.2dB
  2. 100% test in factory
  3. Durability >1000 times
  4. Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
  5. Plastic ABS/PBT body, light weight, durable
  6. Stainless steel mounting clips allow for easy snap in installation
  7. Ceramic alignment sleeve supports Single mode applications

Specification

Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC



≤0.2dB

Storage Temperature

-40ºC to +85ºC



≤0.2dB



E2000 Adapter Dimension



E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel 0

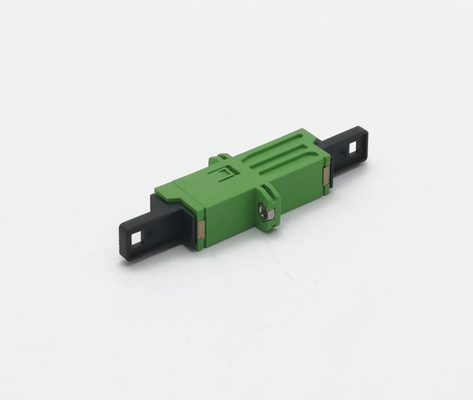

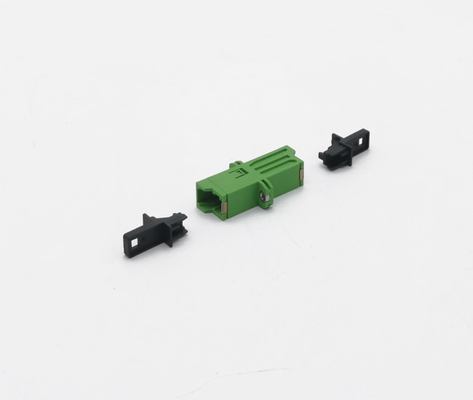

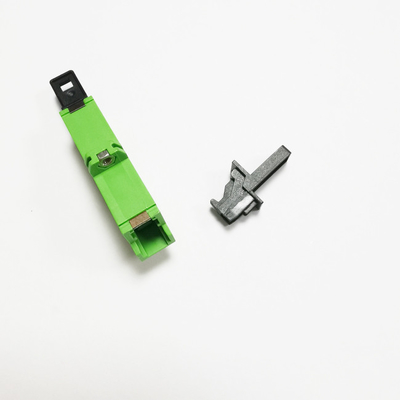

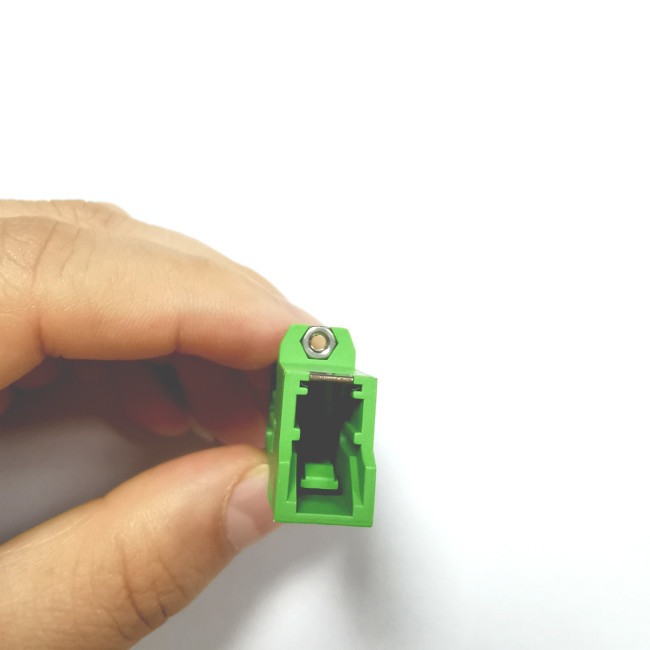

Product picture



E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel 1E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel 2E2000/APC Simplex Singlemode Fiber Optic Adapter With Flange For Patch Panel 3
