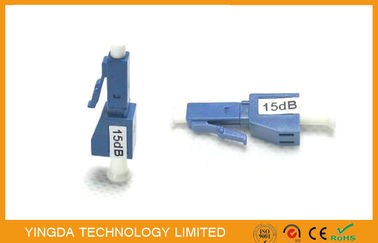

Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator

  • Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator
  • Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator
  • Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator
  • Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator
  • Single Mode Female To Male Fiber Optic Attenuator 15dB , LC Build Out Attenuator
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number ATTN-LCS1-10
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 pc / plastic bag
Delivery Time 5 working days after received your payment
Payment Terms T/T or western Union
Supply Ability 500,000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

build out attenuator

,

inline optical attenuator
Leave a Message
Product Description

Fiber Optic LC Female To Male Attenuator, LC Build Out Attenuator Single Mode15dB



Features

Conforms to GR910

Simple use,low PD,High RL

With-stand high power



Unique Service

  1. SAMPLES for quality testing are available
  2. 3working days leading time if order quantity < 100pcs
  3. Quality complaint will handle in 24 hours by our After-sales Service Dept
  4. 1pcs per bag
  5. OEM/ODM, customer LOGO or label available.



Description

Fiber optic attenuator, as a kind of optical passive components, used in optical communication

system to debug the optical power performance,optical instrument calibration correction and fiber

optic signal attenuation. Products use attenation fiber which mixed with metal ions, it can adjust

the light power to the required level.



Application



  • EDFA power amplifier
  • Power balance in the system
  • CATV
  • WDM power regulation



Specification

Item

standard

flat

broadband

Wavelength(nm)

1310 or 1550

1310 or 1550

1310 and 1550

Bandwidth(nm)

±20

±40

±40

Attenuation(dB)

1 ~ 30dB can be specified

Attenuation accuracy(dB)

0.5

Return loss(dB)

≥40

Working temperature(℃)

-40~+70

Storage temperature(℃)

-40~+85
