YINGDA Supply Duplex Fiber Optic Adapter Assembly Type LC APC Coupler

Place of Origin china
Brand Name YINGDA
Certification ISO,SGS
Model Number AD-LC/APC-DX
Minimum Order Quantity 500pcs
Price Negotiable
Packaging Details 50 pc / box
Delivery Time 5 working days
Payment Terms T/T or western Union
Supply Ability 200km/ month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count Duplex Connector Material Plastic
Adapter Color Agree Sleeve Material Ceramic
Fiber Type Single Mode Polish Mode APC
Working Temperature -40 ~ +80 °C Wavelength 1350
Appliction Adapter Panel, LGX Panel, Rack Mount Panel
High Light

Duplex Fiber Optic Adapter

,

LC APC Fiber Optic Adapter

,

Assembly Type LC APC Coupler

Leave a Message
Product Description

LC Multimode Adapter Coupler Duplex Ceramic Ferrule, LC Fiber Adaptor





Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

 inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.



Adapter Structure

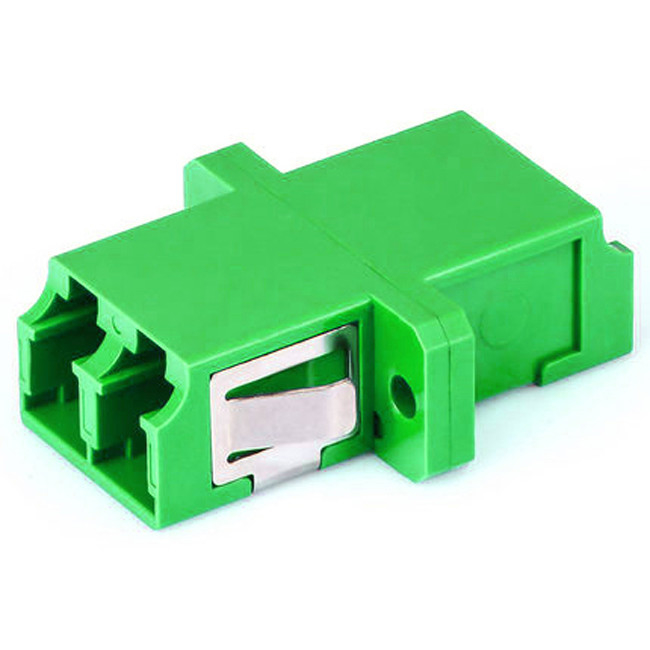

YINGDA Supply Duplex Fiber Optic Adapter Assembly Type LC APC Coupler 0



Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall





Application

  • CATV network, FTTH, Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



  1. Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
  5. Polish: UPC PC APC SPC

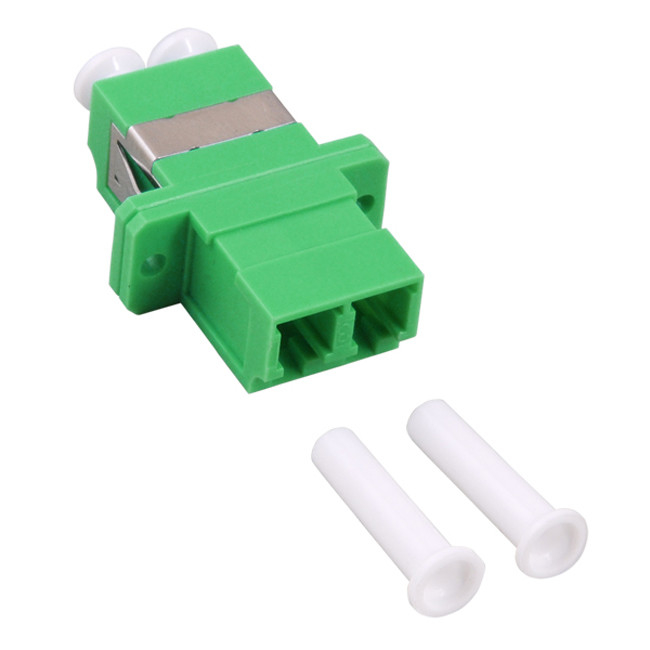

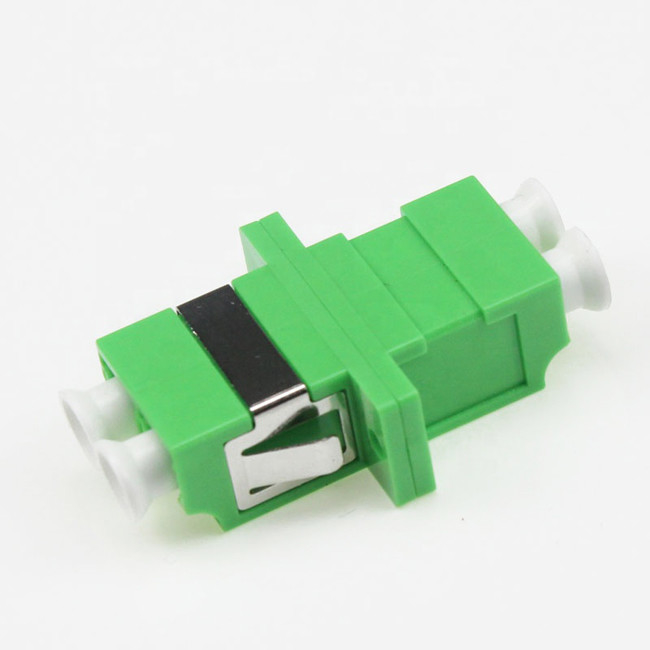

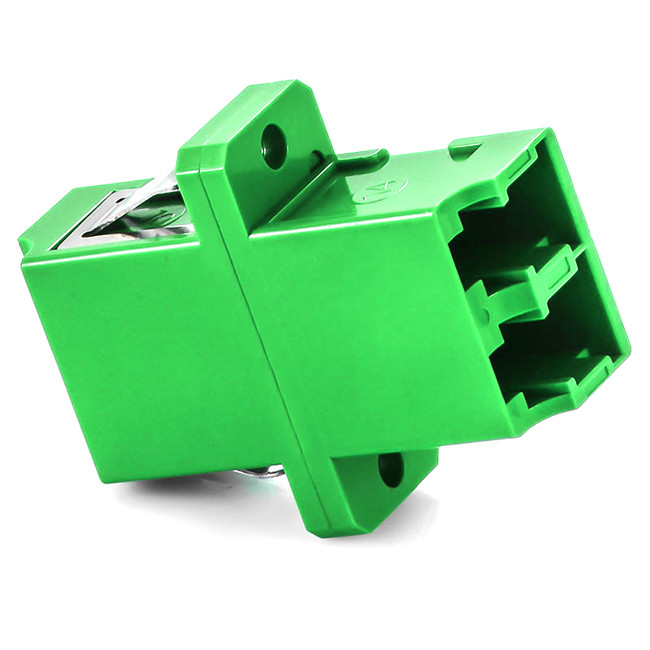

YINGDA Supply Duplex Fiber Optic Adapter Assembly Type LC APC Coupler 1YINGDA Supply Duplex Fiber Optic Adapter Assembly Type LC APC Coupler 2YINGDA Supply Duplex Fiber Optic Adapter Assembly Type LC APC Coupler 3
