SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange
  • name
  • name
  • name
  • name

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange

MOQ: 100PCS
Price: 0.04USD-2.15USD
Standard Packaging: 25pcs/box
Delivery Period: 5-8 working days
Payment Method: T/T, Western Union
Supply Capacity: 200K per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
YDAD-SCA01-SP04GR
House Material:
ABS
Color:
Green
Fiber Count:
1 Core / Single Fiber
Sleeve Material:
Ceramic / Zironic
Fiber Type:
Single Mode
Flange:
No Flange
Shutter:
Auto Inner Shutter
Polish Mode:
APC
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

SC APC Fiber Optical Adapter

,

Inner Shutter Fiber Optical Adapter

,

SM SX Fiber Optic Adapter

Product Description

Supply SC/APC SM SX Fiber Optical Adapter Auto Inner Shutter Without Flange





Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic cords.



By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and re-production ability. And each fiber optic adapter is 100% functionally tested before shipping.

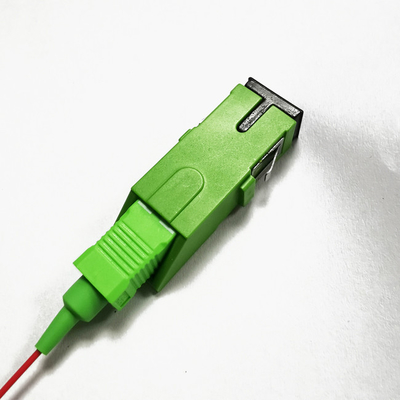

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 0

Features

  • SC simplex plastic adapter with metal clip
  • Slotted ceramic guide sleeve for single mode applications
  • With a laser protection shutter and dust protection cap
  • High material stability,surface quality and durability
  • Durability min 1000 mating cycles with a ceramic guide sleeve



Specification

Item SC Adaptor
Fiber type SM MM
Polish method PC UPC APC PC
Insertion loss ≤0.2dB ≤0.2dB ≤0.2dB ≤0.2dB
Alternation loss ≤0.2dB
Repeatability ≤0.2dB
Durability 1000 mating times<0.2dB

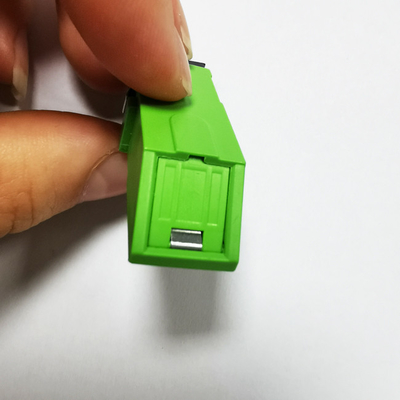

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 1

Applications

² Telecommunication Networks

² Local Area Networks (LANs)

² Communication System

² Premise Installations

² Wide Area Networks (WANs)

² Video Transmission

² Connections Between Patchcords

² FTTX, CATV

² Connections Between Devices



Environment and Mechanical Properties

Item Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability

1000 Mating, clean every

25 mating

 IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB

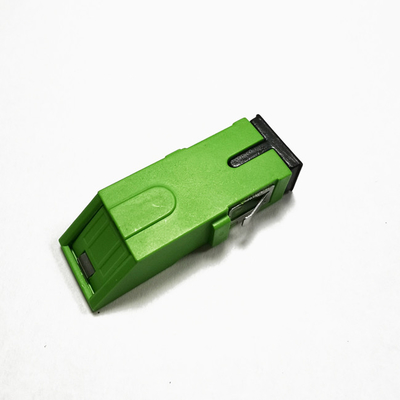

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 2SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 3

Order information: YDAD-CF-SMEDH

YDAD - C=Connector type F=fiber count - S=Shutter type Material E=Flange/ear type D=dust cap H=House color

YD=yingda

AD=adapter



SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

FCA=FC/APC

LCU=LC/UPC

LCA=LC/APC

...

01=simplex

02=duplex

04=quad



S=side shutter

F=front shutter

N=inner shutter

P=plastic

M=metal

0=without flange

1= with flange

1=transparent cap

2=black flat

3=green flat

4=T-shaped gourd cap

5=Notched flat cap

BL=blue

GR=green

BE=beige

AQ=aqua

VI=violet

Xx=Other

For example: YDPC-SCA01-FP02GW

Front shutter adapter SC/APC with laser mark, half white half green, green dust cap single mode, ceramic sleeve





SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 4

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 5

SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 6SC APC SM SX Fiber Optical Adapter Auto Inner Shutter No Flange 7
