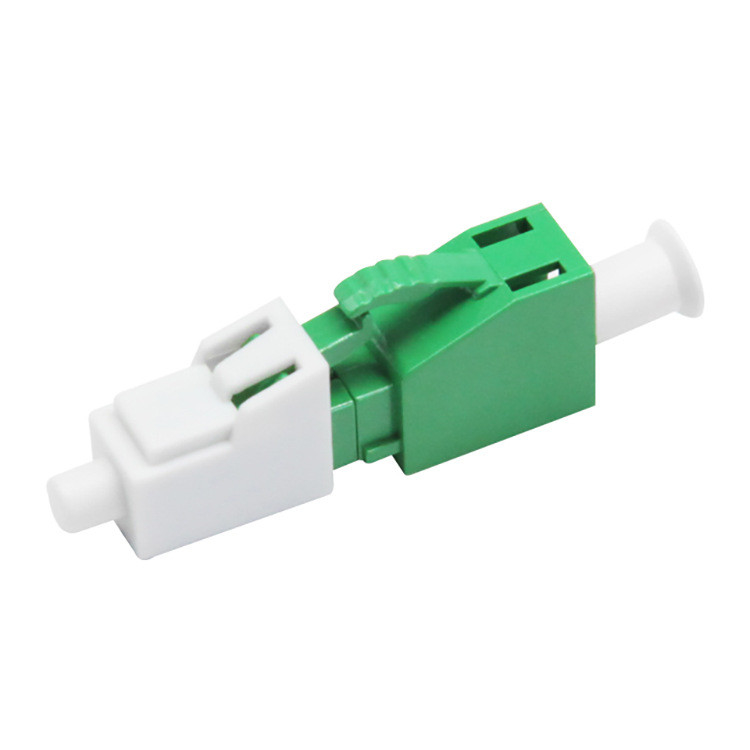

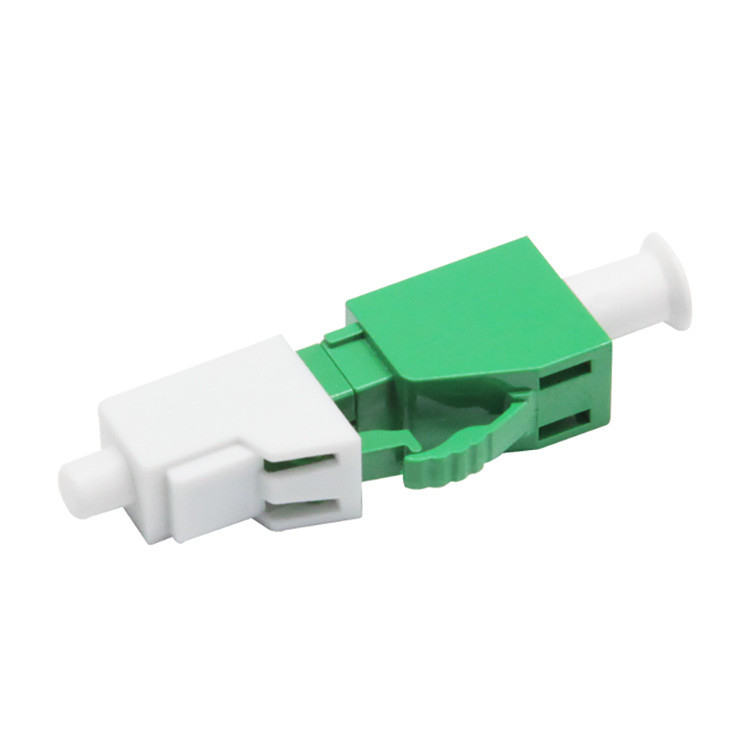

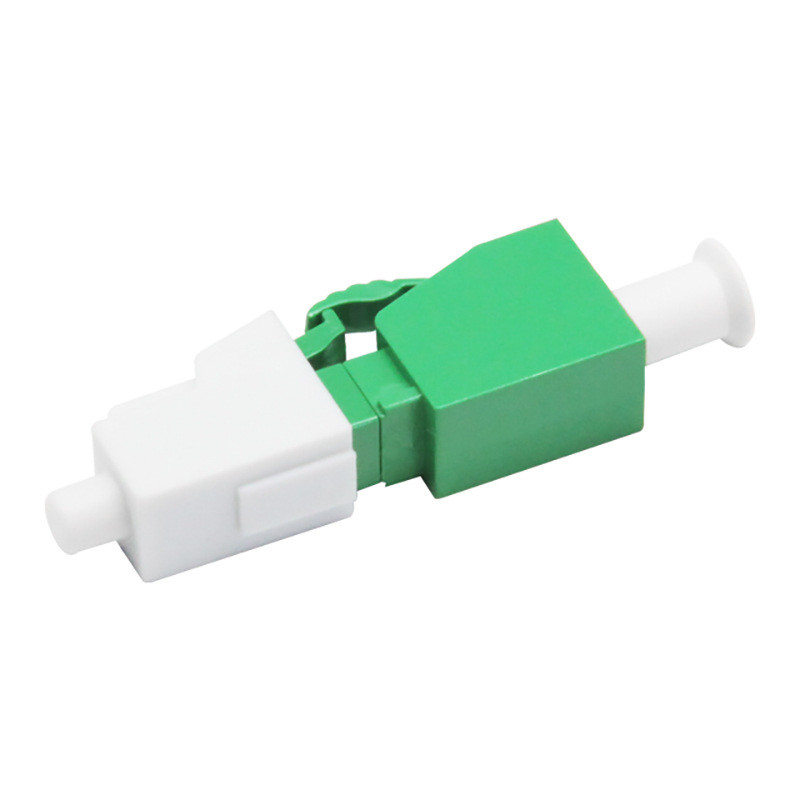

LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation
  • name
  • name
  • name

LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation

MOQ: 100PCS
Price: Negotiable
Standard Packaging: 1 pc / plastoc bag
Delivery Period: 3-5 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ATTN-LCA-01-B05
Attenuation:
1dB - 30dB Fix
Test Wavelength:
1310nm, 1550nm
Body Material:
Plastic
Additional Loss:
0.1dB
Working Temperature::
-40～+85 (℃)
Fiber Optic Type:
Single-mode, Multimode
Industry Standard:
Telcordia TA-NWT-001209
Connector Type:
LC/APC
Color:
Dust Cap: White, Connector Body: Green
Connector Shape:
Female To Male Attenuator
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Highlight:

LC APC Optical Attenuator

,

30dB Optical Attenuator

,

Green Fixed Optical Attenuator

Product Description

LC/APC Optical Attenuator Male to Female Fiber Optic Attenuator





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

 attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB＜±0.5 dB

5-10dB＜±10%

11-25dB＜±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃～+75℃





LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation 0LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation 1LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation 2LC APC Green Optical Attenuator Male To Female 1dB - 30dB Fix Attenuation 3





Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

O
O*x
Indonesia Feb 7.2025
Helpful (3)
Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%
D
D*e
Venezuela Sep 26.2022
Helpful (24)
All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
M
Mini Type Dome Fiber Optic Splice Closure for 48 Fiber Cable Joint closure
Turkey Jan 28.2022
Helpful (2)
The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
Tags:

build out attenuator,

inline optical attenuator,

optical fiber attenuator
