8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 20pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union,T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTPC-24F-M
Connector:
MPO MTP LC Connectors
Fiber Count:
8fibers MPO, 12fibers MPO
Application:
Data Center
Cable Length:
0.35meter In Box, Outside Customized
Cable Diameter:
12 Color Pigtails 900um
Fiber Type:
OM3 10G Multimode Cable
Highlight:

Multimode Cable MPO Cassette Module

,

Data Center MPO Cassette Module

,

G657A2 fiber cassette module

Product Description

12 24 Fibers Optical MTP MPO Module Cassette G657A2 LSZH Hydra Cable Assembly APC


The MPO cables we supply are not only of high quality, but also of huge output. Therefore, we have a large stock of MPO cables for data centers. Welcome to buy them.

MPO MTP fiber optical Connectors Specification


Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300


LC SC FC fiber optic connector Specification

Fiber mode Single mode
Multi mode
Connector polishing Pc Apc Pc
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850

8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 0

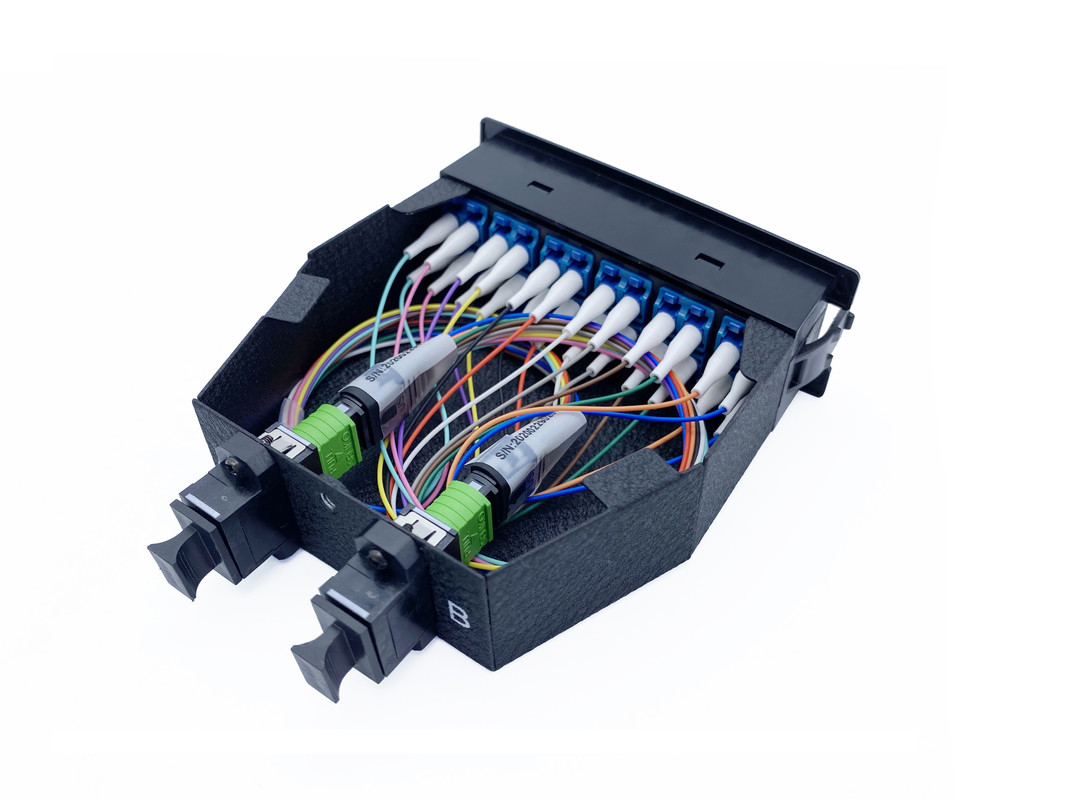

24Fiber MPO cassette use 2pcs MPO adapters A B, and in front of the adapter panel, there is  A 1-12, B 13-24 number mark;

Easy to operate and distinguish during on-site construction.

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 1

MPO top and bottom side is the same, can paste stickers of logo, part number, etc.

the cover is locked on bottom with 1*screw.

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 2

Fully configuration can be done in our factory with patch cord, adapters, etc.one-stop fiber optic suppliers, which save construction time and money.

8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 38 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 4

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH OM3 10G Multimode Cable For Data Center 5

no need screws or other tools to install the modular on the patch panel, fast and easy to operate.

------------------------------------------------------------------------------------------------------------------------------------------

24 Fiber MPO cassette Application

  • Data Centre Infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 & 100Gps Protocols
  • Parallel optics
