Fiber Optic Termination Box
Created with Pixso. Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

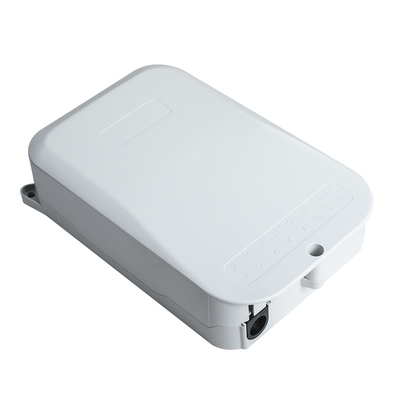

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Brand Name: yingda
Model Number: FTB016A
MOQ: 100 pcs
Price: 0.18USD-4.29USD
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, ROHS, SGS
Material:
ABS+PC
Color:
Gray
Product Name:
Fiber Optic Box
Application:
Ftth Indoor Use
Installation:
Wall Mount
Drop Cable Size:
2*3 Mm Flat Drop Cable
Adapter Qty:
16 Pcs SC With Shutter Adapter
Splitter Qty:
2pcs 1x8 Steel Tube Splitter
Waterproof Grade:
IP55
Box Type:
Fiber Optic Terminal Box
Packaging Details:
1 pc / carton box, 20 pcs / master box
Highlight:

FTTH Fiber Optic Cable Termination Box

,

IP55 Fiber Optic Cable Termination Box

,

Wall Mount fiber optic terminal box

Product Description

Ftth Indoor Wall Mount Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55



This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



16 port Fiber Optic Splice Box Specification

Model FTB016A
Dimension (W*D*H) 220*140*55mm
Max.Capacity 16 core (dual fiber)
Cable ports 2 in, 16out
Cable diameter In:Φ13mm; out 2x5mm
Splitter quantity 2pcs 1x8 or 1pc 1x16 PLC steel tube
Splice tray quantity 2pcs
Adapter 16 SC

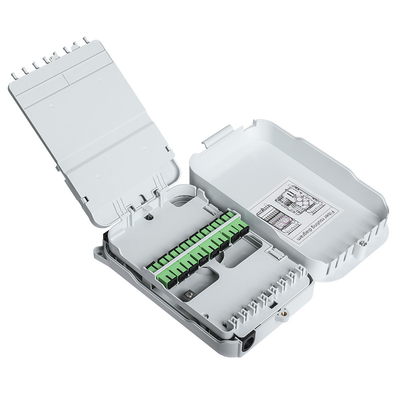

Plastic Optical Fiber Enclosure Features

  • Dust proof, RoHS proof with IP-55 protection level
  • Integrated with 2 splice cassette and cable management rods.
  • Manage fiber in a reasonable fiber radius condition
  • Easy to maintain and extend the capacity
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • Large area for efficient cable management and storage

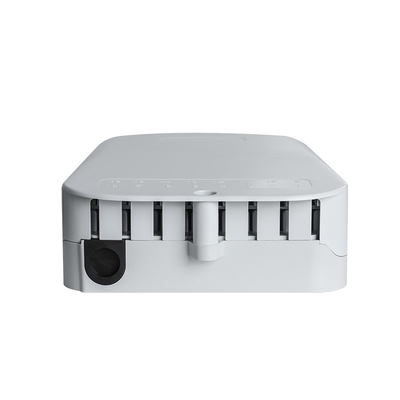

  • 16 ports exit for drop cable 2*5mm
  • 2pcs 1:8 or 1pc 1:16 splitter with steel tube slots on the bottom
  • Distribution cable can go through the box without cut, best choice for ftth indoor construction.

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 0





Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 1





Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 2



Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 3



Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 4

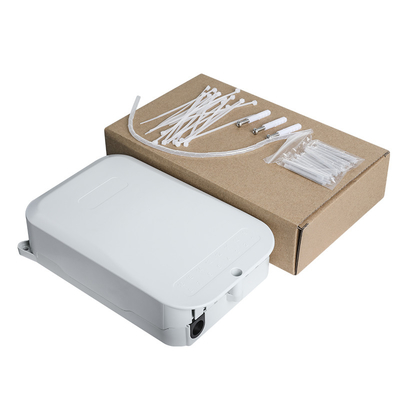

Fiber Optic Splitter Box Standard Accessory:

wall mount kits, heatshrink protection tube,nylon tie, sprial tube for 900um fibers,etc

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 5





Fiber Optic Cable Terminal Box Pack information

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
561g cm 20pcs 49*32*33cm 10.55kg



Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 6

Uncut Optical Fiber Cable Box Installation Method; WALL MOUNT

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 7
