Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

  • High Light

    FTTH Fiber Optic Cable Termination Box

    ,

    IP55 Fiber Optic Cable Termination Box

    ,

    Wall Mount fiber optic terminal box

  • Material
    ABS+PC
  • Color
    Gray
  • Product Name
    Fiber Optic Box
  • Application
    Ftth Indoor Use
  • Installation
    Wall Mount
  • Drop Cable Size
    2*3 Mm Flat Drop Cable
  • Adapter Qty
    16 Pcs SC With Shutter Adapter
  • Splitter Qty
    2pcs 1x8 Steel Tube Splitter
  • Waterproof Grade
    IP55
  • Box Type
    Fiber Optic Terminal Box
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO, ROHS, SGS
  • Model Number
    FTB016A
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / carton box, 20 pcs / master box
  • Payment Terms
    T/T, Western Union

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Ftth Indoor Wall Mount Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55



This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



16 port Fiber Optic Splice Box Specification

Model FTB016A
Dimension (W*D*H) 220*140*55mm
Max.Capacity 16 core (dual fiber)
Cable ports 2 in, 16out
Cable diameter In:Φ13mm; out 2x5mm
Splitter quantity 2pcs 1x8 or 1pc 1x16 PLC steel tube
Splice tray quantity 2pcs
Adapter 16 SC



Plastic Optical Fiber Enclosure Features

  • Dust proof, RoHS proof with IP-55 protection level
  • Integrated with 2 splice cassette and cable management rods.
  • Manage fiber in a reasonable fiber radius condition
  • Easy to maintain and extend the capacity
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • Large area for efficient cable management and storage
  • 16 ports exit for drop cable 2*5mm
  • 2pcs 1:8 or 1pc 1:16 splitter with steel tube slots on the bottom
  • Distribution cable can go through the box without cut, best choice for ftth indoor construction.

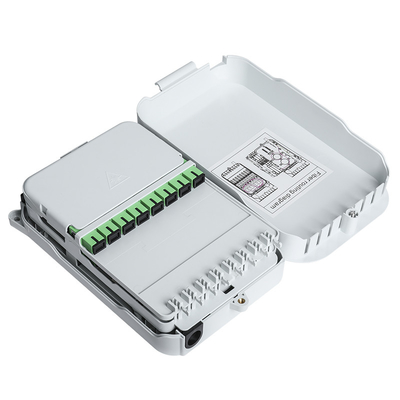

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 0

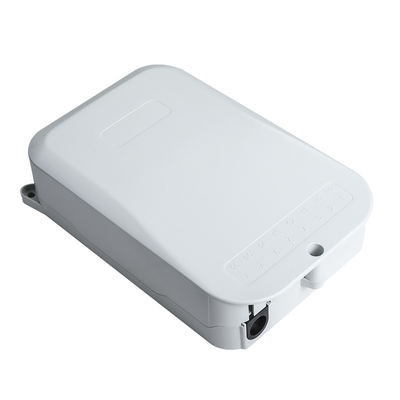

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 1

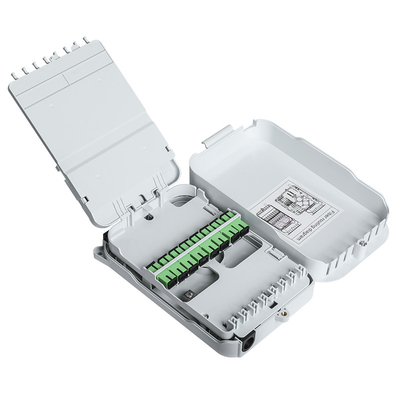

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 2

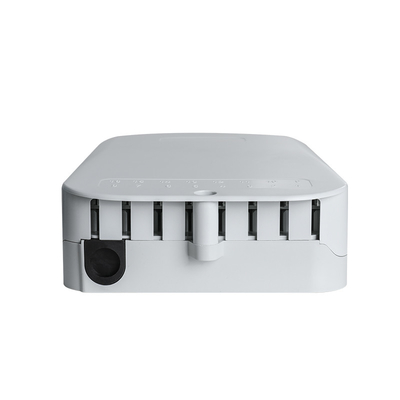

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 3



Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 4

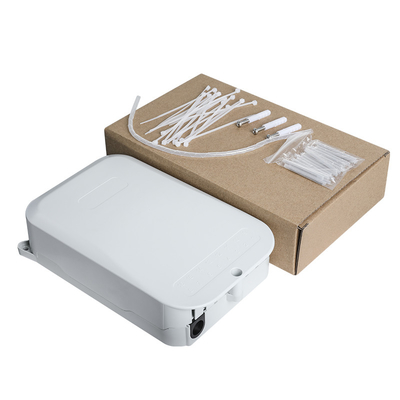

Fiber Optic Splitter Box Standard Accessory:

wall mount kits, heatshrink protection tube,nylon tie, sprial tube for 900um fibers,etc

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 5





Fiber Optic Cable Terminal Box Pack information

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
561g cm 20pcs 49*32*33cm 10.55kg



Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 6

Uncut Optical Fiber Cable Box Installation Method; WALL MOUNT

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount 7
