New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable

MOQ: 500PCS
Price: 0.18USD-4.29USD
Standard Packaging: 1pc/box, 60pcs/carton box
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram,L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FTB008
Features:
Laser Mark, OEM , 2 Removable Cover
Material:
ABS+PC
Color:
Gray
Cable Port:
2in 8out
Fusion Capacity:
8 Cores
Splitter:
1x2,1x4,1x8 Mini Splitter
Connector:
SC APC
Input Diameter:
12 Mm
Output Diameter:
2.0*3.0mm, 2.0*5.0mm Ftth Drop Cable
Application:
Indoor Wall Mounted
Highlight:

FTTH 2 port fiber termination box

,

IP65 fiber optic splitter box

,

FTTH cable storage termination box

Product Description

New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box  Support Storage Cable



FAT-506F series indoor fiber termiantion boxes are designed and manufactured to endure harsh environmental conditions. Our fiber termination boxes are specially built to accommodate various amounts of pre-connectorised connectors for your fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-curb (FTTC) project. And the pre-connectorised connectors are easy to be connected by the drop cables. It is suitable for wall mounting.



2,Specification:
1) Water-proof design with IP65 Protection grade.
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
4) Fiber bend radius control more than 35mm.
5) 1 uncut cable port for feeder cables.



3,Applications
1) FTTH access network
2) Telecommunication network
3) CATV networks
4) Data communications network
5) Local area networks



Specification:


Model FAT-506F
Size (Pic 1) H×W×D = 232×224×74 (MM)
Material PC+ABS
Color Light Gray
Adapter Type 1SC Simplex or duplex
Cable Port 2 Pcs
Installation Method Wall Mounted




Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.


  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • User manual
  • Adapters or plc splitter


Sell point:



 New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable 0

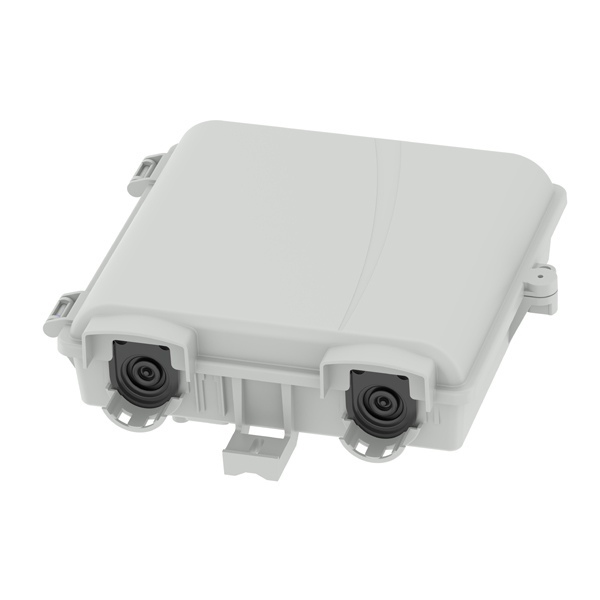

With 4pcs cable entry ports,  designed for flat and round cable entry,Variable cable entry  for round or flat drop cable (round OD: 3mm to 16.2mm​, flat cable OD: 2mm to 8.1 x 4.5mm).

New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable 1

Removable adapter holder and splice tray, support equiped 1pc adapter, 6pcs adapter and 6pcs duplex adapter


New Design FTTH 2 Port Fiber Termination Box IP65 FTTH Splitter Box Support Storage Cable 2

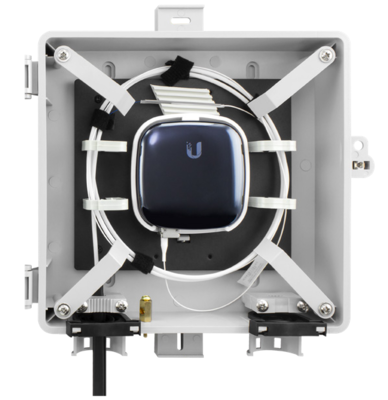

The box internal with 4 cable clamps around 4 corners, large space for cable winding inn the box, and reasonable bend rasius for cable go through the box, and internal can be preconnectorized SC pigtails or patch cords docking, there is 1 SC simplex or SC duplex coupler in the middle.
