1 SC Adapter Fiber Wall Socket For Intelligent Building, Fiber Optic Termination Box

MOQ: 500pc
Price: 0.18USD-4.29USD
Standard Packaging: 100pcs/box
Delivery Period: 7days
Payment Method: T/T,L/C,Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FTB86Z
Material:
ABS
Color:
White
Max Capacity:
1core
Fiber Type:
Singlemode Multimode
Dimension:
86*86*22mm
Adapter:
1 SC Or LC Duplex
Cable Type:
Indoor Cable Or Flat Cable
Application:
Ftth Indoor Network
Mounting Way:
Wall Mount With Screw
Highlight:

1 SC Adapter Fiber Wall Socket

,

Fiber Wall Socket IP20

,

ABS Fiber Optic Termination Box

Product Description
FTB86Z Fiber Wall Outlet



The Fiber Wall Outlet is a ftth socket panel in access termination point of the optical network, it use direct connection or fusion splice in a pre-termination pigtails. It can be installed on the wall, and install 1pc LC or SC adapter. This outlet is special stepped sliding design, not clip or screws, easy to open and close.




Specification



Model FTB86Z
Dimension (H*W*D) 86*86*22mm
Max.Capacity 1core (single fiber)
Cable type FTTH Flat/ indoor cable
Adapter 1SC
Color white
Protection level IP20
impact protection IK01



Features

  • High quality engineering plastic,new materials, white color;
  • It can be installed on any vertical flat surface on wall;
  • Compact size, light weight, special design;
  • The surface adopts step sliding design, non planar;
  • Capacity to store long length of pigtails with 0.9mm diameter;
  • Cable entry from bottom hole, side or front;
  • Non-smooth cover, humanity embedded wall design;
  • Universal SC adapter, convenient and quick construction.



Sells points:



Support OEM service

Fast delivery

New Design

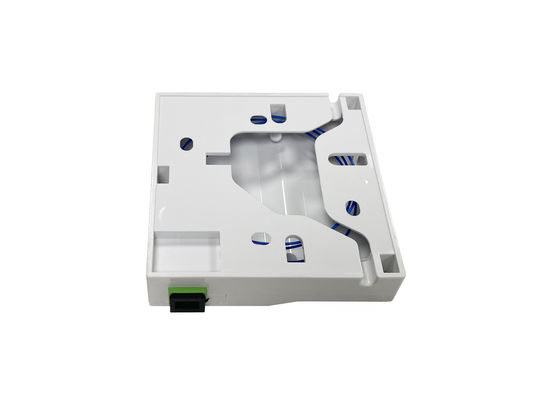

1 SC Adapter Fiber Wall Socket For Intelligent Building, Fiber Optic Termination Box 01 SC Adapter Fiber Wall Socket For Intelligent Building, Fiber Optic Termination Box 1

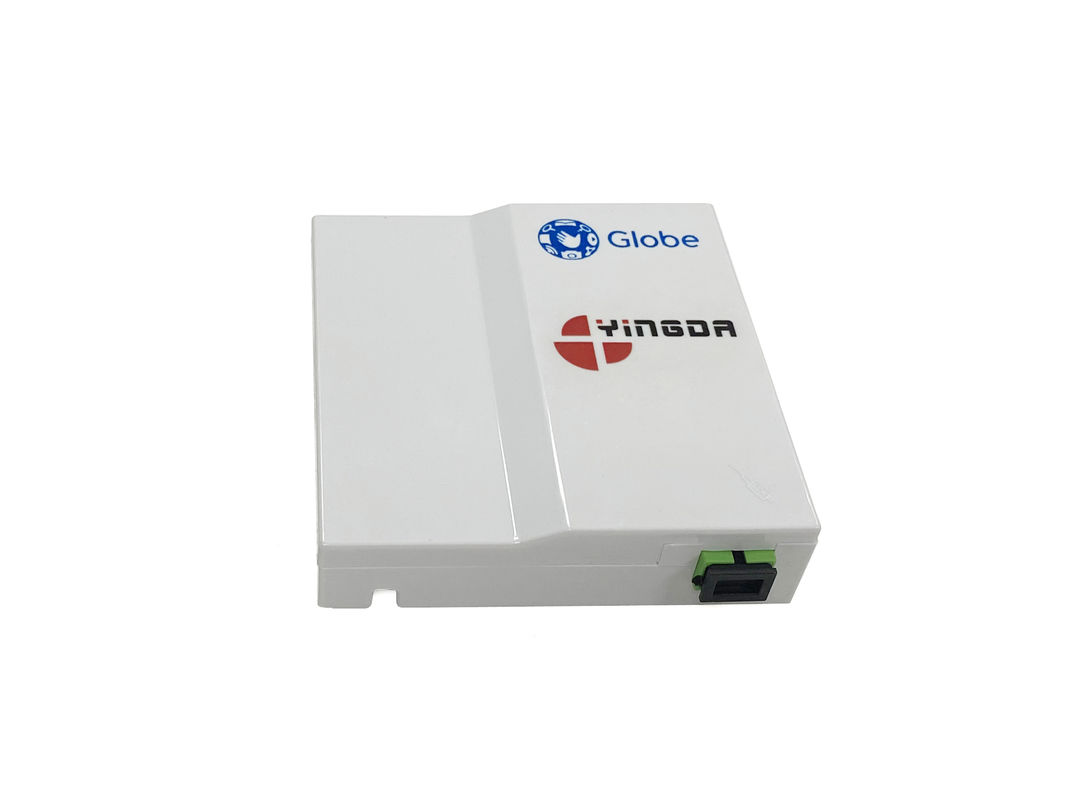

At top of the box, there is logo print reserved position with paper block if no need, and we can open 2 screws to fix the cover and bottom to make it more safe, then without screw driver, can not open the box by hand. details pls see above picture.





Application



FTTH internal environment wall mount



Standard accessories



2pcs fixing screws, 2pcs screws for closing the cover, 2sleeve, heat shrink sleeve slot(optional), adapter(optional), pigtail(optional)



Buy it together:

Adapter:https://www.fibreopticbox.com/sale-4042492-fiber-optic-flange-adapter-sc-apc.html

Pigtail:https://www.fibreopticbox.com/sale-36863216-sc-apc-fiber-optical-pigtails-lszh-900um-sm-ceramic-ferrule-for-splitter-box.html

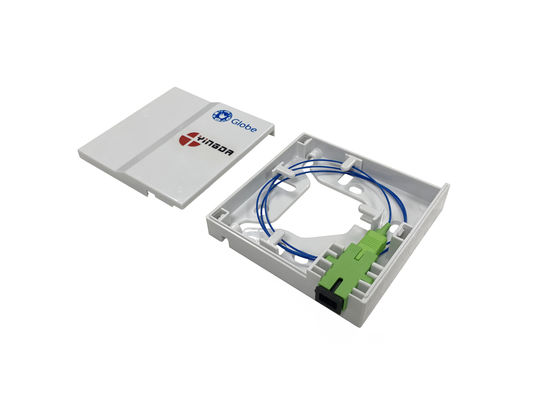

1 SC Adapter Fiber Wall Socket For Intelligent Building, Fiber Optic Termination Box 2

1 SC Adapter Fiber Wall Socket For Intelligent Building, Fiber Optic Termination Box 3
