1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof

1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof

  • High Light

    1x16 Splitter Fiber Optic Distribution Box

    ,

    Waterproof ftth distribution box

    ,

    Waterproof Fiber Optic Distribution Box

  • Material
    ABS+PC
  • Dimension
    290*210*82mm
  • Cable Entry
    2 Cable Glands, 1 Uncut Ports
  • Cable Exit
    16 Round Ports For Drop Cable
  • Protection Level
    IP65
  • Max Capacity
    16 Cores
  • Splitter Type
    2pcs 1x8 Or 1x16 LGX Splitter Module
  • Place of Origin
    china
  • Brand Name
    Yingda
  • Certification
    ISO, CE, ROHS
  • Model Number
    FDB0216H-C
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs/carton box
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    15000pcs

1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof

1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof



1x16 Splitter Module Pole Mounted FTTH Fiber Optic Cable Termination Distribution Box



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Specification

Model FDB0216H-A FDB0216H-B FDB0216H-C
Dimension (A*B*C) 290*210*82mm
Cable entry 1 uncut port, 2 cable glands:ᴓ12.5-15 mm
Cable exit 16pcs 2x3mm round ports
Max.Capacity 24core 16cores 16cores
Adapter quantity 16SC 18SC -
Splitter quantity 2pcs 1x8, or 1pc 1x16 mini splitter 2pcs 1x8 mini splitter 2pcs 1x8 or 1pc 1x16 LGX splitter
Waterproof grade IP65
Material PC+ABS
Color black

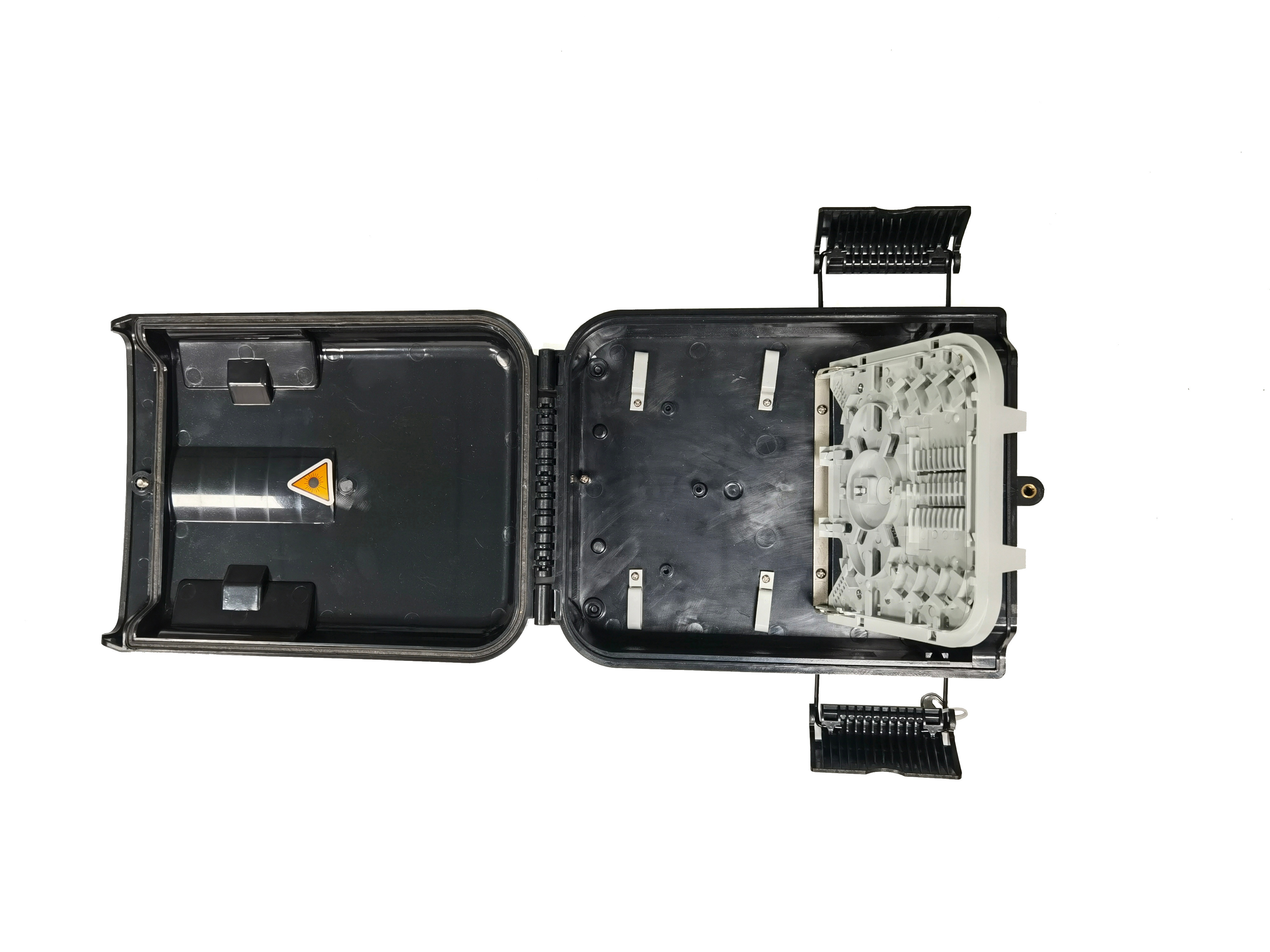

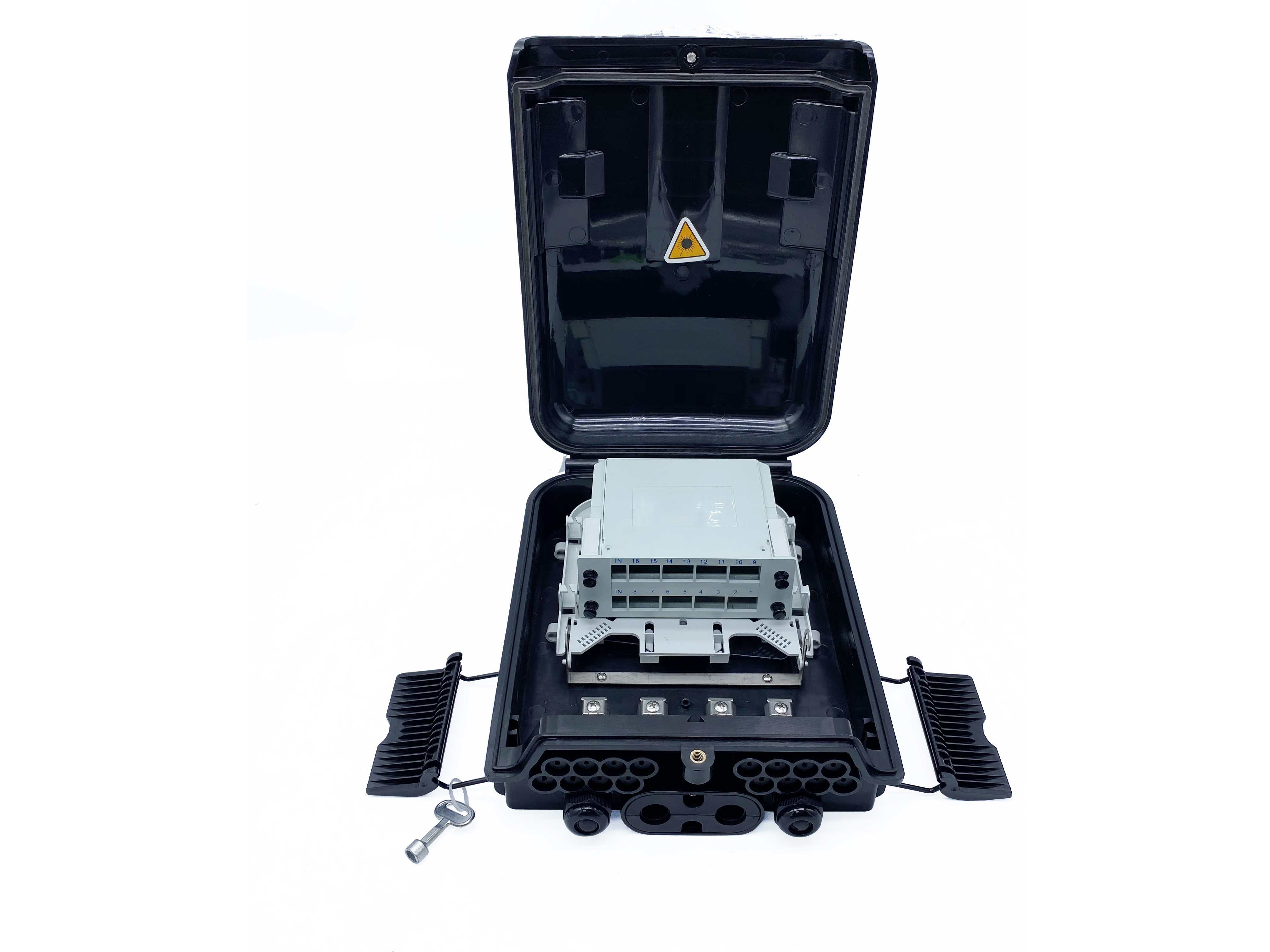

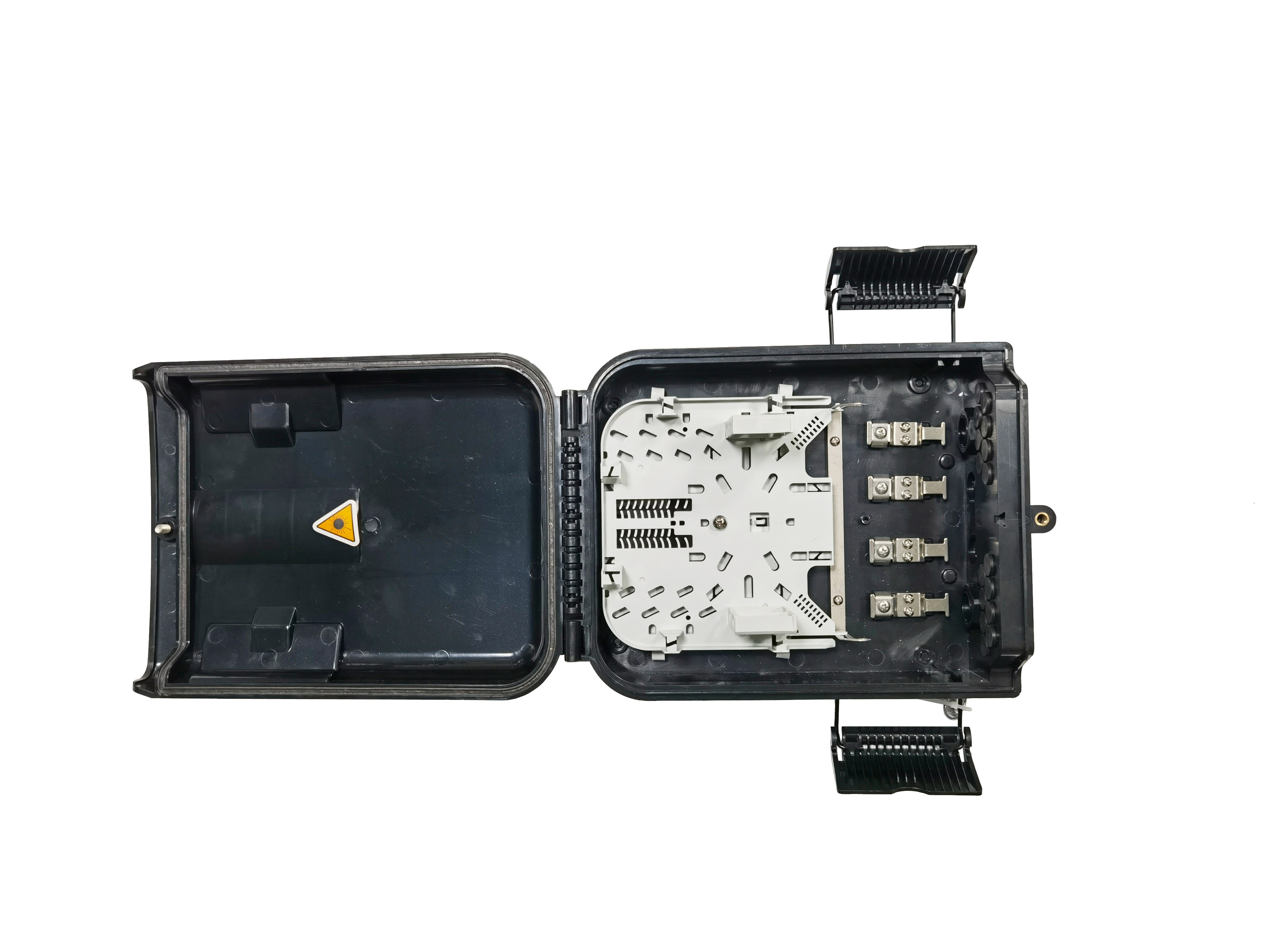

1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof 01x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof 11x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof 21x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof 3

Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.

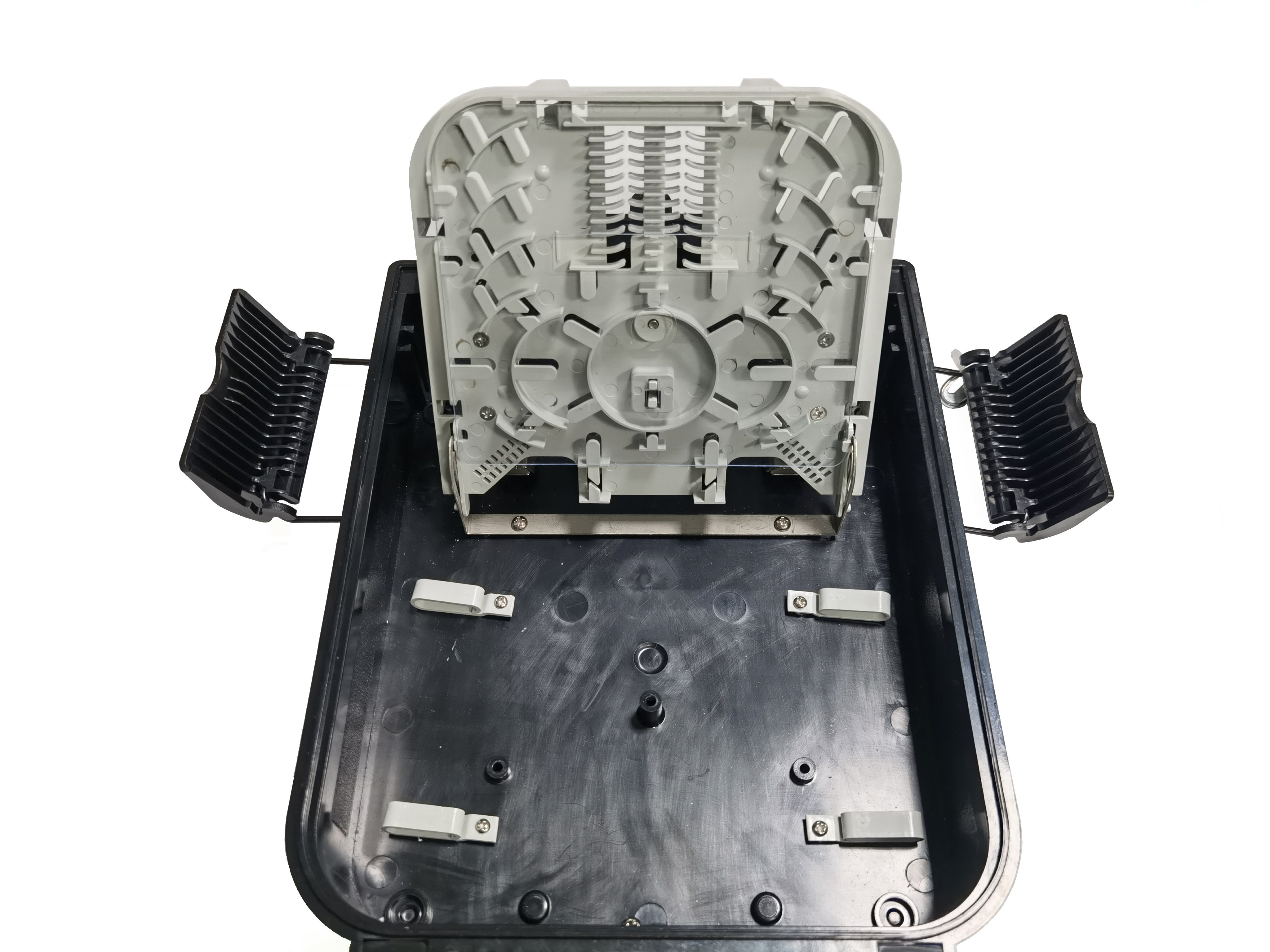

  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

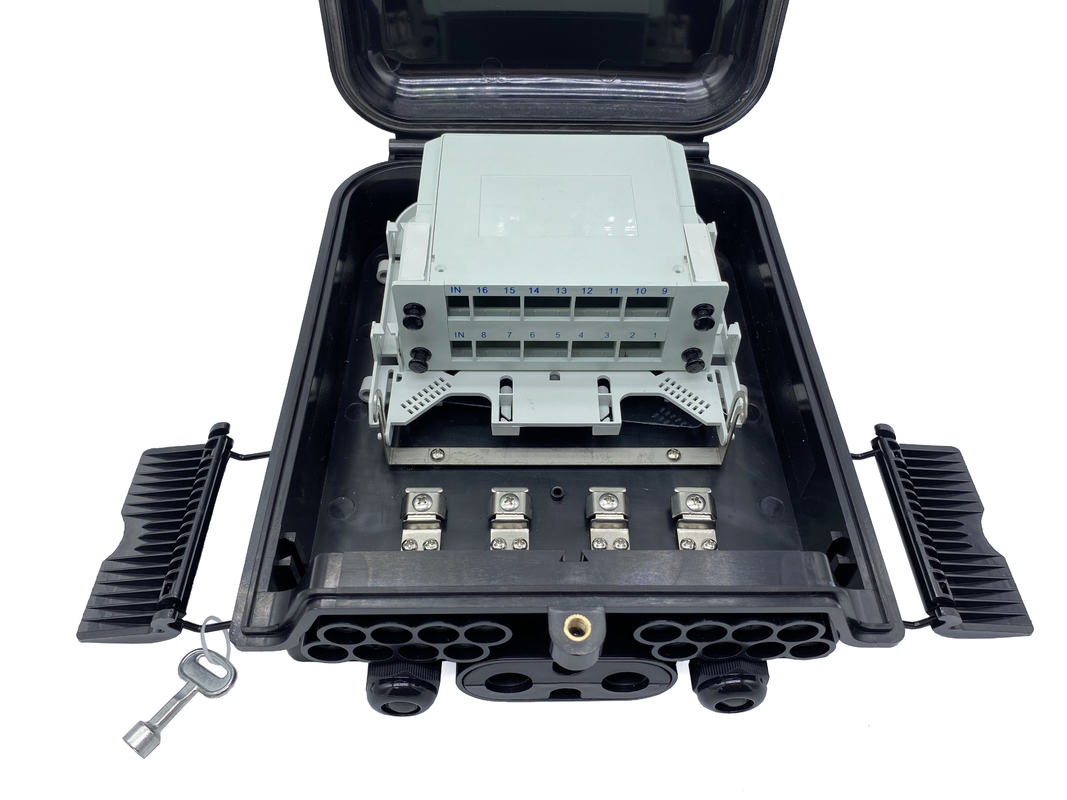

1x16 Splitter Fiber Optic Distribution Box 24 Core IP65 Waterproof 4
