Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network

MOQ: 1pc
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / carton box, 10 pcs / master box
Delivery Period: 5-8days
Payment Method: T/T, Western Union
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, ROHS, SGS
Model Number
CTO-16L
Material:
ABS+PC
Color:
White/Grey
Dimension:
306*237*116mm
Application:
Ftth Splitter Box
Installation Method:
Wall Mount, Pole Mount Enclosure
Box Type:
Fiber Optic Distribution Box
Splitter Qty:
2pcs 1:8 Splitter Or 1pc 1:8 Splitter
Cable Outlet Port:
16 Pcs Fast Mini SC Adapters
Adapter Qty:
16pcs
Use For:
Indoor And Outdoor
Waterproof:
IP65
Cable Inlet:
1 Mid Span, 2pcs PG13.5 Cable Glands
Highlight:

mini SC Fiber Optic Splitter Box

,

16ports Fiber Optic Splitter Box

,

Telecommunication Network Fiber Optic Splitter Box

Product Description

CTO-16L Optical Splitter Distribution Box



CTO-16L Optical Splitter Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system, max 16 households end termination. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, huawei mini sc adapters, corning opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.

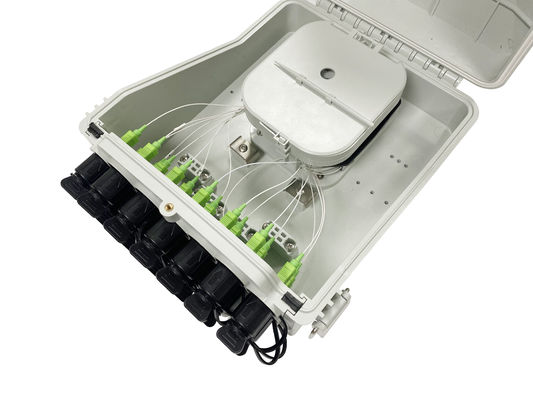

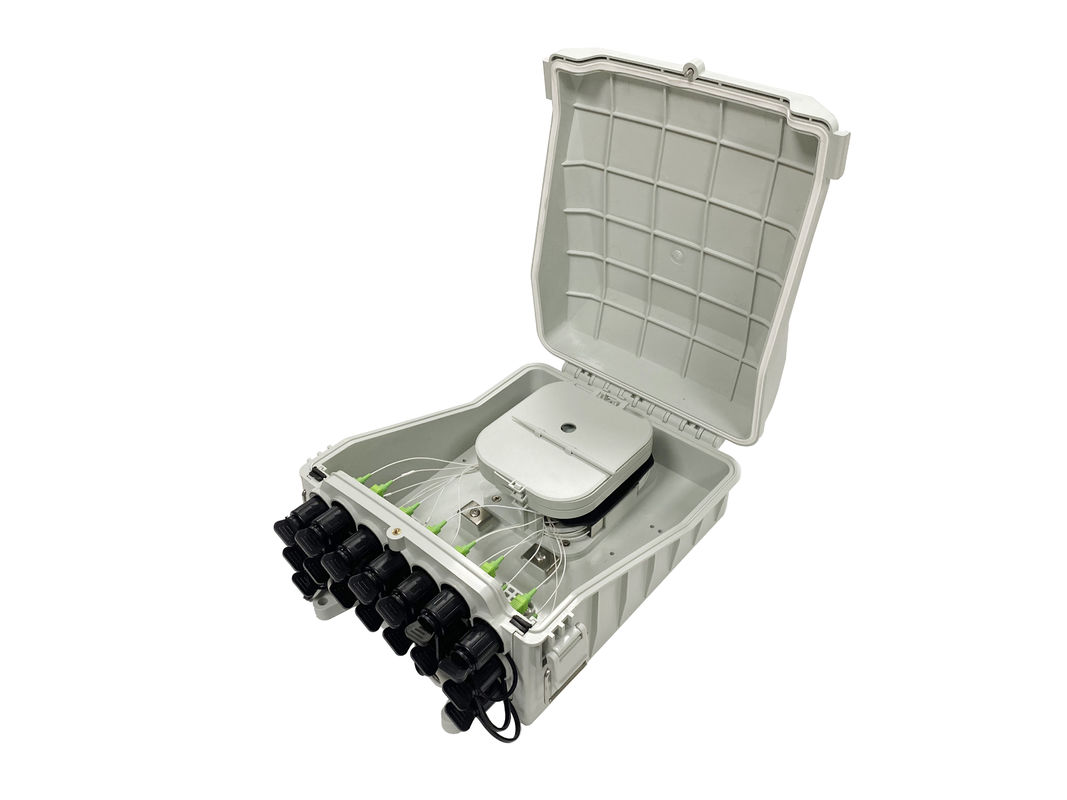

Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 0Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 1

16 Port Fiber distribution box is with 16pcs Mini SC adapters in front panel, with the same 1 mid span cable entrance, internal is splitter holder in the bottom max. 2pcs 1×8 or 1pc 1×16 mini splitter and 2splice trays upwards for single fiber fusion splice, maximum 24cores. Outdoor wall mount, pole mount application.





Features



Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​

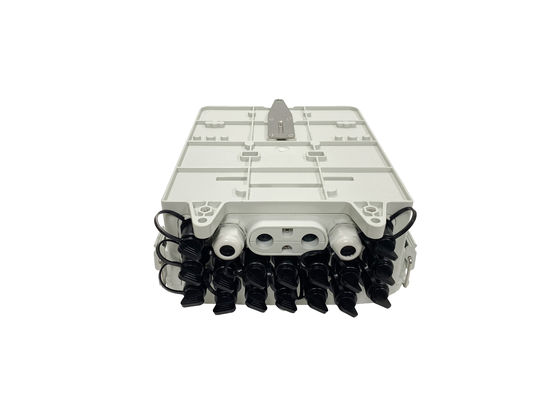

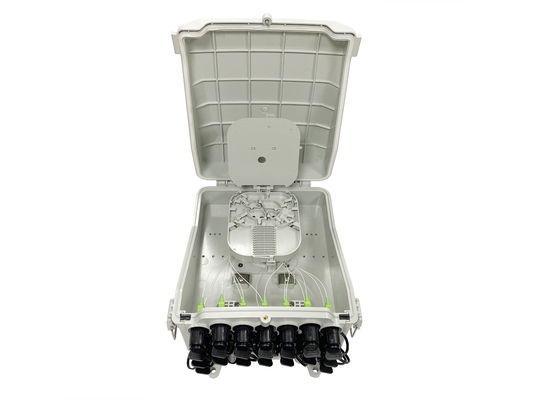

Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 2  Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 3

Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 4Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 5





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification

Model CTO-16L
Dimension 306*237*116mm
Splitter qty and type 2pc 1:8 mini splitter or 1pc 1:16 plc splitter
Max. Capacity 24 cores single fiber
Minimum fiber bending ≥30mm
Cable inlet 1 mid span, 2pcs PG13.5 cable glands
Cable outlet 16 pcs Huawei Compatible Fast Mini SC adapters
Color Grey, black
Protection grade IP66

Standard Accessory

expansion screws, metal key, nylon tie, sleeve, buffer tube

Large Space for 16ports Fiber Optic Splitter Box mini SC adapter for Telecommunication Network 6









Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
