CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance

MOQ: 1pc
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / carton box, 10 pcs / master box
Delivery Period: 5-8days
Payment Method: T/T, Western Union
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, ROHS, SGS
Model Number
CTO-8L
Material:
ABS+PC
Color:
White/Grey
Dimension:
306*237*116mm
Application:
Ftth Splitter Box
Installation Method:
Wall Mount, Pole Mount Enclosure
Box Type:
Fiber Optic Distribution Box
Splitter Qty:
1pcs 1:8 Splitter
Cable Outlet Port:
8pcs For Drop Cable
Adapter:
8pcs MINI SC Waterproof Adapter
Use For:
Indoor And Outdoor
Waterproof:
IP65
Highlight:

Anti-Corrosion Fiber Optic Splitter Box

,

IP65 Fiber Optic Splitter Box

,

IP65 Fiber Optic Splitter Distribution Box

Product Description

CTO-8L Optical Splitter Distribution Box





CTO-8L Optical Splitter Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, mini sc adapters, opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.

CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 0CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 1





Features

  • Box is with small special lock with 2 clips and 1 screw rod;
  • High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
  • Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
  • 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding,both sides with adapter holders;
  • All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
  • Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
  • Top cover with laser mark, and large space for logo or wiring diagram printing.
  • FTTH outdoor wall mounted, pole mount,aerial mount;
  • It is applicable for outdoor cables or indoor soft cable;
  • The box can use for a minimum period of 20 years;

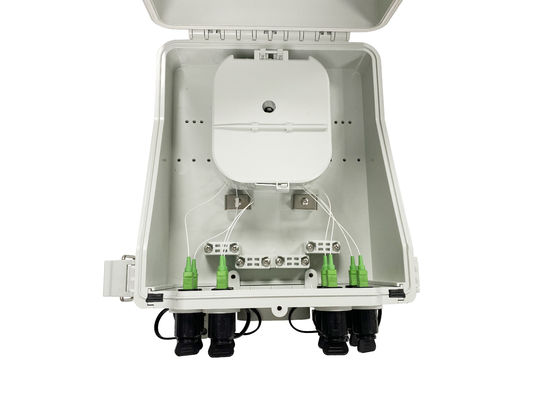

Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​



CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 2  CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 3

CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 4CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 5





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification

Model CTO-8L
Dimension 306*237*116mm
Splitter qty and type 1pc 1:8 mini splitter
Max. Capacity 24 cores single fiber
Minimum fiber bending ≥30mm
Cable inlet 1 mid span, 2pcs PG13.5 cable glands
Cable outlet 8pcs Huawei Fast Mini SC adapters
Color Grey, black
Protection grade IP65



Standard Accessory

expansion screws, metal key, nylon tie, sleeve, buffer tube

CTO-8L Fiber Optic Splitter Distribution Box for IP65 Protection and Anti-Corrosion Performance 6
