High Light
optical fiber pigtail
,waterproof pigtail
-
ConnectorSC
-
Fiber Count12 Cores
-
Insertion Loss<0.3dB
-
Fiber TypeMultimode 62.5/125um
-
PackagePlastic Bag / Bister Box
-
Cable ColorBlue,pink,purple,orange,yellow,black,red,brown,aqua
-
Cable Diameter0.9mm
-
JacketOFNR
-
Connector ColorOrange
-
Temperature-40~+80°C
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO SGS ROHS
-
Model NumberFPC-BS12-OM2-09-03
-
Minimum Order Quantity100pcs
-
Pricenegotiable
-
Packaging Details1 pc/ box, 220pcs / carton box
-
Delivery Time7days after payment
-
Payment TermsWestern Union, T/T
-
Supply Ability100,000 pcs per month
12 Core SC / PC Fiber Optic Pigtail MM
12 Cores SC / PC Fiber Optic Pigtail Bundle Fanout Bunchy Pigtails MM
Description
Fiber Optic Bunchy pigtail has connector at one end, the other end is fiber optic cable which be cut off.
Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF rack ,
cabinet to connect with fiber optic media converter/transceivers(also use coupler,patch cord,etc.)
SC connector can plug directly,easy to use, but also easy to drop out.
Multimode pigtail is orange, wavelength is 850nm, the transmission distance is 500m, for short distance
interconnects. SMF (single mode fiber ) is yellow, the wavelength:1310nm and 1550nm,the transmission
distance are respectively 10km and 40km.

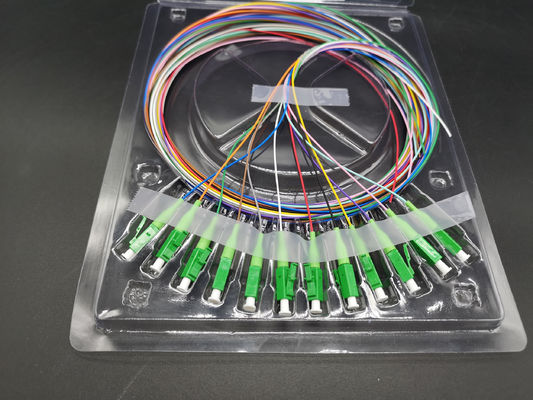

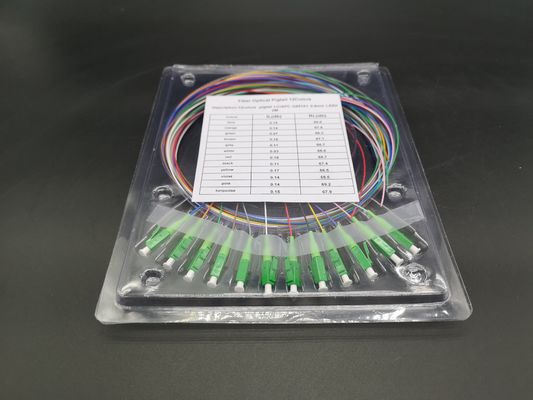

It consists of 12pcs simplex pigtails composition, separate color is as follows:
blue, orange, green, brown,gray, white, red, black, yellow, purple, pink, light blue.
Sell point:
- 100% test in factory before delivery
- Low insertion loss, high return loss
- Pre-terminated all kinds of connectors
- OEM or customer label acceptable
Application
- Medical instruments
- Industry and Army use
- CATV network
- LAN network
- Fiber Access network
- Telecommunications
- Gigabit Data Network test
Features
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- Fiber transmission active connection
- Low insertion loss, high return loss
- Good changeability and repeatability
- Mostly used inside frame connection, simple, convenient and economical
- Easy to install, small size, large capacity.
- Fan out fibers have a special tube protection from twisting off or injury, good bending properties.
Optical Characteristics
|
Cable diameter |
φ0.9mm, φ2.0mm, φ3.0mm |
|
Insertion loss |
≤0.2dB |
|
Return loss |
PC≥40dB,UPC≥50dB,APC≥60dB |
|
Interchange ability test |
≤0.2dB |
|
Mating times |
>1000 times |
|
Repeat ability |
≤0.1dB |
|
Vibration test |
≤0.1dB(10-60Hz,1.5mm Full amplitude) |
|
Tensile strength: |
0~15Kg |
|
temperature cycling test |
≤0.2dB (-40℃~+85℃,after 5times recycle) |
|
Low temperature test |
≤0.2dB(-40℃,last 100 hours) |
|
High temperature test |
≤0.2dB (+85℃,last 100 hours) |
|
Tensile test |
≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception) |
|
Temperature test |
≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours) |
|
Fiber count |
4 core 6 core 8 core, 10 core, 12 core. |
|
Can use connectors |
FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc |
