Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: LC/APC DX
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 50pcs/box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200k per month
Contact Now
Detail Information
Fiber Count: Duplex Fiber Type: Single Mode
Connector Material: Plastic Color: Green
Sleeve: Zirconia, PB Polish Mode: APC
Operating Temperature: -40ºC To +85ºC Flange: No Flange
Metal Clip: Stainless Steel Wavelength: 1310nm, 1550nm

Product Description

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler



LC duplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.



YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types. The connector color can be blue, green, gray or aqua. It is used to align and join two or more fiber-optic connection, to ensure alignment of two fiber-optic connections.



Features

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.



Application

  • Telecommunication
  • CATV
  • Data Communications
  • Instrumentation
  • Local Area Networks



Specification

Item Material Remarks
Sleeve Zirconia, PB
Housing PC Flammability UL94 V-0
Dust cap PVC Flammability UL94 V-0
Shutter ABS Flammability UL94 V-0
Metal Clip Stainless steel
Optical performance P Grade S grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

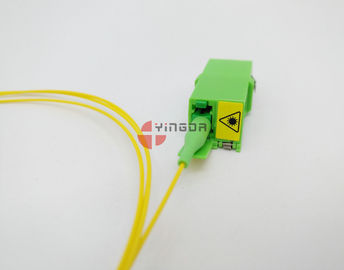

More Pictures

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic CouplerSingle-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic CouplerSingle-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler

Single-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic CouplerSingle-mode Simplex Fiber Optic Adapter LC/APC, Green LC Fiber Optic Coupler



Environmental and Mechanical properties

Item Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability

1000 Mating, clean every

25 mating

IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB
