Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler

Place of Origin China
Brand Name YINGDA
Certification ISO,CE, ROHS
Model Number FDB0216G
Minimum Order Quantity 100 PCS
Packaging Details 1pc per inner box, 10 pcs per carton box
Delivery Time 6 days
Payment Terms Western Union, MoneyGram, T/T
Supply Ability 50000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS PC Color Black, White, Gray
Cable Outlet 16 Pcs 2*3mm Drop Cable Cable Inlet Uncut Port, Mid Span, Express Port NAP 13.5mm
PLC Splitter 1x2 1x4 1x8 1x16 Mini Splitter Fiber Optic Adapter SC, LC Duplex Adapter
Max Capacity 16 Cores Single Fiber Application FTTH FTTB FTTX Network, Network, Return Loss≥55dB(APC), ≥50dB(UPC)., WAN.etc
Product Name Telecom 1x16 CTO FTTH Fiber Distribution Box
Highlight

optical distribution box

,

splitter distribution box

Leave a Message
Product Description

1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler





Quick details:

  1. 16pcs drop cable exit, 2cable glands or uncut cable go through the box
  2. can use splitter mini tube type or lgx module, normally 1x8 or 1x16 splitter
  3. buckle open and lock, fast and easy to operate
  4. large productivity, fast lead time



YINGDA produce all kinds of FTTX series desktop box, FTTX series outdoor box and regular terminal box. FDB0216G terminal box can be wall mount or pole mount. And it maximum can hold 1x16 plc splitter, 16pcs SC adapters, also has 16pcs FTTH drop cable outputs, 2 cable inputs for uncut cable go through the box.



Optical Distribution Box Features

  • The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
  • For indoor and outdoor overhead and hang wall use
  • Box of body use "lock type" structure, box of body switching of simple, convenient, with a lock function, safe use
  • Melt receive flip type design simple to use, melting with complete separation of fine points fibre layout more reasonable
  • Double layer tray, upper layer for fiber optic adapters, lower layer for splitter routing.
  • Maximum hold 16pcs SC simplex adapters, or LC duplex adapters.
  • Can hold 1x2,1x4,1x8,1x16 PLC splitter micro module steel tube
  • 2 inputs ,16 outputs for drop cable



Fiber Access Terminal Application

  • FTTH access netowrk
  • Telecommunication
  • WAN, LAN network
  • ODN, PON netowrk



FDB Box Techanical Specification

Model FDB0216G
Size 293*219*84mm
Material Pc+aBS
Cable ports 2in,16out
Adapter Sc, lc
Max capacity 16fibers
Split ratio 1x2,1x4,1x8,1x16 micro splitter
Color Black, White, Gray

Nap Product Details

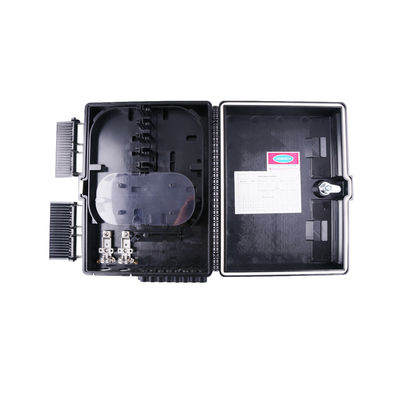

Optical distribution box delivered total enlcosed with key and buckles at sides. The whole optical fiber box is sealed with rubber ring white color below for waterprooof protection, up to IP65 grade.  Internal can be adapter type of LGX slot.



Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 0



Uncut cable inlet allow cable diameter 13.5mm go in through the box without cutting, and there is stainless steel FRP or metal fixture to hold them in place, and cable clamps to fix it.



Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 1Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 2



The internal plate can be rotate 90°,upper is distribution area for adapter or pigtails or the ouputs of splitter outputs,max. 16pcs SC connectors slots by 2ways,there is enough space for 1.5 meter long fiber to store and routing. Back side of the plate is for fusion splice and fiber optic storage of input fiber optic pigtail or fiber optic cable. And there is slots for PLC splitter steel tubes too. Max fusion splice 24cores dual layer.



Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 3Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 4





The top cover with a logo printing area reserved, and the buckles are closed tightly, and the key is special design for anti-thief. There is LOCK, OPEN mark for direction.



Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 5Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 6



There are 2types of cable inlet: cable gland or uncut port kits.

If customer not specify, delivery with cable gland, when need uncut port, you can take the cable gland part off, install the uncut port kit instead.

Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 7



Fiber Optic Distriubtion Box Standard Accessory:

Nylon ties, cable clamps, cable glands, trays, cover, bottom, uncut port, mounting screws, lock key, user manual, heat shrink protection sleeve, buffer tube, etc.



Optical Provider 1x16 Splitter NAP Fiber Optic Cable Termination Distribution Box Black Uncut Port SC Coupler 8



Cable Termination Box Pack information

Quantity per carton  Gross weight per carton Carton size
10pcs 16.9kg 60*35*51cm
