Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter

Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter

  • High Light

    splitter distribution box

    ,

    optical distribution box

  • Material
    Abs+pc
  • Color
    Gray, Black
  • Application
    FTTH, FTTB FTTX Networks, Outoor
  • Product Name
    16 Cores Fiber Distribution Box, Fiber Optic Termination Box
  • Waranty
    3 Years
  • Size
    287*172*102mm
  • Connector
    SC/APC
  • SPLITTER
    1:16 Mini Fiber Optic Plc Splitter
  • Key Feature
    Mid Span Cable Port
  • Place of Origin
    china
  • Brand Name
    Yingda
  • Certification
    ISO,SGS
  • Model Number
    FDB0216V-116SA
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs/carton
  • Delivery Time
    7days
  • Payment Terms
    Western Union, T/T, L/C, MoneyGram
  • Supply Ability
    50000PCS/Month

Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter

PC+ABS 16 cores Transformer Optical Fibre Termination Distribution Box for PLC splitter





FDB0216V Mid span fiber optical distribution box is a high density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP65 waterproof grade.



Specifications

Model FDB0216V
Material ABS+PCS
Cable port 2round ports, 1mid span port, 16outputs for drop cable
Size(W*H*D)

287*172*102 mm

Max capacity 16 cores
Adapter qty 16 SC
PLC splitter 1x2,1x4,1x8,1x16 steel tube PLC splitter
Color

black, gray



Product details

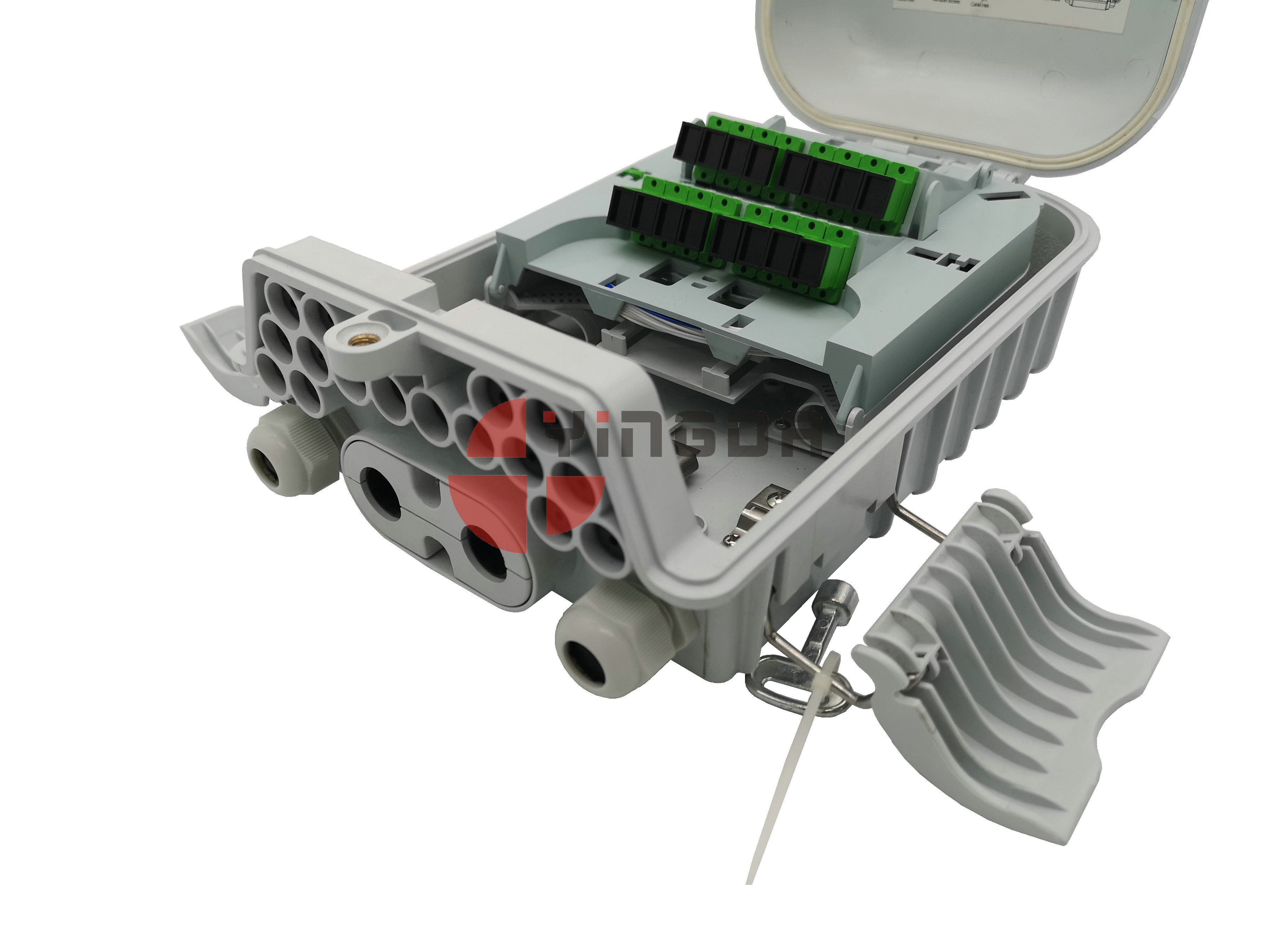

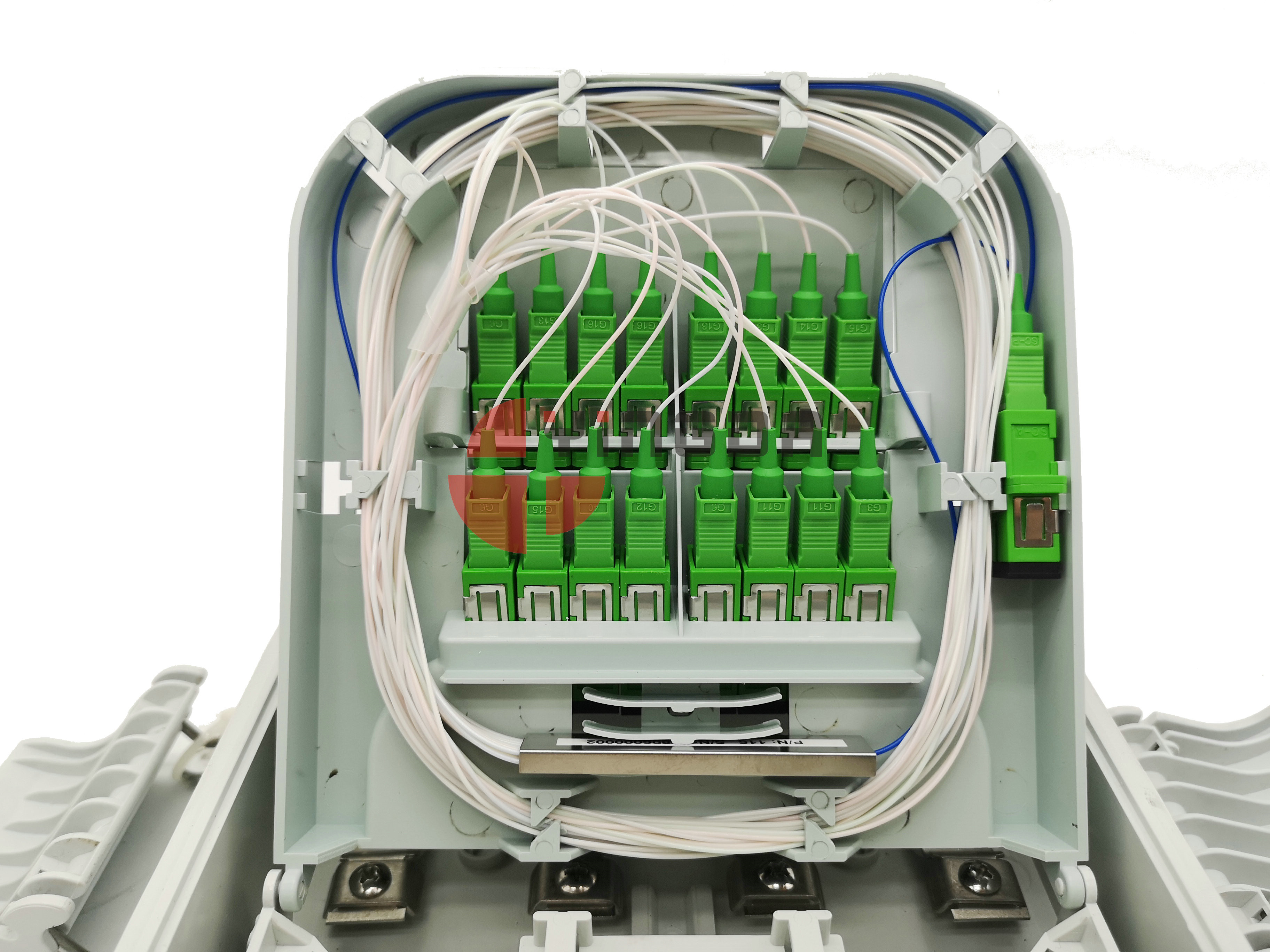

Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 0    Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 1

               material mark: PC+ABS                              tray open here,it can be flip over 90degree.

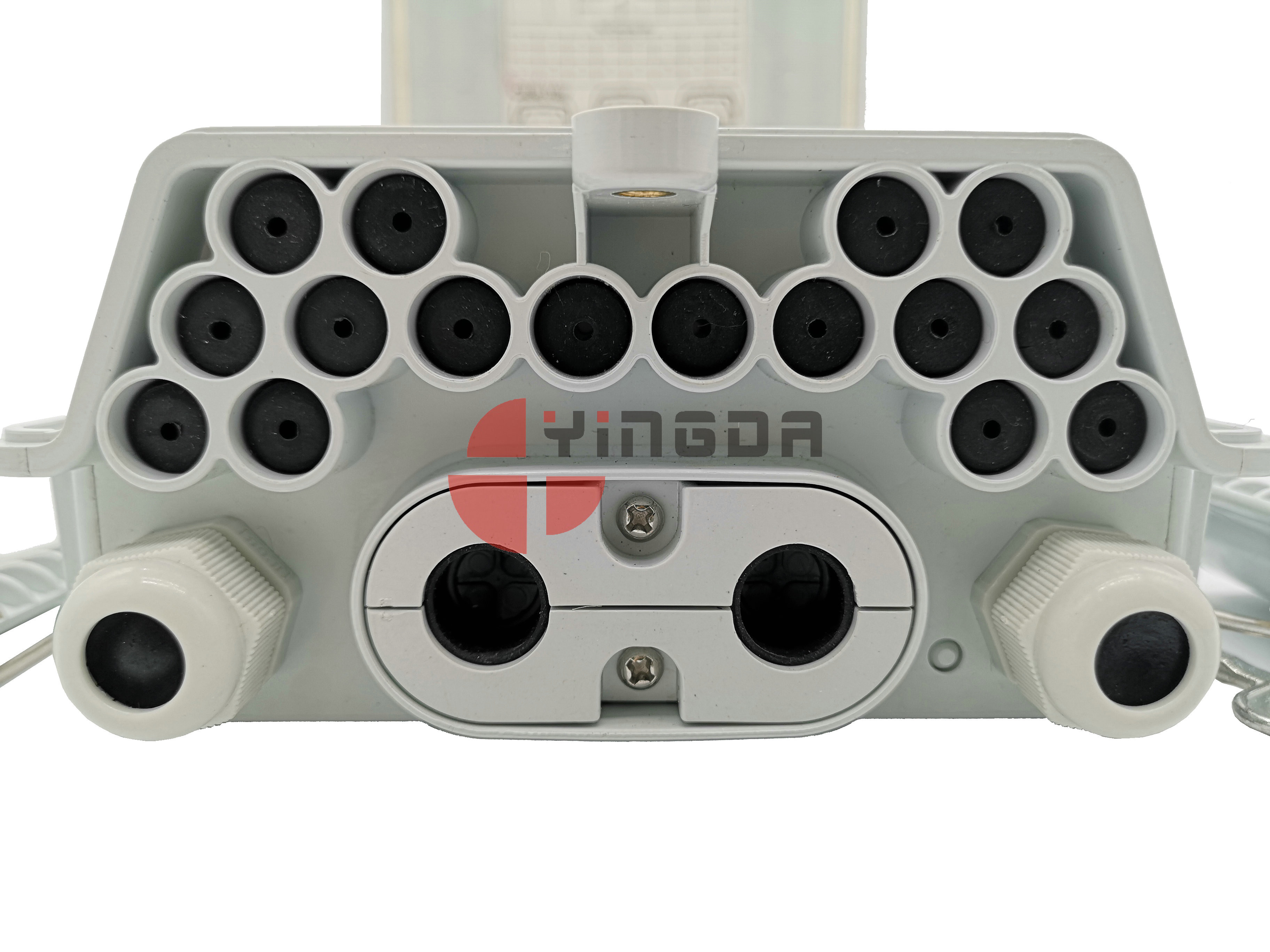

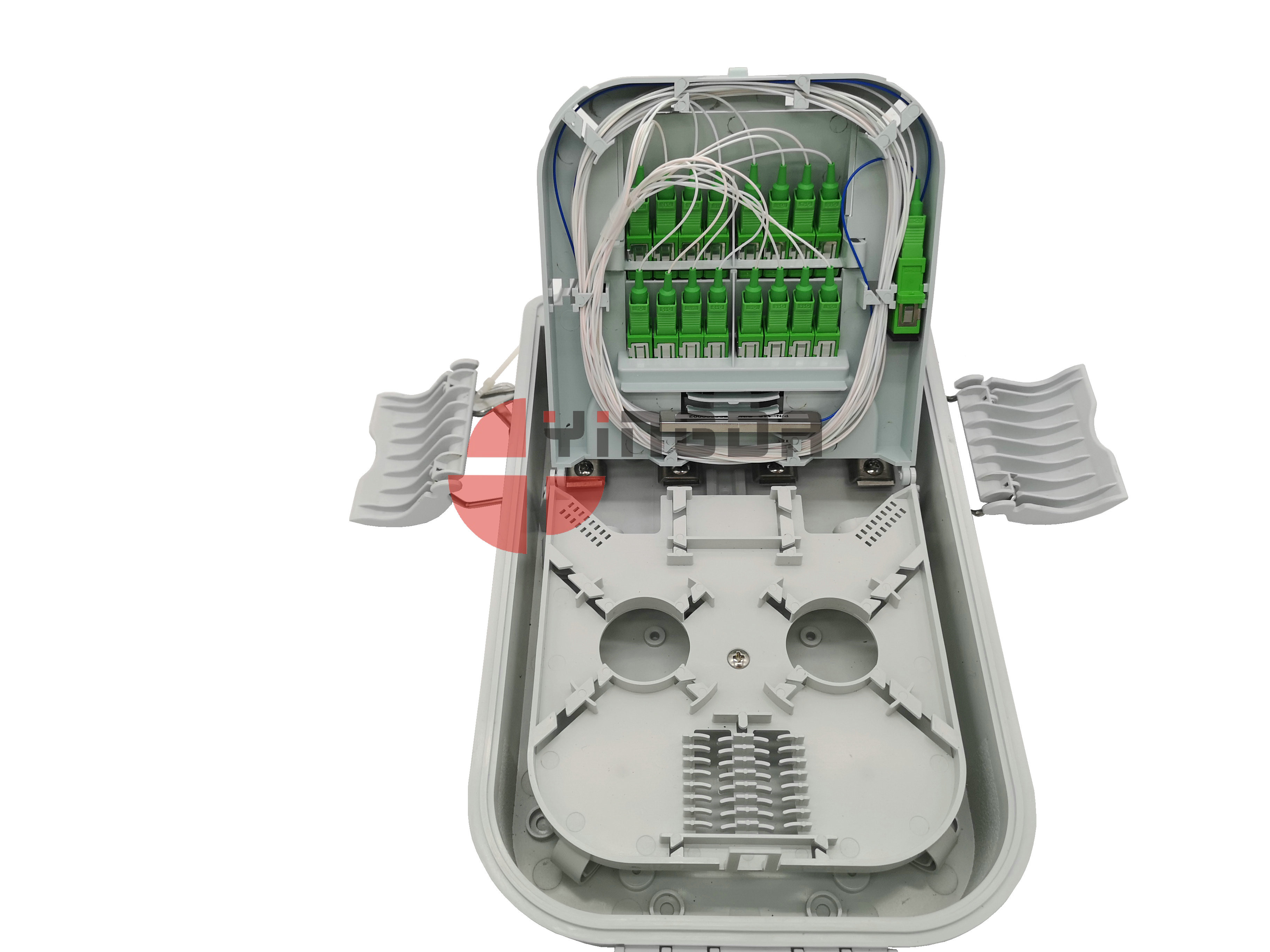

Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 2    Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 3

  adapter holer have number: 1 2 3 4... 16                                   tray is removable with holes



Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 4    Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 5

mounting kits and accessorybag                                laser mark for outdoor use,anti UV

Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 6    Transformer Fiber Optic Termination Cabinet Distribution Box For PLC Splitter 7

  top view: round shape, small size, buckle+key close        back view: mounting holes for pole moun tor wall mount





Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1pc 1x16 or 2pcs 1x8  PLC mini splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16 pcs SC or LC duplex adapters, max. 16cores fusio splice
  • 1pc mid span ports, 2 round cable port, 16 pcs FTTH 2*3mm drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • IP65 level for outdoor use

Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)

Packing information:



Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216v 10pcs cm 1.4 20kgs



Accessory list:

Wall mounting kits 4pcs
Screws 4pcs
Cable tie 10pcs
Heat shrink protection sleeve 16pcs
Key 1pc
Buffer tube 1pc
Pole mount kits 1set -optional, if need, charge additionally
Adapters 18pcs -optional, if need, charge additionally
Plc splitter 1x8, 1x16 -optional, if need, charge additionally



Specifications:



Model FDB0216V
Material ABS+PCS
Cable port 2round ports, 1mid span port, 16outputs for drop cable
Size(W*H*D)

287*172*102 mm

Max capacity 16 cores
Adapter qty 16 SC
PLC splitter 1x2,1x4,1x8,1x16 steel tube PLC splitter
Color black, gray
