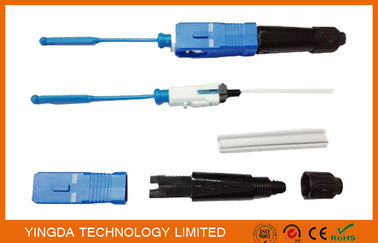

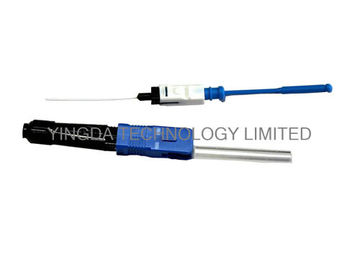

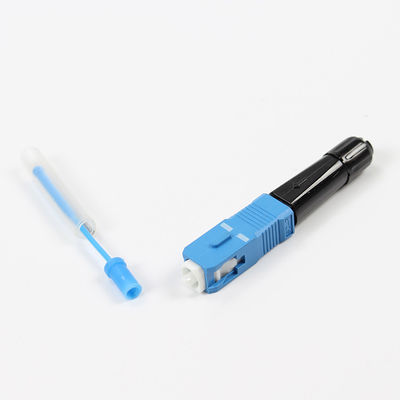

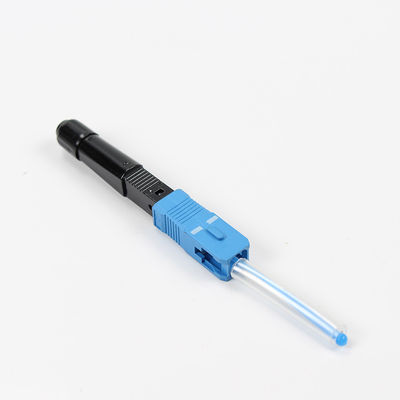

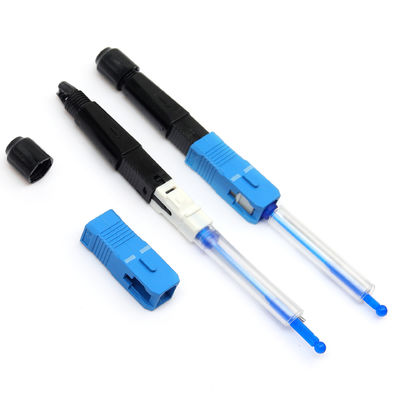

CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector

  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
  • CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number YDFOSC001-SC/UPC
Minimum Order Quantity 100 PCS
Price Negotiable

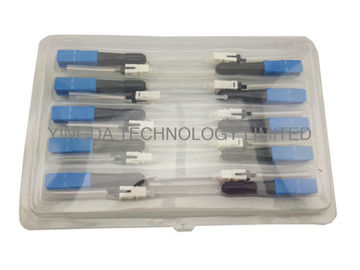

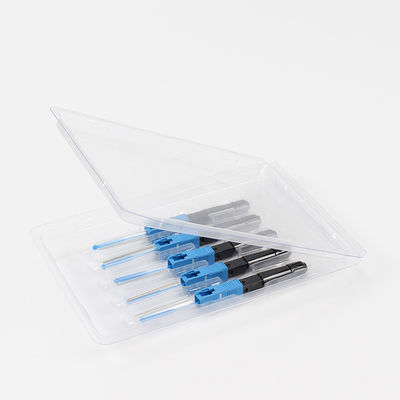

Packaging Details 5 pieces or 10pcs / blister box
Delivery Time 5 working days after got payment
Payment Terms T/T or western Union
Supply Ability 500,000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application FTTH, CATV, LAN Connector Type SC/UPC
Fiber Type SMF-28e Cable Type Single Mode 9/125um
Cable Diameter 0.9mm,2.0mm, 3.0mm, 2x3mm Conneector House Color Blue
Insertion Loss Max. <0.5dB, Typical<0.3dB Return Loss ≥50dB
High Light

quick assembly connector

,

FTTH connector
Leave a Message
Product Description

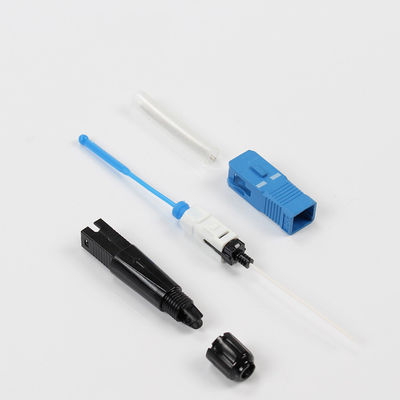

SC fusion splice-on connector is optical fiber type fast connector, but its splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, or distribution boxes. In contract to the design of mechanical splicer, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.



SC Fsion Splice On Connector Features

  • Low operation cost, high efficiency
  • Quickly achieve the on-site termination connection
  • Pressure welding parts adopt new unique structure design, installation without glue injection, no grinding, no consumables
  • High installation quality, high success rate and installation fast, etc
  • Accurate mechanical dimensions
  • All materials conforms to ROHS
  • Easy to carry
  • Easy to operate or use



SC Fsion Splice On Connector Specification

Model YDFOSC001
Connector type SC/UPC, SC/APC
Cable type 0.9mm, 2.0mm, 3.0mm, 3.1*2.0mm drop cable
Fiber diameter 125um(G657A2 bare fiber)
Tight buffer diameter 250um
Fiber type Single mode OS1 9/125um
Insertion loss ≤0.3dB
Return loss ≤-50dB
Bare fiber solid tightness ＞250g
Working temperature -40℃-+80℃
Tension strength 60N (5kgs for 2mins)
Drop test 4 meters high cement floor direction at a time,in total 3times

CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 0CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 1CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 2CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 3CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 4CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 5CATV SC UPC Fusion Splice Heat Shrink Tube FTTH Field Installable Connector 6



Fusion Splice-on Connector Instruction Steps

1. Preparation

2. Put heat-shrink tube housing and nut through into the fiber cable

3. Use flat-fiber stripper to strip the covering about 45mm

4. Use the fiber stripper to strip the fiber coating layer ad clean the fiber ,then place the optial fiber to the holder.

5. Cut the fiber by fiber cleaver

6. Place the assembled holder into the fusion splice machine

7. Strip the 0.9mm fiber coating layer

8. Clean the optical fiber and put it into the holder of fusion splicer machine

9. Cut the fiber by fiber cleaver

10. Put the holder into the fusion splicer machine

11. After the two holder tools ready, close the fusion machine,start fusion

12. After fusing,open the machine and take out the whole spliced-connector carefully

13. Insert the heat-shrink tube to the tail of the spliced-connector carefully, then put the whole spliced connector into the fusion machine and start heating up

14. Remove the connector from fusion machine after about 90s heating, and then cooling down for about 5s

to 10s.

15. Complete assembly





* Please use the customized FTTH melting machine



* Recommended consumable:

Keep a supply of the following items

  • Denatured alcohol
  • Lint-free tissues
  • Cotton swab



Tags:

quick assembly connector

FTTH connector

mechanical splicer
