Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box,10pcs/carton box
Delivery Period: 5-8days after payment
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
Splice Tray 24cores
Size:
230*335*25mm
Cores:
24fibers
Connector:
LC/UPC Duplex
Fiber Type:
Single Mode G657A1
Rack Color:
White
Material:
ABS
Wavelength:
1260 - 1650 Nm
Application:
FTTH FTTB FTTX Network
Highlight:

24 core fiber splice tray

,

outdoor FTTH cabinet splice box

,

fiber optic PLC splitter module

Product Description
Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet


YINGDA splice trays use proven designs and fiber organization technology to provide optimum physical protection for fusion and mechanical splicing methods. The trays are engineered for use with both loose tube and tight buffered optical cable designs. Their generous size prevents induced attenuation due to fiber bending

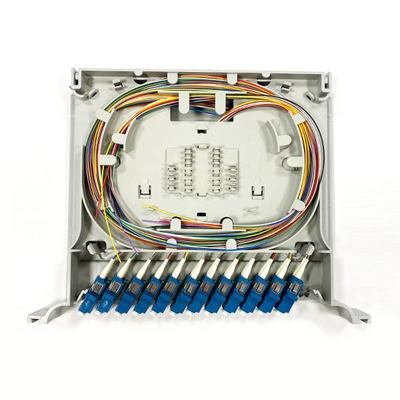

The plastic tray consists of an injection-molded, plastic base that incorporates features to retain fiber loops and control the bend radius. The plastic cover prevents the dust from outside and protects fiber very well.
Each mechanical and heat-shrink splice organizer provides a positive holding action for maximum splice protection during
installation and use.
Designed for use with Huiyuan Distribution Frame Systems interconnection hardware and splice closures, these splice trays are an integral part of the complete YINGDA splicing system.


Feature

For use with indoor or outdoor splice hardware
  Protects and manages fibers and fiber splices
  Used at field splice, transition splice and end splice locations


Application

  1. Fiber optical network system
  2. CATV system
  3. PON system
  4.  FTTH system


Specification


Item no.
Dimension(mm)
Capacity(core)
Material
Temperature(℃)
YD-12-SP01
141x10x133
12
ABS
-40-+80
YD-12-SP02
160x10x135
24
ABS
-40-+80
YD-12-SP03
135x8.5x110
12
ABS
-40-+80
YD-12-SP04
163x10x145
12
ABS
-40-+80
YD-12-SP05
170x10x110
12
ABS
-40-+80
YD-12-SP06
175x14x140
12
ABS
-40-+80
YD-12-SP07
158x16x95
24
ABS
-40-+80
YD-12-SP08
153×91×10
12
ABS
-40-+80
YD-12-SP09
163×98×10
12
ABS
-40-+80
YD-12-SP10
158×85×10
12
ABS
-40-+80
YD-12-SP11
172×110×10
24
ABS
-40-+80


Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet 0Fiber Optic Equipment 24 Core Fiber Splice Tray and Splice Box Splitter Module for Outdoor FTTH Cabinet 1

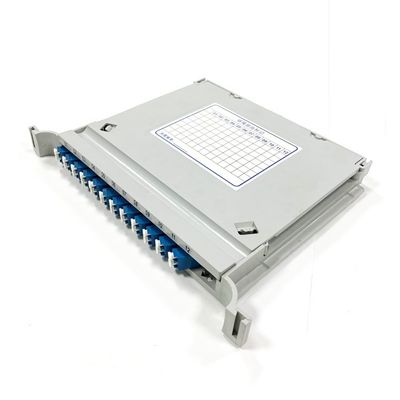

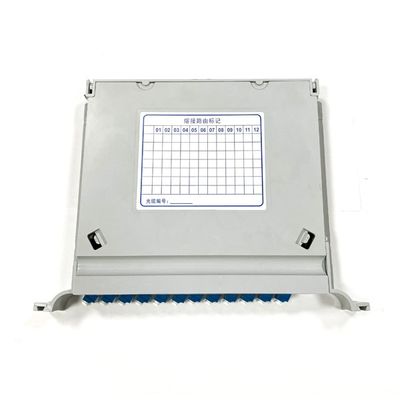

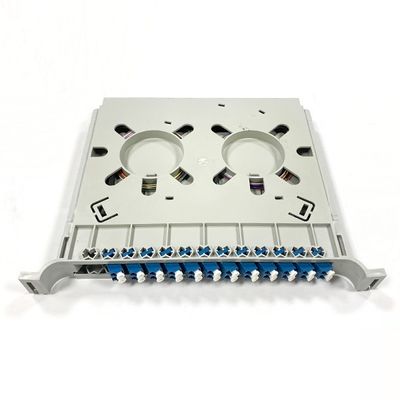

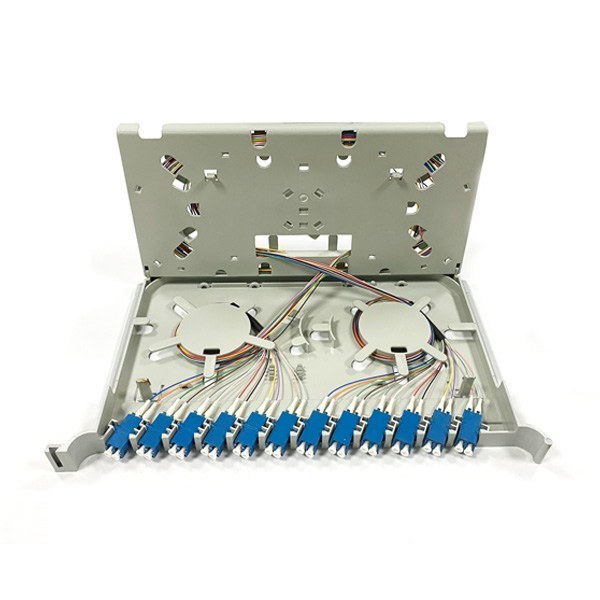

Load with 12pcs LC UPC duplex adapter, also can be support SC ST FC connector.
