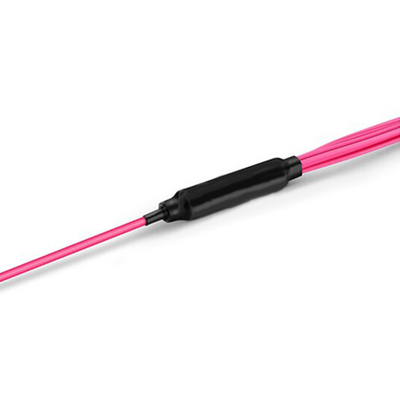

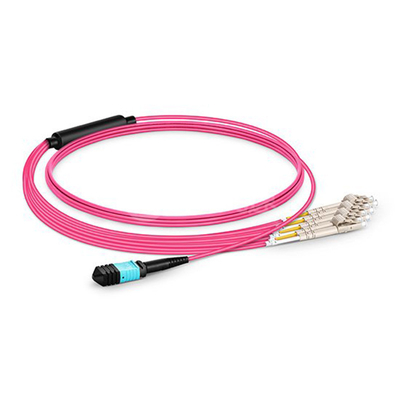

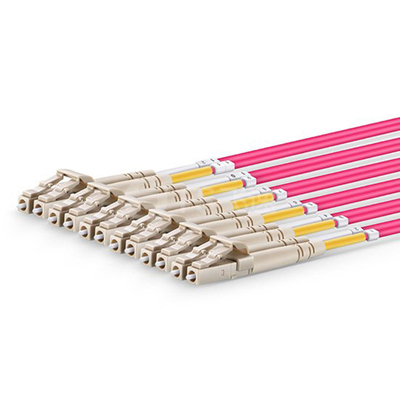

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/ box,200pcs/carton box
Delivery Period: 7days after payment
Payment Method: T/T or western Union
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTP-MTP 24
Industry Type:
Data Center FTTX
Application:
FTTX PON CATV
Product Name:
Singlemode Multimode OM3 OM4 12core MTP MPO Patch Cord
Insertion Loss:
Normal <0.7dB,Elite Loss <0.35dB
Nominal Outer Diameter:
0.9mm 2.0mm 3.0mm 5.0mm Round Cable
Length:
0.5m 1m 2m 5m Customized
Highlight:

MPO LC breakout patch cord OM4

,

MTP to LC duplex cable 12 fibers

,

MPO patch cord Type A 10 meter

Product Description

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter



MPO cable assemblies are with 12 core MPO connector female to female. cable type OM4, the cable is widely used for cable expanding in the data center.

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.


Features

  • 12 core cable connection
  • OM3 fiber optic cable
  • Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
  • Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
  • Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage


Specification

Model
SM
MM
Connector A:MPO/MTP
Connector Fiber Count
8,12,24,48 Core
Polish
PC,APC
PC
Insertion Loss
Standard
≤0.70dB
≤0.50dB
Elite Low Loss
≤0.35dB
≤0.30dB
Return Loss
PC≥50dB,APC≥60dB
≥30dB
Durability(500 Matings)
≤0.2dB
Test Wavelength
1310/1550nm
850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish
PC,APC
PC
Insertion Loss
≤0.2dB
≤0.2dB
Return Loss
PC≥50dB,APC≥60dB
≥35dB
Durability(500 Matings)
≤0.2dB
Test Wavelength
1310/1550nm
850/1300nm

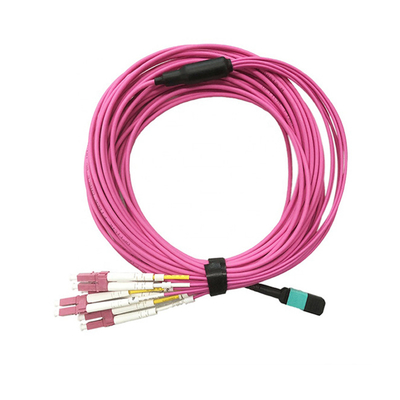

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 0

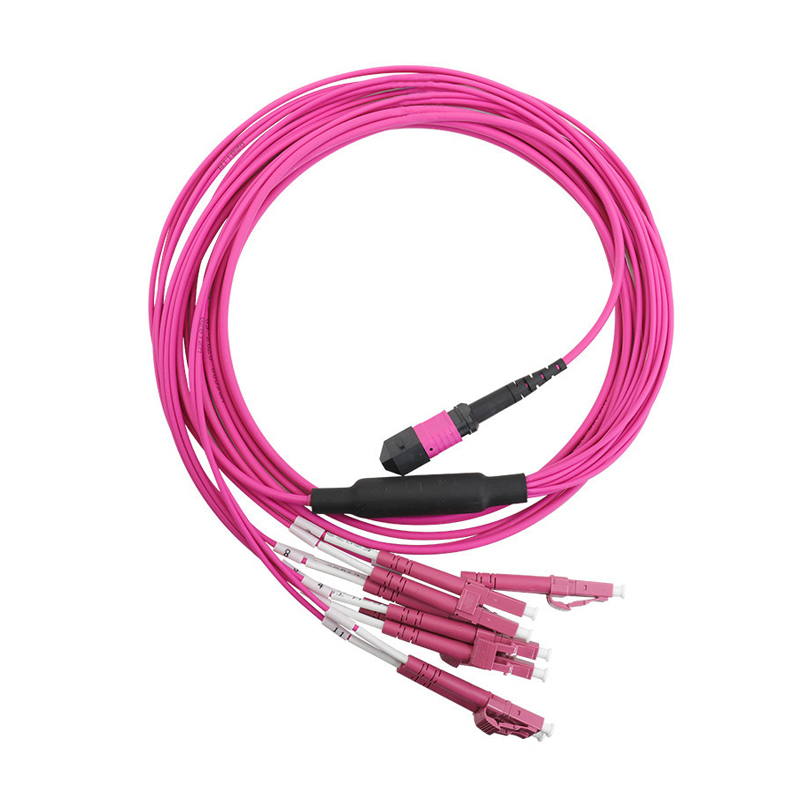

MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 1


Product Packaging:

  • The MTP MPO Cable will be packed in a individual bag.
  • The bags will be labeled with the product name, simple description, test report

YINGDA's MPO Patch Cable Production Line:


MPO patch cord MPO-LC MPO/MTP to 6 x LC UPC Duplex 12 Fibers OM4 MM Type A Breakout Patch Cord 5 meter 10 meter 2


FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is YINGDA. or OEM your brand.

Q: What certifications does this product have?

A: This product is certified by ISO, SGS, and ROHS.

Q: Where is this product made?

A: This product is made in China.

Q: What is the minimum order quantity for this product?

A: Normal model no MOQ, if need customized  MOQ is 200pcs

Q: What are the payment terms for this product?

A: The payment terms for this product are T/T or Western Union.

Q: What is the supply ability of this product?

A: The supply ability of this product is 10,000 pieces per month.

Q: What is the delivery time for this product?

A: The delivery time for this product is 7 days after payment.

Q: How is this product packaged?

A: This product is packaged with 1 piece per bag, and 200 pieces per carton box.

Q: Is the price negotiable?

A: Yes, the price for this product is negotiable. Different require and qty, price will be different.

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

B
B*n
Canada Apr 28.2025
Helpful (3)
Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.
A
Aincosa
Guyana Mar 20.2024
Helpful (2)
We have cooperated with the company for five years and are satisfied with both its products and services.
C
C*d
Ecuador Feb 26.2021
Helpful (3)
Excellent quality, as always! Fantastic product and service!
Review Image
