High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution

MOQ: 10PCS
Price: negotiable
Standard Packaging: 1pc per box, 1pcs per carton box
Delivery Period: 15-18 days
Payment Method: T/T,Western Union,paypal,L/C
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
GPSR-1U-SA144
Type:
FTTx Solutions
Fiber Type:
MPO/MTP
Max Capacity:
288cores
Material:
Cold Roll Steel; PC Material Front Transparent Cover
Dimension:
2U 19"
Application:
FTTX, Telecom,Data Center
Highlight:

2U 19 inch fiber optic patch panel

,

144 core MPO to LC patch panel

,

MTP unload slide rack panel

Product Description

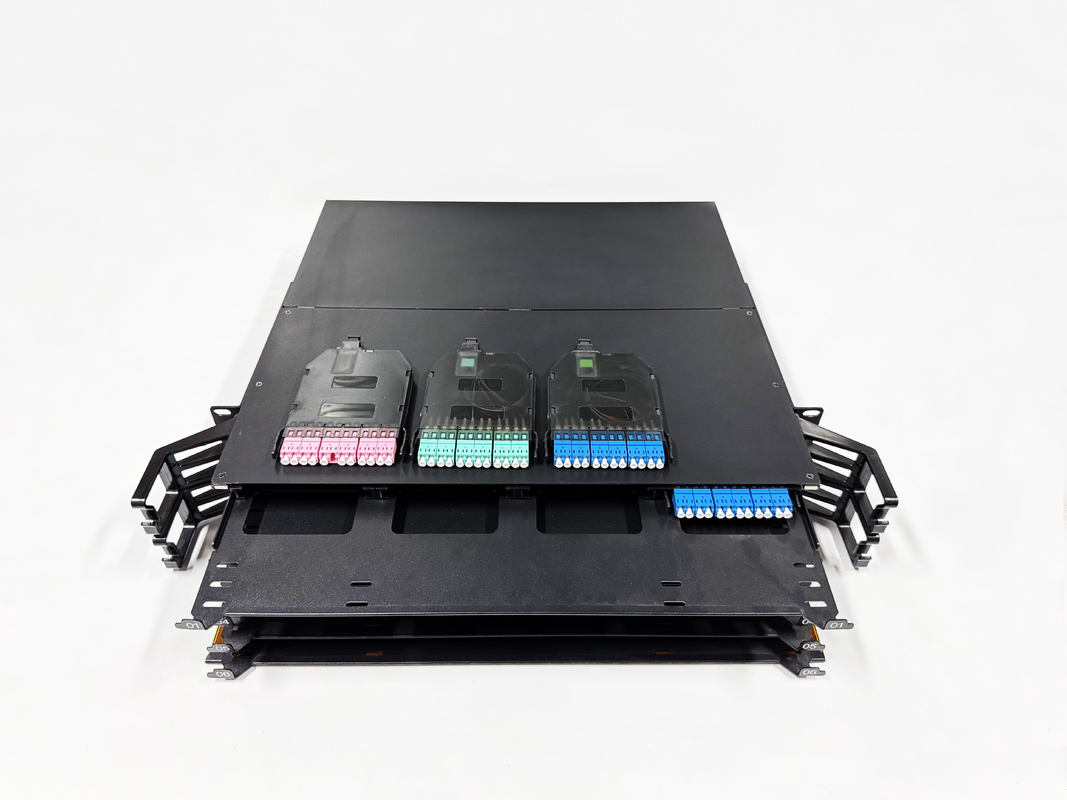

High Density 2U 19 Inch  144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution



The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1 X N MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.


MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.



Fiber Adapter Panel 144cores Specification


MPO Patch Panel Specification

Part no. FHD1R144-C04FD FHD3R288-C04FD FHD4R576-C04FD
Fiber count 144 cores 288 cores 576 cores
Dimension 482.6*455*44.5mm 482.6*455*89mm 482.6*455*177mm
Cassette quantity 12 pcs 24 pcs 48 pcs
Material CRS Cold rolled steel
Compliance TIA/EIA-568-C.3
Installation Standard EIA 19″ Rack
Enclosure type Rack Mount sliding out patch panel


Application:
Data centers, pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High density architectures



Optical Distribution Panel 4U Pack information

High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 0

Quantity/carton box Carton size Weight/carton box
1pc 47*35*28cm 10kg




Yingda Offer all kinds of MPO series box, welcome inquiry.


High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 1 High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 2 High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 3

          24 Fiber MPO Cassette                                             MPO Harness Cable                                                            MPO Truck Cable
