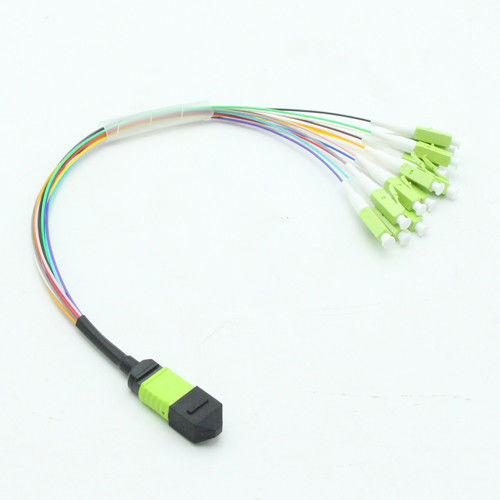

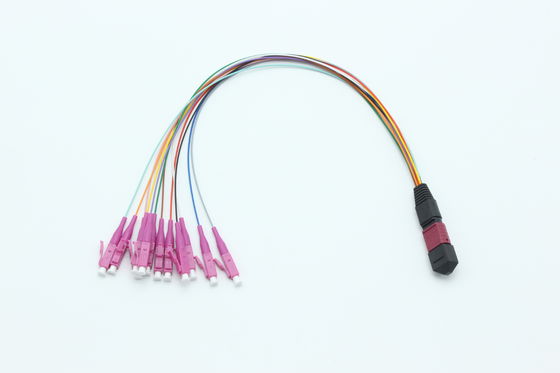

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable

Name: High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO-LC/OM4 OM5
Price: 49.20 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	MPO-LC/OM4 OM5
MOQ:	100 pcs
Price:	0.2USD-100USD
Delivery Time:	7days after payment
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS ROHS

Product Name:

MPO Patch Cord 12 24cores

Application:

Data Center, High Density

Connector:

MPO Male

Fiber Type:

SM OM2 OM3 OM4 OM5

Fiber Count:

12 24Cores

Installation Place:

MPO Cassette LGX Module Or Patch Panel

Cable Length:

0.35meter 1meter

Cable Diameter:

0.9mm

Packaging Details:

1 pc/ box, 200 pcs/carton box

Supply Ability:

1,000,000 pcs per month

Highlight:

MTP MPO Cable for CATV

High-Density MTP MPO Cable

MPO To LC Breakout Cable

Product Description

MPO Patch Cable

YINGDA provides an extensive and complete line of high-density MTP and MPO multi fiber connectors products, including jumpers,
fanouts and pre-terminated solution. The single-mode and multi mode by low loss for MTP and MPO connectors deliver the performance
and reliability to answer today’s demanding about high-speed broadband and data networks. MTP and MPO maximize the capacity in
data center, increasing fiber density on fiber shelves and faceplates and also improving and simplifying fiber routing.
MTP trunk cable is a cost-effective alternative to time-consuming field termination, and is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MPO To LC Breakout Cable Features

* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, RoHS standard

MPO Breakout Cable OM4 Application

* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical

MTP MPO Connector Optical Parameters

Insertion loss(dB)	SM Standard	SM Elite	MM Standard	MM Elite
	≤0.7	≤0.35	≤0.7	≤0.35
Return loss(dB)	≥60		≥20
Durability (dB)	≤0.2, 500 times mating
Tensile strength(kgf)	10
Working temperature(℃)	-20 ~+70
Measurement wavelength(nm)	1310		850

LC SC FC Fiber Optic Connectors

Fiber mode	Single Mode		Multimode
Connector polishing	PC	APC	PC
Insertion loss (dB)	≤0.3
Return loss (dB)	≥50	≥60	≥35
Repeatability(dB)	≤0.2, 1000 times mating
Working temperature(℃)	-40 ~+85
Measurement wavelength (nm)	1310		850

There are MPO SM OM3 OM4 OM5 Connector for optional

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable 0

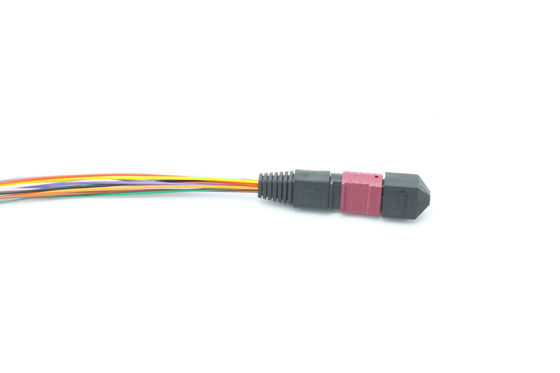

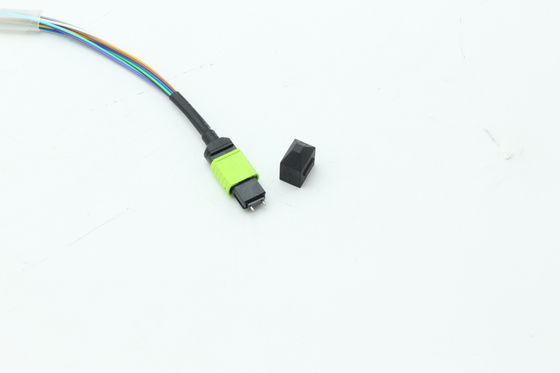

MPO Connector: Dust Cap, Outer Housing, Ferrule Assembly(A/B), Spring, Stopper, Riveting Ring, Black Boot

there are two type ferrule assembly for female and male connector

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable 4

Data Center Solution Related Assemblies: can be used with MPO Cassette,19inch 1U Fiber patch panel, SFP 10G, QSFP40

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable 5

YINGDA'S Workshop For MPO MTP Cable

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable 8

High-Density MTP MPO Cable for CATV and Test Applications MPO To LC Breakout Cable 10
