Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating

Name: Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating
Brand: YINGDA TECHNOLOGY LIMITED
SKU: AI-9
Price: 29.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	AI-9
MOQ:	1 pc
Price:	negotiable
Delivery Time:	5 days after payment
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS ROHS

Application:

Fiber Optic Splicing

Product Type:

Fiber Optic Tool Kits Fusion Splicer

Fiber Coating Diameter:

100-1000μm

Language Setting:

10 Languages To Switch Freely

Focus Mode:

Six Motors Auto Focus

Splicing Time:

Heating Time:

15S

Power Supply:

Input AC100-240V 50 / 60HZ, Output DC13.5V / 4.8A, The Current Power Mode Can Be Identified, Real-time Detection Of Battery Power

Dimension:

5.31 X 7.8 X 4.8 Inches

Fiber Cladding Diameter:

80-150μm

Packaging Details:

1pcs / set

Supply Ability:

5,000 pcs per month

Highlight:

Fiber Optic Splicing Heating Machine

5 Seconds Fiber Optic Fusion Splicer

7800 mAh Fiber Optic Fusion Splicer

Product Description

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating

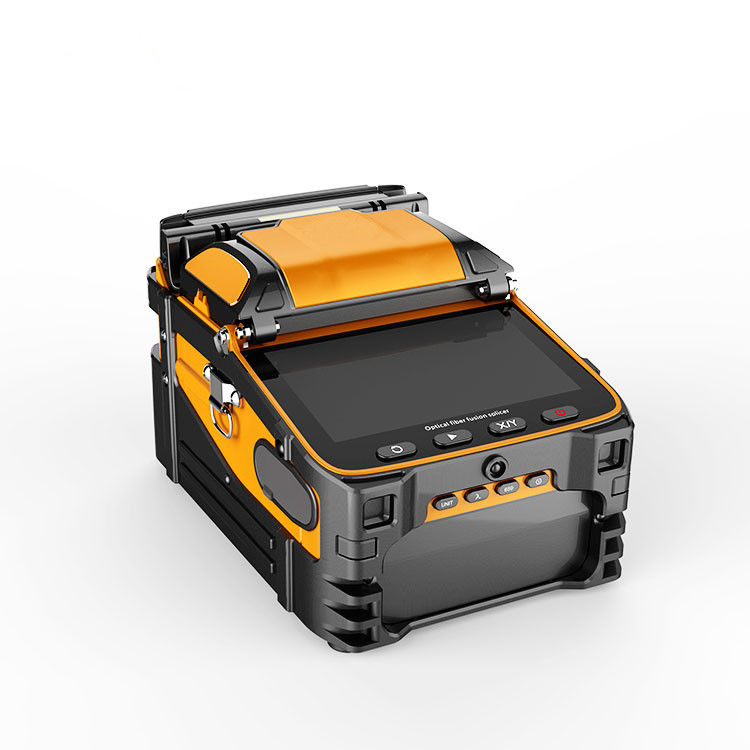

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating 0

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber

fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security

monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is

currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the

operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe

the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency

increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the

performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design

of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction

or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The

core parts are using imported brands, aviation metal body material with exquisite details. With the combination

of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable

and comfortable user experience.

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating 2

Faster Splicing & Heating

The fusion splicing machine uses a powerful high-speed motor that allows fast 5 second splice time and 15 second heat time, continuous splice and heats about 260 times. And it saving engineers time.

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating 3

Built-In Power Meter & VFL

Using the latest core alignment technology with auto-focus and six motors. It is more precise and less splicing loss than cladding alignment technology. Effectively measure connection loss,verify continuity and help assess fiber link transmission quality.

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating 4

Clear LCD & Long Time Standby

With 5-inch high-resolution screen, it is up to 320 times the focus magnifications when X/Y Axis displayed separately, 200 times focused magnifications when X and Y Axis displayed simultaneously. 7800 mah high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times.

Fiber Optic Fusion Splicer 7800 mAh Splicing Heating Machine with 5 Seconds Splicing Time Melting 15 Seconds Heating 5

Fiber Optic Splicing Machine Application

Telecommunications Engineering and repair
CATV engineering and maintenance
Optical cable manufacturers

Fiber optic Fusion Splicer Basic Parameter

Fiber alignment: Core/cladding alignment / Manual alignment

Splicing time: 5S

Heating time:15S

Control technology: Real-time control and calibration of fusion ARC

Return loss: Better than 60DB

Cladding Diameter:80-150μm

Coating Diameter:100-1000μm

Fiber CleaveLength Coating less than 250µm:8-16mm

Coating less than 250-1000µm:16mm

Focus mode: Six motors Auto focus

Heating mode Automatic heating(Preheating)

Software updates Length:Automatically update, Update by a key

Boot time : 1 second

Language Setting:10 languages to switch freely

Tension Test:Standard 2N

Fiber holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable

Magnification:300 for X or Y view, 150 for X or Y view

Screen:5 inch TFT color display

Splicing Mode:Normal / high precision splicing

Splicing method: Fully automatic,Step by step splicing

Built-in battery: 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times

Fiber Splicing Tools Accessories in the tool box:
