FTTH Drop Cable
Created with Pixso. Armored Bow Type Fiber Drop Cable FTTH Black PE Jacket Outdoor Duct Cable

Armored Bow Type Fiber Drop Cable FTTH Black PE Jacket Outdoor Duct Cable

Brand Name: YINGDA
Model Number: GYFBZY
MOQ: 10KM
Price: Negotiable
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Cable Jacket:
Black
Minimum Length:
10km
Fiber Count:
2 Cores
Cable Size:
6.8mm
Jacket Material:
PE Or LSZH
Waterproof:
Yes
Tensile(N):
Long Term:100N, Short Term: 200N
Packaging Details:
2km / wooden drum
Highlight:

ftth fiber optic cable

,

ftth drop cable

Product Description



Armored Bow Type Fiber Drop Cable FTTH Black PE Jacket Outdoor Duct Cable

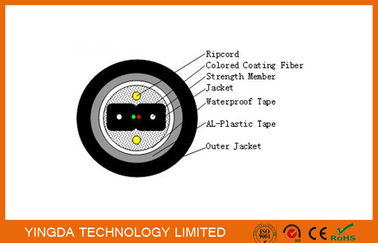

Description



Armored cable GYFBZY is Butterfly introduced to stain bare fiber for optical units,

placed parallel to the sides of two metal or non-metallic reinforcement, covered

a layer of flame retardant material forming, placed on the aluminum longitudinal

assure, both anti-la Fonda list fiber, add layer of water proof or water blocking yarn,

sheath covered a layer of PE.



Application


◆Mainly used in building aerial and duct access cabling





Technical parameters



Cable

code

Fiber

count

Cable

size

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Crush

resistance

Temperature

(°C)

Long

 term

Short

 term

Long

term

Short

term

Dynamic

Static

GYFBZY-02

2

6.8

60

100

200

500

1000

20D

10D

-20~+60



Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket

material

PE

LSZH
