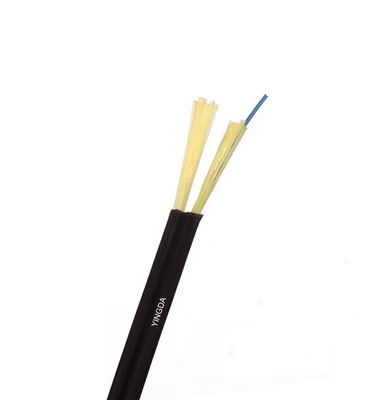

FTTH FTTX Figure 8 Drop Cable 1Core Mini Aerial Outdoor Fiber Optic Cable HDPE

MOQ:	2 KM
Price:	Negotiable
Standard Packaging:	2km / wooden drum

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

ISO,SGS

Model Number

GJYFJC8H

Cable Jacket:

Black

Sheath Material:

Fiber Count:

1 Core

Cable Size:

2.0*7.0mm

Application:

FTTH Aerial Mount

Strength Member:

Aramid Yarn, Polyester Yarn

Highlight:

FTTH Figure 8 Drop Cable

FTTX Figure 8 Drop Cable

Mini Aerial Outdoor Fiber Optic Cable

Product Description

FTTH FTTX Figure 8 Drop Cable GJYFJC8H 1Core Mini Aerial Outdoor Fiber Optic Cable HDPE

FTTH Drop Cable will be directly connected till end user home, the bandwidth, wavelength and transmission technology are not restricted. There is one messenger wire with polyester yarn, steel or steel strands for supporting in aerial mounting. It is quite popular now on market.

Application

House wiring
Lead-in cable
FTTH FTTX network
Conforms to IEC 60794-1-21 standards

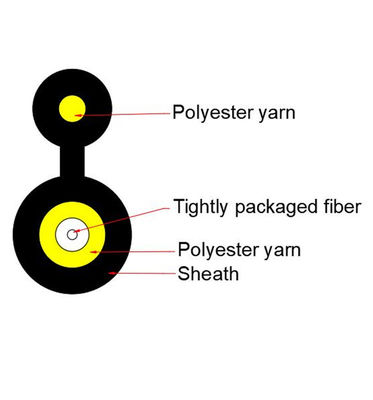

Technical specification

Cable Type	GJYFJC8H
Optical Fiber Unit	Fiber count	1core
	Fiber color code	G657A2, natural
	Tight buffer color	white
	Diameter	0.85mm
	Material	LSZH
Strength member	Material	Polyester yarn
	Color	Black
	Diameter	3.0±0.1mm
Brace	Height/width	0.7mm /0.6mm
Supporting wire	Material	Polyester yarn
Supporting wire	Diameter	2.0±0.1mm
Cable sheath material	LSZH
Cable color	Black
Cable height	5.7±0.1mm
Cable weight	14kg/km
Attenuation	1310nm≤0.4dB/km; 1550nm≤0.3dB/km;
Cable tray length	1KM
Cable marking	Indication in meters Quantity and type of fibers Factory name Date of manufacturing(year) Other requirements

Cable Test Results

Crush	Short term:500N/100mm	No fiber break and no sheath damage
Impact	Height:1m Number:3times Weight:1N	No fiber break and no sheath damage
Repeated	Bending radius (≥60mm): 40xD No. Of cycle:30 Load:20N	No fiber break and no sheath damage
Torsion	Cycle:20 Length under test:250m Turns:±180° Load:20N	No fiber break and no sheath damage
Temperature cycling	Temperature:-20°C~+60°C Time of each step:8h Number of cycle:2	Loss change≤0.5dB@1550nm No fiber break and no sheath damage
