FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV
  • name
  • name

FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV

MOQ: 2 KM
Price: Negotiable
Standard Packaging: 2km / wooden drum
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
GJXFH
Cable Jacket:
Black
Sheath Material:
HDPE
Fiber Count:
1 Core
Cable Size:
3.5*7.5mm
Application:
Aerial, Duct, FTTH
Strength Member:
FRP Or Steel Wire
Highlight:

FTTP 900um Fiber Optic Cable

,

Tight Buffered Fiber Optic Cable

,

G657A2 Tight Buffered Cable

Product Description

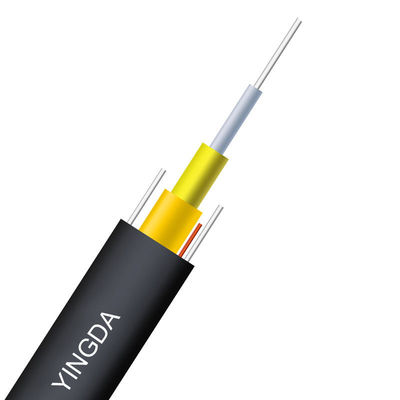

FTTP 900um Tight Buffered Indoor Outdoor Cable Fiber Optic G657A2 PE Black Anti-UV

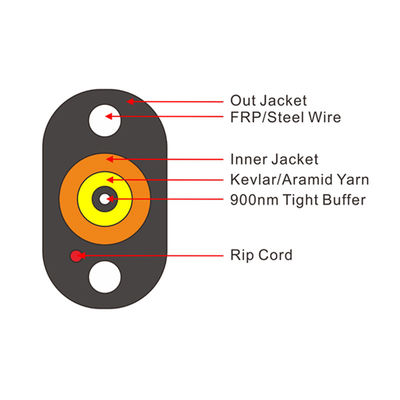

FTTP is the first indoor outdoor drop able that is durable enough for outdoor environments and flexible enough for tight bends within residences. The patented design utilizes a fully functional 2.9mm OFNR rated tigher buffer cable as the core of a GR-20 OSP rated FTTP small flat cable.



FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV 0



FTTP Cable Features

  • Excellent crush resistance
  • Tight buffered cable can be placed in a riser environment
  • Eliminates splice at premises wall
  • Small diameter and light weight, water resistant
  • Aerial direct bury or conduit, all dielectric



indoor Outdoor Cable Application

  • Drop cables for aerial, direct bury or conduit installations.
  • Fiber to the premise for single family residences.



G657A2 Cable Technical parameters

Cable type OD(mm) Nominal weight (kg/km) Tensile strength (N) Crush resistance (N/100mm) Bending radius (mm)
GJXFH-1Xn (4.0±0.2)*(7.0±0.3) 44.0 1350 400 2200 1000 20D 15D
Storage /working temperature (°C) -40 ~+70



Note: Xn is fiber optic model and D is the diameter of optical cable.



Packing and Reel Length

  1. Standard wooden drum with protection
  2. Standard reel length:2/3km/reel, other length is also available.



We can pre-connected all kinds of connectors at faoctory for ftth application, no need to add connectors when construction. Also the cable size can be changed according to customer request for different applications.



Welcome inquiry to sales@yingdapc.com

Tel:+86 18688982406



FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV 1FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV 2FTTP 900um Tight Buffered Indoor Outdoor Fiber Optic Cable G657A2 PE Black Anti-UV 3



Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
E
E*n
Chile Aug 23.2023
Helpful (9)
Good quality, IP65 waterproof. will continue to cooperate with YINGDA
R
R*K
Venezuela Sep 26.2022
Helpful (24)
All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
Review Image
