| Brand Name: | YINGDA |
| Model Number: | GJXFH-02 |
| MOQ: | 20km |
| Price: | Negotiable |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T or western Union |
FTTH Drop Cable Indoor Single Mode 2 Cores Fiber Optic Cable FRP Non-Metallic Strength
Description
Butterfly fiber optic cable is a cable designed specifically for FTTH which have both indoor and
outdoor optical cable features. It adopts double reinforcement figure 8 structure, can directly drop
into the building household from the fiber optic splice closure. Particularly it suitable to use together
with fast connector(field installation connector), mechanical splice; also it can be separate the
suspended fiber core and then splice with others.

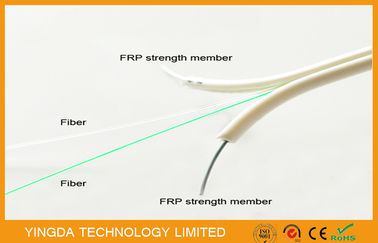

Cable structure
Features
Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temperature (°C) |
|||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||
|
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
|
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
0 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|
|
|
||||||||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||
|
Jacket material |
PE |
LSZH |
||||||||
|
Features: |
||||||||||
|
Special low beng sensitivity fiber provodes high bandwidth |
||||||||||
|
Two parallel FRP strength member ensures good performance of crush resistance to protect the fiber |
||||||||||
|
Simplex structure, light weight,high practicability |
||||||||||
|
Low smoke zero halogen and flame retardant sheath |
||||||||||
|
|
