FTTH Drop Cable
Created with Pixso. FTTH 4 Core Loose Tube Flat Fiber Optic Drop Cable PE3.5x7.5mm Waterproof FRP
FTTH 4 Core Loose Tube Flat Fiber Optic Drop Cable PE3.5x7.5mm Waterproof FRP
  • Name
  • Name

FTTH 4 Core Loose Tube Flat Fiber Optic Drop Cable PE3.5x7.5mm Waterproof FRP

Brand Name: YINGDA
Model Number: GJXFH
MOQ: 2 KM
Price: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Cable Jacket:
Black
Sheath Material:
HDPE
Fiber Count:
4 Core
Cable Size:
3.5*7.5mm
Application:
Aerial, Duct, FTTH
Strength Member:
FRP Or Steel Wire
Packaging Details:
2km / wooden drum
Highlight:

Flat Fiber Optic Drop Cable

,

Loose Tube Fiber Optic Drop Cable

,

Waterproof FRP Fiber Optic Drop Cable

Product Description

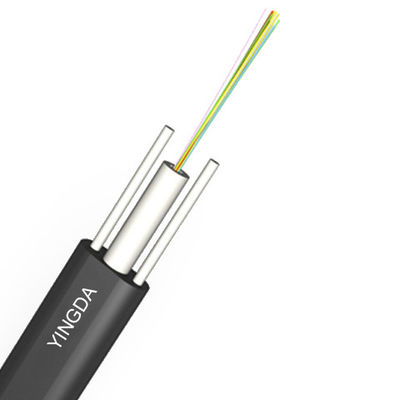

FTTH 4 Core Loose Tube Flat Fiber Optic Drop Cable PE 3.5x7.5mm Waterproof FRP



The cable put in side with 2 FRP, the optical fiber unit positioned in the Loose tube. Two parallel strength member are placed at the two sides and have loose tube to protect the inside FTTH, outside sheath is HDPE.



Fiber Optic Cable Application

  • Adopted to cabling.
  • Suitable for aerial and duct drop installation
  • Long distance and local area network communication.



ftth drop cable Features

  • Good mechanical and environmental characteristic
  • Anti-UV characteristics meet the requirements of relevant standards
  • The mechanical characteristics meet the requirements of relevant standards
  • Big capacity data transmission
  • Meet various requirements of market and clients.

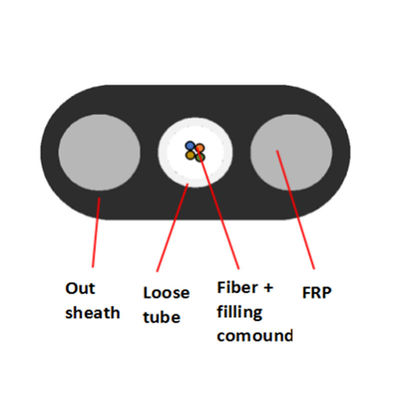

Drop Cable Structure

No.of fiber 4F
SM fiber Fiber type G657A1 Concentricity error ≤0.5um
MFD 8.6～9.8um Cladding non-circularity ≤0.7%
Cladding diameter 124.8±0.7um Fiber color standard spectrum
Loose tube Material PBT Color Natural color
Diameter 1.8±0.1mm Thickness 0.2±0.05mm
Strength member Material FRP Color white
Type Ф2.0mm Qty 2
Out sheath Material HDPE Color black
Diameter 3.5*7.5(±0.3mm) Thickness ≧1.0mm



Cable Mechanical and Environment Characteristics

Tensile strength Long term(N) 40N
Short term(N) 80N
Crush load Long term(N) 500N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃～+70℃



Optical Fiber Data

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.4/0.3 ≤3.0/1.0 ≤3.0/1.0
