Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw

Brand Name: YINGDA
Model Number: JW3105P
MOQ: 1 piece
Price: Negotiable
Delivery Time: 3 days
Detail Information
Place of Origin:
china
Certification:
ISO
Central Wavelength:
650nm±10nm
Output Power:
1mw, 3mw, 5mw,10mw On Actual Needs
Operating Model:
Both CW And Pulse Available
Dimension:
Diameter 15X180 Mm
Net Weight:
120g(Without Battery)
Emitter Type:
FP-LD
Optical Connector:
2.5mm Universal Connector Or 1.25mm
Power Supply:
2 X AA Alkaline Batteries
Packaging Details:
1pc per box
Highlight:

fiber optic tool kits

,

fiber termination kits

Product Description



Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw





The JW105 Pentype VFL is specially designed for field personnel who need an efficient and

economical tool for fiber tracing, fiber routing and continuity checking in optical network.



It includes:

  • Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
  • Finding the faults of OTDR dead zone
  • End-to-end visual fiber identification



Features

  1. 2.5mm universal connector, for 1.25mm connectors,
  2. FC (Male)-LC (Female) convertor can be provided on requests.
  3. Operates either in CW or Pulsed
  4. Constant output power
  5. Lower Battery warning
  6. Long battery life (up to 60 hours)
  7. Crash-proof and dust-proof design for laser head
  8. Laser case ground design prevents ESD damage
  9. Burning testing to ensure the reliability.
  10. Portable and rugged, easy to use
  11. Guarantee to CE standards include EMC, EMI, ROHS



Specifications

Type

JW3105 Pen-type Visual Fault Finder

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for 1mw, 3mw, 5mw,10mw on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2  AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hour

650nm@3mw ≥50hour

650nm@10mw≥15hour

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature

-10~+45 (℃)

Storage Temperature

-40~+70 (℃)

Dimension (mm)

¢15X180

Weight

120g(Without battery)



RemarkColors can be customized on request when meets certain qty!



Standard Packages

MODEL

INCLUDES

JW3105 P

Main Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and

Soft Carrying case.

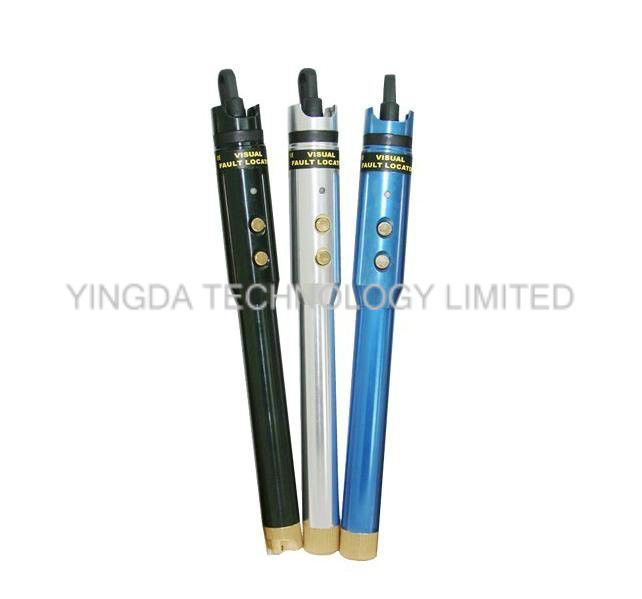

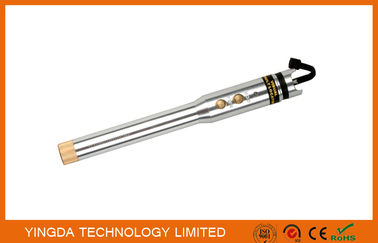

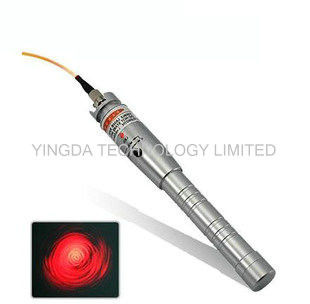

Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw 0Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw 1Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw 2
