YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M

Name: YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO-MPO 48cores
Price: 49.20 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	MPO-MPO 48cores
MOQ:	100PCS
Price:	0.2USD-100USD
Delivery Time:	2-3working days after received your payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Cable Diameter:

3.0mm

Cable Jacket:

LSZH

Cable Length:

As Your Requirement

Connector Type:

MTP/MPO

Durability:

1000 Times

Fiber Count:

Fiber Mode:

Single-Mode Or Multi-mode

Fiber Type:

SM OM2 OM3 OM4

Insertion Loss:

≤0.2dB

Operating Temperature:

-20℃~+70℃

Product Name:

MTP MPO Cable

Return Loss:

≥20dB

Storage Temperature:

-40℃~+85℃

Cable Type:

Breakout Cable

Packaging Details:

Packed in plastic bag, in a shipping outer carton box.

Supply Ability:

40,000pcs per month

Highlight:

20M Fiber Breakout Cable

MPO Fiber Breakout Cable

48cores Fiber Breakout Cable

Product Description

YINGDA Fiber Optic Manufacturer MPO Optical Connector Fanout Cable 48cores SM MM for Network

The MPO cables for connecting to the network supplied by Inda are of superior quality and have sufficient stock. If you need them, you can come to inquire about the price and data information.

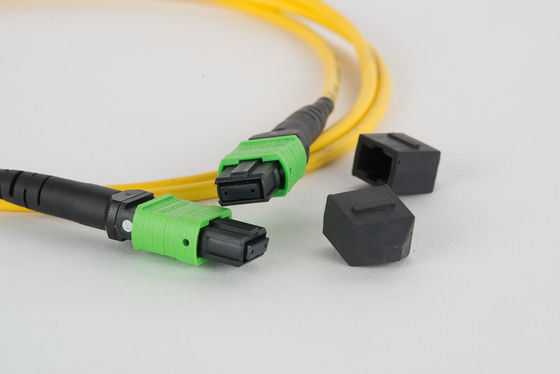

Fiber MPO Cable Product Structure

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 0

MPO optic Connector Features

Customized, high adaptability
Different fiber cores and cable structures for different installation
Improved and simplified cabling, reduce cabling spacing
Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS
48cores fanout type patch cord
Cable length as your request.

Fbier MPO Unique Service:

SAMPLES for quality testing are available
5days leading time if order quantity < 100pcs
Drawing, Specification, Test Report can be sent at any time if request
Quality complaint will handle in 24 hours by our After-sales Service Dept

Associated Standards

Meets IEC Standard 61754-7& JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
- Optical Internet working Forum (OIF) Compliant
- Infiniband Compliant
- Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP

Applications

Optical switching inter-frame connections
High fiber density card edge access
Array trunk cables
Data center cabling

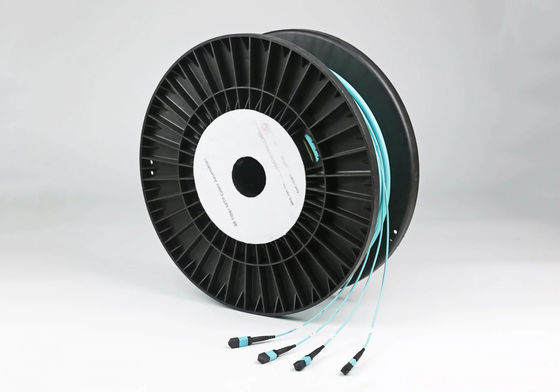

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 1

Specifications

Insertion loss (dB)	SM standard	SM Elite	MM standard		MM Elite
Return loss (dB)	≤0.7	≤0.35	≤0.7		≤0.35
Durability (dB)	≥60		≥60
Tensile strength (kgf)	10
Working temperature (°C)	-20~+70
Measurement wavelength (nm)	1310		850
Geometry Parameters
Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of curvature (mm)	500	-	50	-
Polishing angle	0-0.2	0+0.2	8-0.2	8+0.2
Item	Min		Max
Fiber height (nm)	1000		3000
Max fiber height error (nm)	600
Adjancent fiber height error (nm)	-300		+300
Avg. Fiber height error(nm)	-300		+300
Central concave (nm)	300

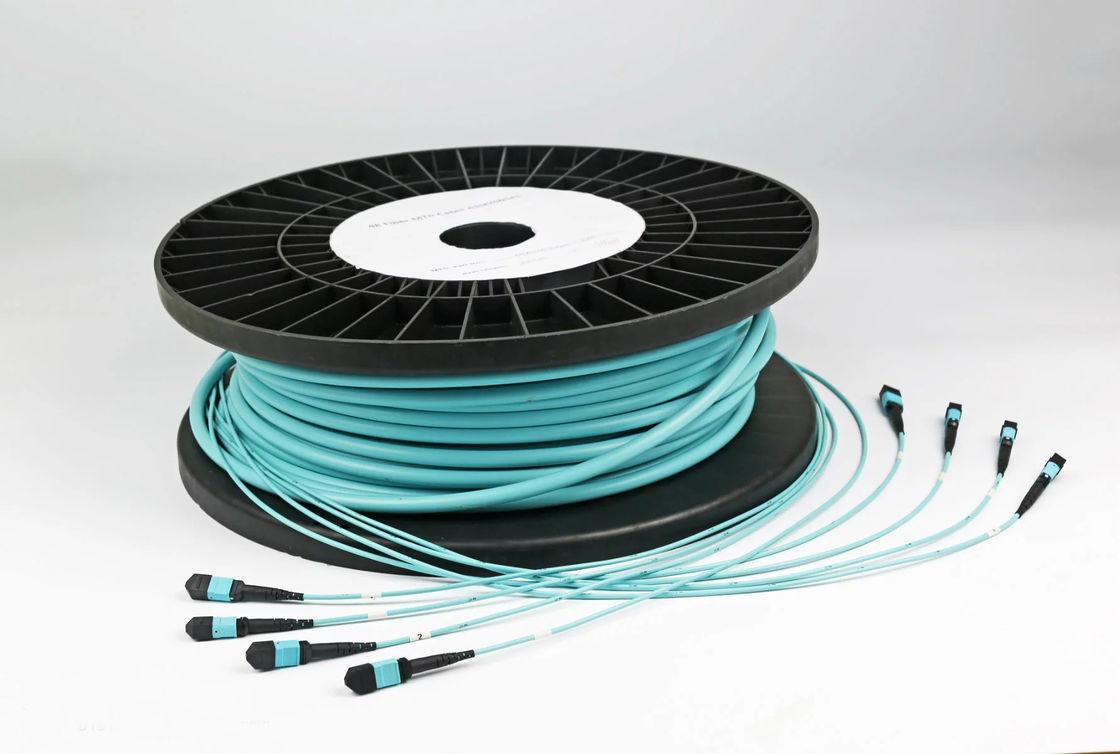

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 3

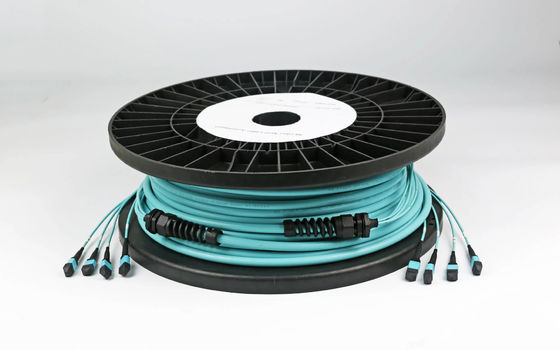

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 4

More fiber optic MPO MTP product show:

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 5

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 7

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 9

Polarity A B C

MPO fiber optic Pack Information

Plastic bag or drum, all MPO MTP products are 100% test and the test report will be included in the bag before delivery.

YINGDA Fiber Optic Manufacturer MTP MPO Connector Fiber Breakout Cable 48cores SM MM for Network 20M 12
