YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution

MOQ: 50PCS
Price: 0.2USD-100USD
Standard Packaging: Packed in plastic bag, in a shipping outer carton box.
Delivery Period: 2-3working days after received your payment
Payment Method: T/T or western Union
Supply Capacity: 40,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
MPO-MPO patch cord
Cable Diameter:
3.0mm
Cable Jacket:
LSZH
Cable Length:
1m
Connector Type:
MTP/MPO
Durability:
1000 Times
Fiber Count:
12
Fiber Mode:
Multi-mode
Fiber Type:
SM OM2 OM3 OM4
Insertion Loss:
≤0.2dB
Operating Temperature:
-20℃~+70℃
Product Name:
MTP MPO Cable
Return Loss:
≥20dB
Storage Temperature:
-40℃~+85℃
Warranty:
5 Years
Highlight:

MPO Fiber Optic Patch Cable

,

High Density Fiber Optic Patch Cable

,

OM4 Fiber Optic Patch Cable

Product Description

YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution

As a provider of MPO, we always focus on customer needs, and prioritize applications in data centers and customer customization needs.


Product Structure

YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 0

Features

  • Customized, high adaptability
  • Different fiber cores and cable structure for different installation
  • Improved and simplified cabling, reduce cabling spacing
  • Complied with IEC61754-7, Telcodia GR-1435- CORE, RoHS


Unique Service:

  1. SAMPLES for quality testing are available
  2. 5days leading time if order quantity < 100pcs
  3. Drawing, Specification, Test Report  can be sent at any time if request
  4. Quality complaint will handle in 24 hours by our After-sales Service Dept


Associated Standards


  1. Meets IEC Standard 61754-7& JIS C5982
  2. Structured cabling per TIA-568-C
  3. Parallel Optics
  4.  - Optical Internet working Forum (OIF) Compliant
  5.  - Infiniband Compliant
  6. Infiniband
  7. - 10G Fiber Channel Compliant
  8. - 40G and 100G IEEE 802.3
  9. - QSFP

Applications

  • Optical switching inter-frame connections
  • High fiber density card edge access
  • Array trunk cables
  • Data center cabling

YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 1YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 2


Specifications

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis

Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300

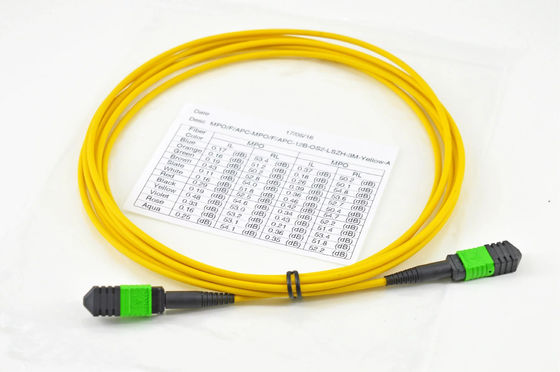

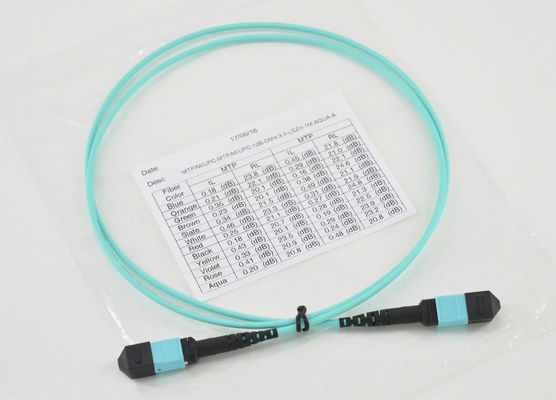

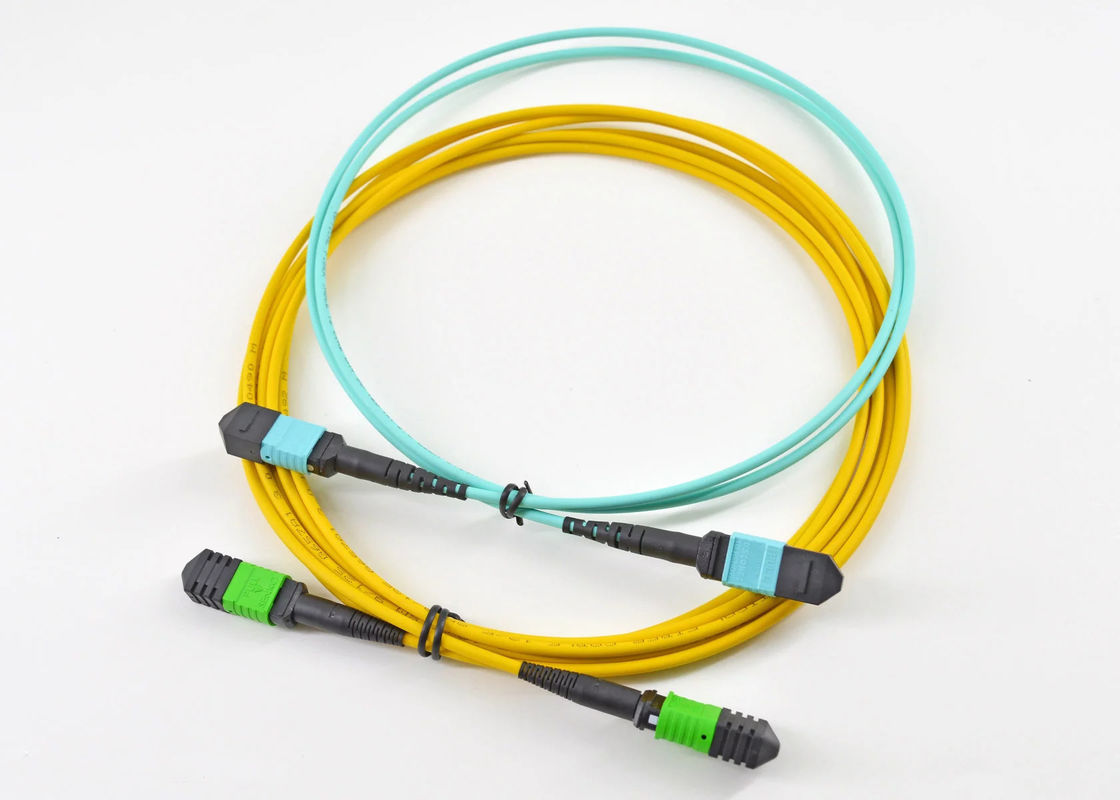

More product show:

YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 3YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 4

 YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 5YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 6


YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 7YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 8



Polarity A B C


YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 9

Pack Information

Plastic bag, all MPO MTP products are 100% test and the test report will be included in the bag before delivery.

YINGDA High Density MPO SM OM2 OM3 OM4 Fiber Optic Patch Cable for High-Performance Network Solution 10
