16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted

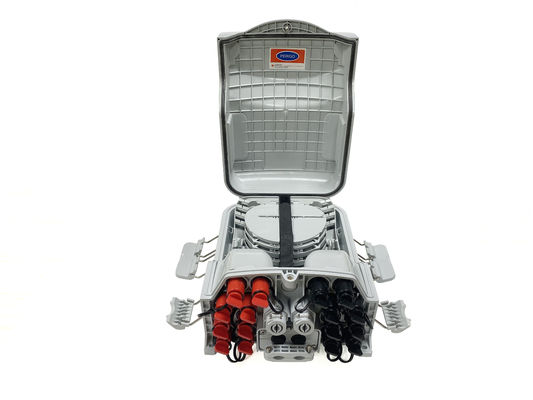

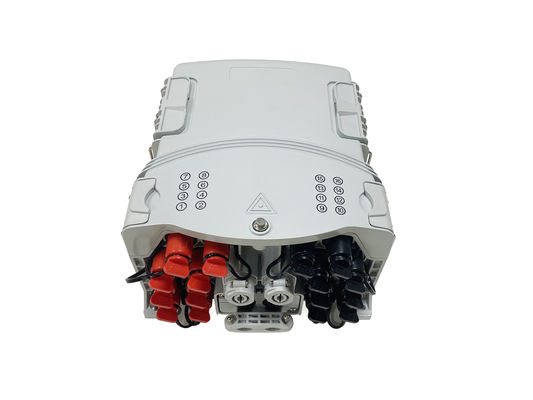

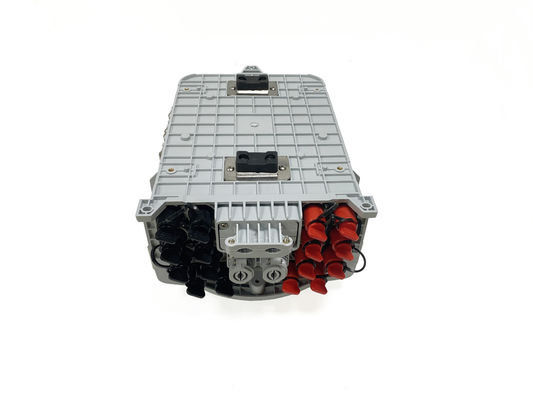

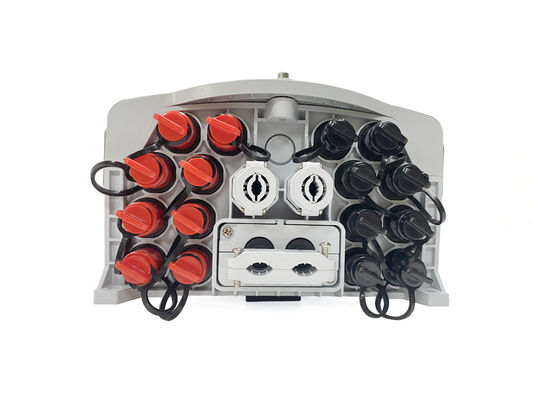

  • 16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted
  • 16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted
  • 16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted
  • 16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted
Place of Origin china
Brand Name yingda
Certification ISO, ROHS, SGS
Model Number CTO-16DR
Minimum Order Quantity 1pc
Price negotiable
Packaging Details 1 pc / carton box, 10 pcs / master box
Delivery Time 5-8days
Payment Terms T/T, Western Union
Supply Ability 5000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color Grey/Black
Dimension 319.3*214*133mm Application Ftth Distribution Box
Installation Method Wall Mount, Pole Mount Enclosure Box Type Fiber Optic Splitter Box Network
Splitter Qty 2pcs 1:8 Or 1pc 1:16 Splitter Cable Outlet Port 16pcs Mini SC Waterproof Adapter
Adapter 16pcs Mini SC Adapter Use For Indoor And Outdoor
Waterproof IP65 Max Capacity Splice 48cores
High Light

IP65 Fiber Optic Splitter Box

,

Network Fiber Optic Splitter Box

,

16 Ports Fiber Optic Splitter Box
Leave a Message
Product Description

CTO-16DR  Optical Network Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 016 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 1





Features

1. Total enclosed structure.

2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.



Top cover with laser mark, and large space for        4pcs buckles, better for waterproofing and sealing performance.

logo or wiring diagram printing.

  16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 2         16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 3





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification



1. Environmental requirement

Working temperature: -40℃～+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

2. Main technical datasheet

Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

3. Thunder-proof technical datasheet.The insulation resistance between the grounding device and the metal parts of the box is no less than 2 X 104 MΩ/500V (DC); IR≥2 X 10 4MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

Model CTO-16DR
Dimension (A*B*C) /mm

319.3*214*133
Installation size (D*E/F*G)/mm 52*166*166
Max.Capacity 48 cores (single fiber)
Cable entry 2big round: ᴓ8~14mm, branch cable:ᴓ16mm
Cable exit 8pcs Mini SC adapters
Splitter quantity 1x2, 1x4, 1X8,1X16 mini splitter
Waterproof grade IP65
Material PC+ABS
Color Grey, black





Standard accessory

expansion screws,metal key,nylon tie, sleeve,buffer tube

16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 4

Mounting method:

16 Ports Mini Sc Connector Fiber Optic Splitter Box Abs Pc For Network Outdoor Ip65 Pole Mounted 5









Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box
