4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in

  • 4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in
  • 4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in
  • 4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in
  • 4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in
Place of Origin china
Brand Name yingda
Certification ISO
Model Number GPSR-1U-SA144
Minimum Order Quantity 10PCS
Price negotiable
Packaging Details 1pc per box, 1pcs per carton box
Delivery Time 15-18 days
Payment Terms T/T, Western Union,paypal, L/C
Supply Ability 10000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cold Rolled Steel Cable Entry 4 Ports At Back Diameter 20mm
Cable Ouputs 144 Port SC Simplex Adaptor Color Black
Size 430*300*4U Mm Type Rack Mount Patch Panel
Rack Size 19 Inch Adapter SC, LC, FC,ST, E2000, Etc
Box Open Front Clip Tray Type Drawer 19" Patch Panel
Splice Tray Quantity 2pc 24cores Tray Features Sliding Out Type ODF
Application Optical Distribution Frame Key Word Patch Panel
Adapter Panel 12pcs Removeable Adapter Panel For SC/LC
High Light

4U Fiber Optic Patch Panel

,

144Core Fiber Optic Patch Panel

,

Sliding Drawer Fiber Patch Panel
Leave a Message
Product Description

4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in Rack Mount For Date Cent





Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.

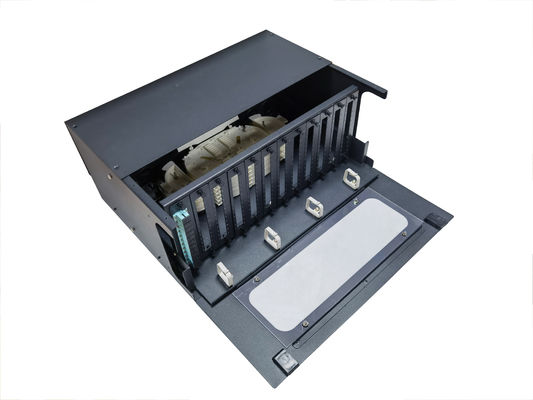

The main features of this rack mount patch panels is the metal sliding fusion tray which can be adjusted to various working angles to facilitate installation and maintenance works. Other than this, the rack mount patch panels have a front transparent cover take off to support installation and maintenance works.

4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 0

Specification



MODEL GPSR-4U-144SA
Dimension 430*300*4U mm
Max capacity 144cores
Material 1.2mm cold rolled steel
Cable entry port 4 round port with rubber dia.20mm
Cable exit port SC simplex coupler
Adapter quantity 144pcs SC/APC,UPC.OM3
Material coating Powder
Operating temperature -10~+85°C
Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C,CEA/EIA-310-E, ANSI/TIA/EIA-606-A,GR-449-CORE,RoHS
IP Rating IP20
Connector indicators
Insertion loss <0.3dB
Return loss >65dB
Mating durability 500times
Wavelength 850-1550nm



Pack information

4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 1

Quantity/carton box Carton size Weight/carton box
1pc 47*35*28cm 10kg



Product Details:



4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 2

Sliding patch panel is specially design for rack mount 19inch with 2 mounting ears at both sides; the enclosure will be closed when delivery, on operationn, pls open the clip at front door, then can draw out of the cable management plates.



4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 3

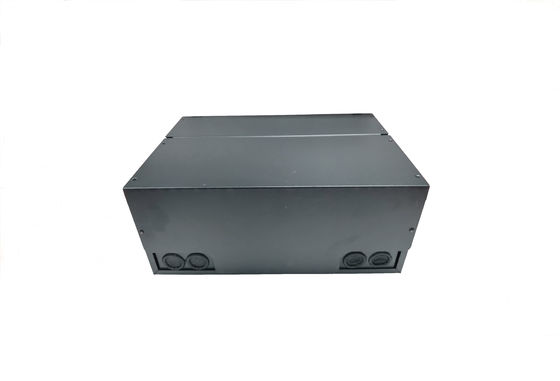

Patch panel have 4standard cable ports at back with cable clamps and fixtions, which can prevent dust proof, anti-mouse, and prevent cable loose or fiber break during long time transportation.



4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 4

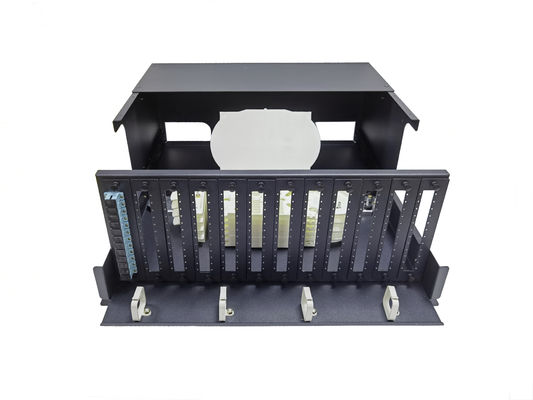

The drawer type 19inch ODF patch panel is quite beautiful with large fiber managment area, and metal sliding tray, brand new ABS 24cores fusion splice tray, the adapter plate can maximum hold 48pcs SC adapter or LC duplex adapters.



4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 5

The rack mount patch panels have a front transparent cover for easy installation and maintenance work.4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 6

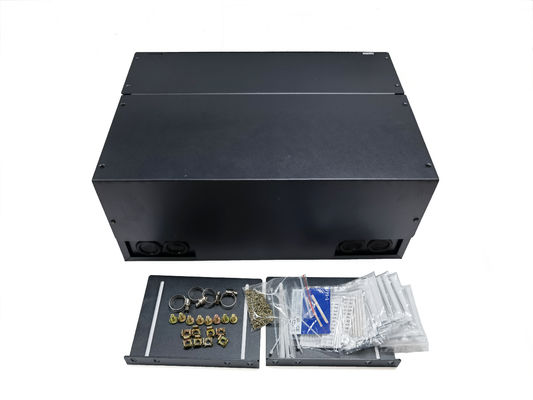

Standard accessory

4U 144 Core Sliding Drawer Fiber Optic Patch Panel With Removeable Adapter Panel 19in 7

Item Qty Item Qty
Mounting ears 1pair Heat shrink protection tubes Configuration on request
Number mark Configuration on request Nylon tie Configuration on request
Mounting screws 6pcs Buffer tube 1pc





Yingda Offer all kinds of ODF box, welcome inquiry.
