8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network
  • name
  • name
  • name
  • name

8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network

MOQ: 1pc
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / carton box, 10 pcs / master box
Delivery Period: 5-8days
Payment Method: T/T, Western Union
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, ROHS, SGS
Model Number
CTO-8DR
Material:
ABS+PC
Color:
Grey/Black
Dimension:
319.3*200*97.5mm
Application:
Ftth Distribution Box
Installation Method:
Wall Mount, Pole Mount Enclosure
Box Type:
Fiber Optic Splitter Box Network
Splitter Qty:
1pc 1:8 Splitter
Cable Outlet Port:
8pcs Mini SC Waterproof Adapter
Adapter:
8 Pcs Mini SC Adapter
Use For:
Indoor And Outdoor
Waterproof:
IP65
Highlight:

Fiber Optic Splitter Box IP65

,

8 Ports Fiber Optic Box

Product Description

CTO-8DR  Optical Network Box



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 08 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 1





Features

  • Total enclosed structure with key and buckles.
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

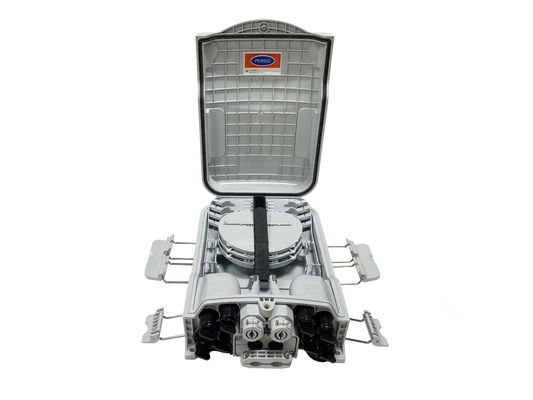

Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​



8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 2  8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 3





Application

  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

Specification

Model CTO-8DR
Dimension (A*B*C) /mm 319.3*200*97.5
Installation size (D*E/F*G)/mm 52*166*166
Max.Capacity 36 cores (single fiber)
Cable entry 2big round: ᴓ8~14mm, branch cable:ᴓ16mm
Cable exit 8pcs Mini SC adapters
Splitter quantity 1x2, 1x4, 1X8 mini splitter
Waterproof grade IP65
Material PC+ABS
Color Grey, black





Standard accessory

expansion screws,metal key,nylon tie, sleeve,buffer tube

8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 4

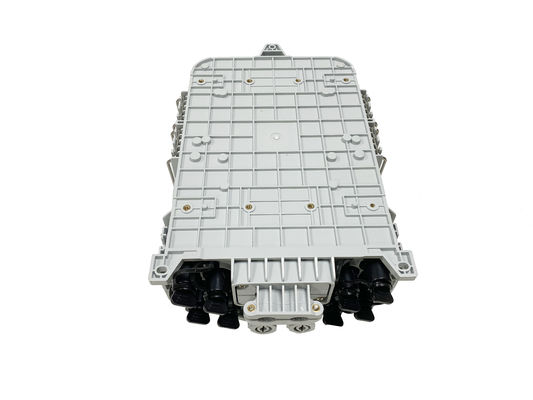

Mounting method:

8 Ports Hardened Adapter Connector Outdoor Fiber Optic Splitter Box IP65 For Network 5









Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box
