CTO-8L Optical Splitter Distribution Box

CTO-8L Optical Splitter Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system,maximum 16 households end termination.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports,mini sc adapters,opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.

Main sell point:

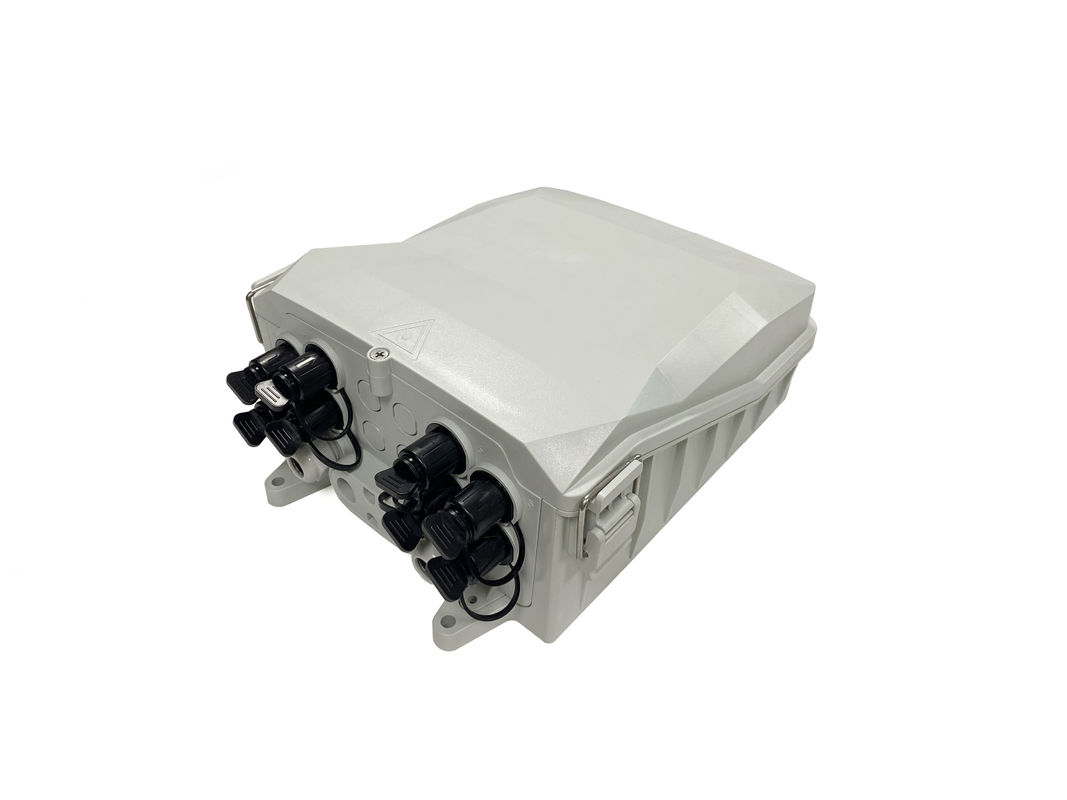

This fiber optic distribution box use the same main body and cable inputs, but cable outputs can do various types:

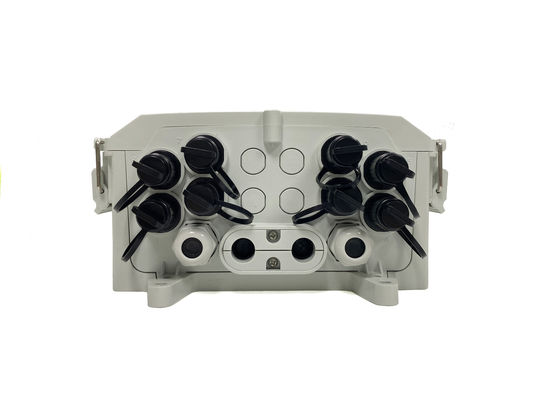

Round Drop Cable Ports, Mini SC Adapter, Opti-Tap Mini SC Adapter, Waterproof Fast Connector Exit etc.

Easy to installation, the adapter panel can be removable.

Features

• Box is with small special lock with 2 clips and 1 screw rod;
• High strength engineering plastic, whole box is enclosed with waterproof circle, protection class IP65;
• Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance;
• 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix and winding,both sides with adapter holders;
• All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion;
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
• Top cover with laser mark, and large space for logo or wiring diagram printing.

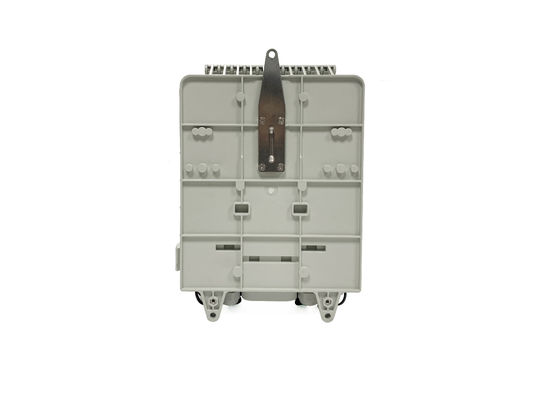

• FTTH outdoor wall mounted, pole mount,aerial mount;
• It is applicable for outdoor cables or indoor soft cable;
• The box can use for a minimum period of 20 years;

Top cover with laser mark, and large space for        2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix

logo or wiring diagram printing.                                   and winding,both sides with adapter holders​

Application

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

Specification

Standard accessory

expansion screws,metal key,nylon tie, sleeve,buffer tube

Product Details

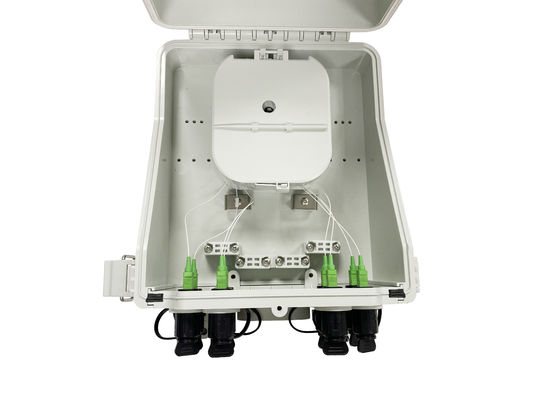

3 Layers inner parts: adapter plate /   fusion splice tray / fiber storage and management area
