ODF Welding Casssette Fiber Optic Distribution Box Fiber Optic Splitter Box
  • name
  • name
  • name
  • name
  • name
  • name

ODF Welding Casssette Fiber Optic Distribution Box Fiber Optic Splitter Box

MOQ: 10pc
Price: negotiate
Delivery Period: 5-8days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
no
Certification
ISO CE
Model Number
no
Application:
Data Center/Telecommunication/CATV/FTTH
Connector:
SC/FC/ST/LC
Connector Type:
LC/SC/FC/ST/MU/MTRJ/MPO
Fiber Length:
1m/2m/3m/5m/10m
Material:
Metal
Size:
1U/2U/4U/6U/8U/12U/16U/24U/32U
Highlight:

ODF Fiber Optic Distribution Box

,

Welding Casssette Fiber Optic Distribution Box

,

Welding Casssette Fiber Optic Splitter Box

Product Description

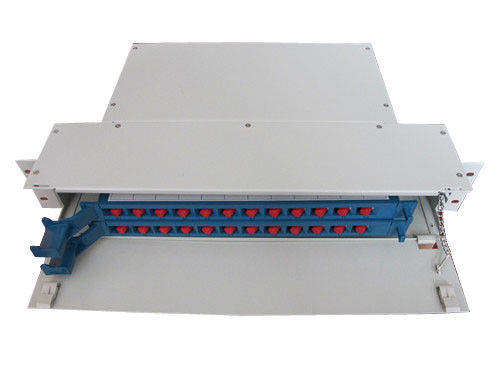

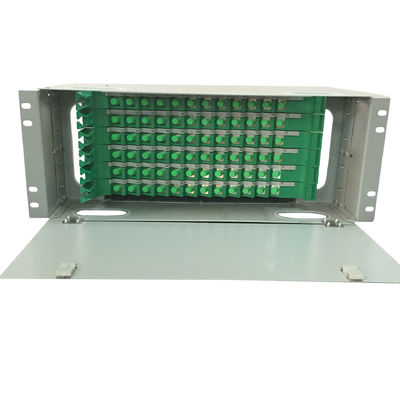

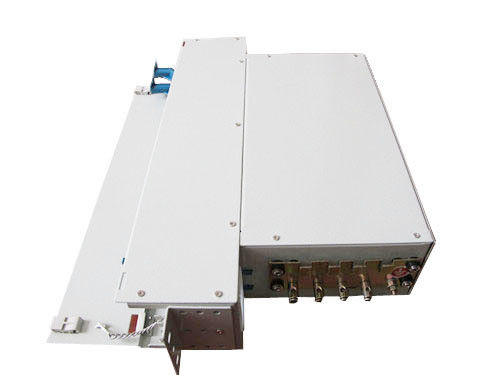

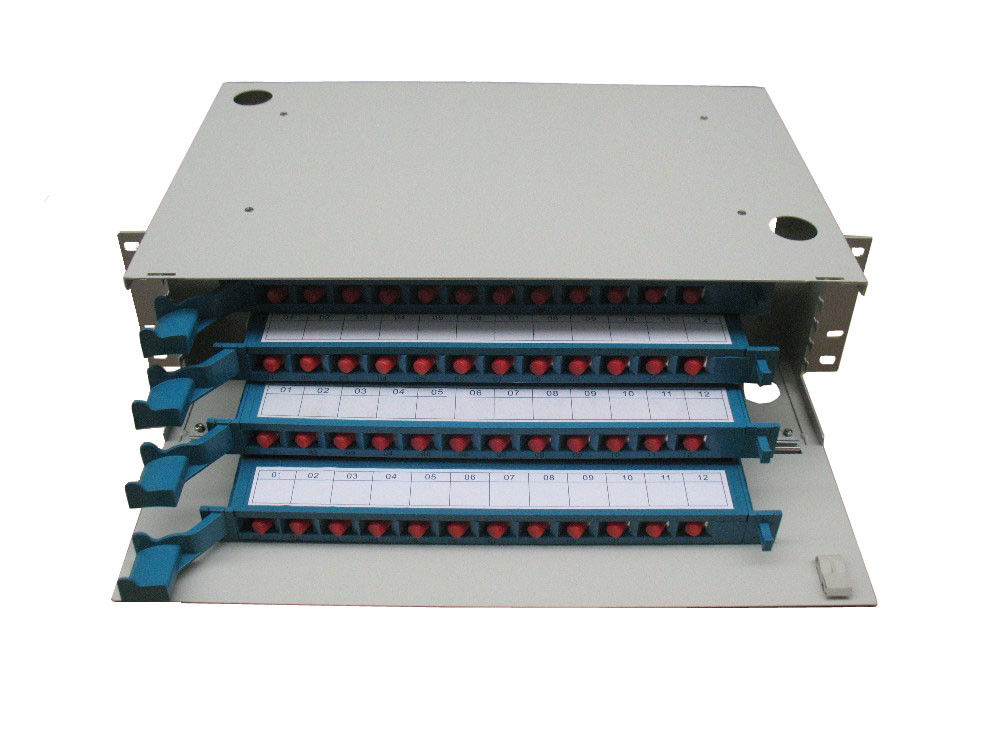

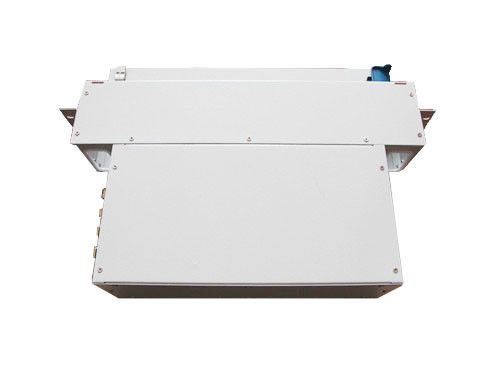

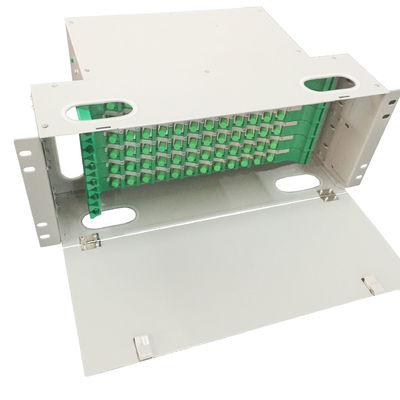

19’ ODF WELDING CASSSETTE

MODEL:GB-A

ODF Welding Casssette Fiber Optic Distribution Box Fiber Optic Splitter Box 0

The series equipped with ABS welding tray, Integrity with perfect appearance, easy for installation of inlay, convenient to expand capacity; obliquity of adapter is 30°which ensure the bend radius of patch cord and avoid laser burning eyes; several different kinds of splicing and distribution mark, easy to make record of fusion and distribution.



Compliance

  • ISO/IEC11801:2008
  • ANSI/TIA/EIA 568-C.3



Features

  • 19 “standard installation, suitable for a variety of rack, cabinet installation
  • Pull-out design, set field welding, welding wiring module integration
  • Each tray can be tabbed to install 12/24pcs of FC, LC duplex, SC, and ST adapters
  • Wide working space, Individual distribution panel for efficient work
  • OEM, customer logo can be print or with stickers
  • Fully load with adapter and pigtails is available at factory



Specification

Box Material Cold rolled steel with electrostatic spraying
Distribution Board Material ABS

Item Dimension (mm)

(length*width*height)

 32C 430*210*3U
64C 430*210*4U
128C 430*210*8U
256C 430*210*14U
512C 430*210*16U
Maximum bending space (mm) ≥30
Max Fibre Count 576
Adapter SC
Insertion loss <0.3dB
Return loss ≥35dB(PC); ≥50dB(UPC); ≥65dB(APC);
