Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management

MOQ: 10pc
Price: 0.2USD-100USD
Delivery Period: 5-8days
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO CE
Model Number
no
Fiber Type:
OM3,OM4,SM/MM/OM3,OM2,OM1
Certification:
ISO,CE
Connector:
MPO,SC,ST,FC
Product Name:
MPO Cassette
Fiber Core:
8 Core,12core,24core,12 Core,48core
Highlight:

Plating MTP MPO Cassette

,

MTP MPO Cassette For Fiber Management

Product Description


Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management


The MPO module Cassettes are mainly used to divide the 12 or 24 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.

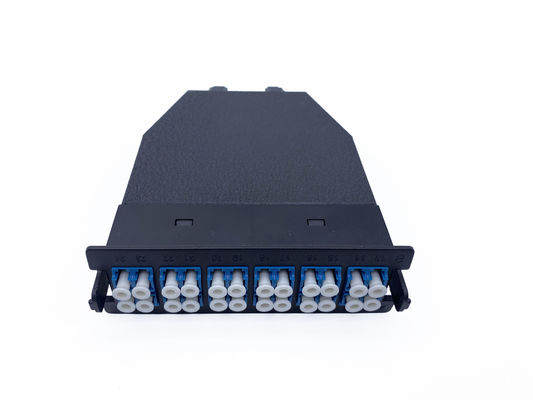

Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 0



Features MTP Cassette

Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic plating.

surface, outstanding in appearance and users friendly.

MPO face plate can be upgraded easily.

All the front ports are with mark no# , easy to identify.

Quick and easy installed, flexible in configuration and easy to management



MPO Connector Specification

Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300




LC SC FC fiber optic connector Specification

Fiber mode Single mode
Multi mode
Connector polishing Pc Apc Pc
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850



MPO Cassette Module Product Dimension

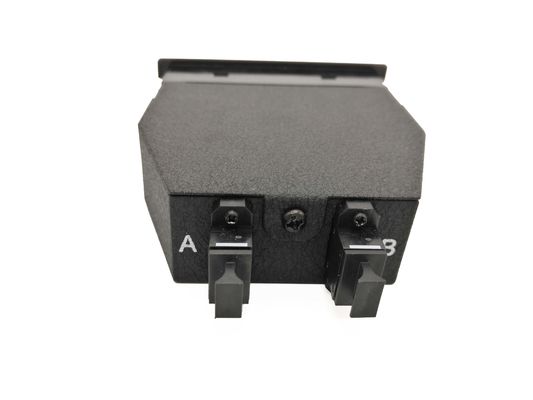

Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 1



Order information

PART NO. NAME COLOR PACK
YDMPO-12-CM 12core MPO cassette (empty box) Black 1pc
YDMPO-24-CM 24core MPO cassette (empty box) Black 1pc




MPO MTP Production line in YINGDA

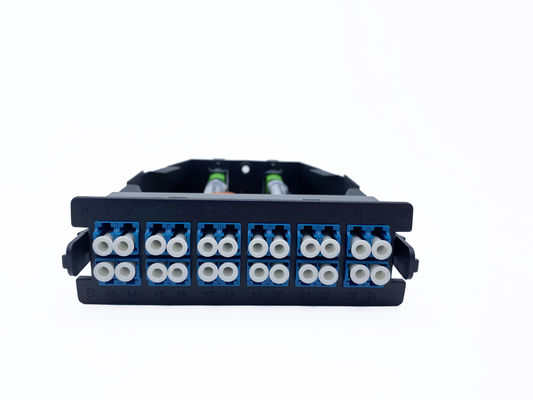

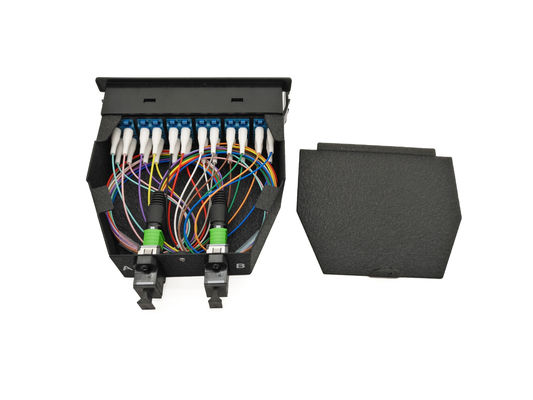

Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 2Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 3

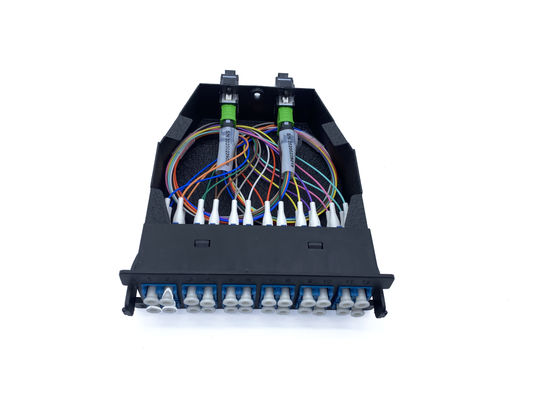

Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 4Plating MTP MPO Cassette With SM/MM Elite Insertion Loss For Fiber Management 5

YINGDA provide MPO patch cord, MPO adapter,MPO fiber optic cassette module,mpo breakout cable ect.
