High Light
fiber optic tool kits
,fiber polishing film
-
ConnectorSC FC LC ST
-
Fiber Count1
-
Insertion Loss< 0.2 DB
-
Fiber TypeSM Singlemode
-
PackageBox
-
Cable ColorYellow
-
Cable Diameter2.0mm
-
Temperature-40~+80°C
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO SGS ROHS
-
Model NumberLB-ST-LC-S-2
-
Minimum Order Quantity10pcs
-
Pricenegotiable
-
Packaging Details1pc/box
-
Delivery Time7days after payment
-
Payment TermsWestern Union, T/T
-
Supply Ability5,000 pcs per month

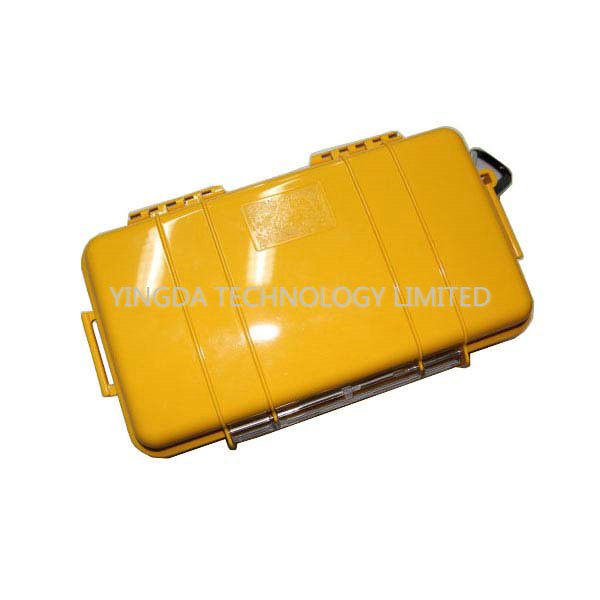

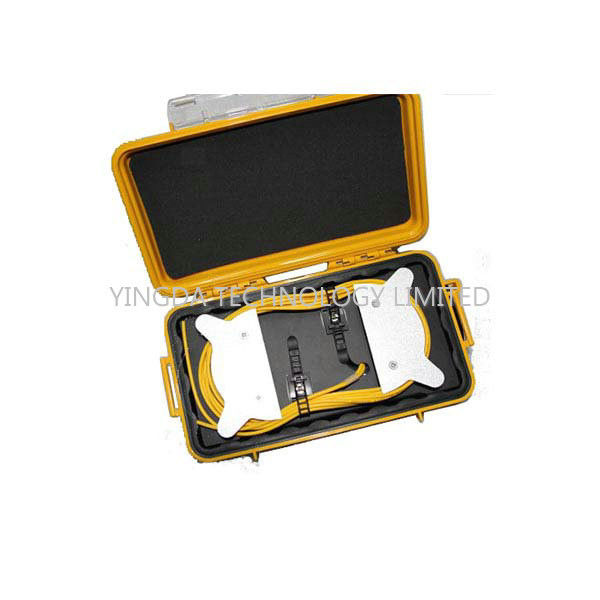

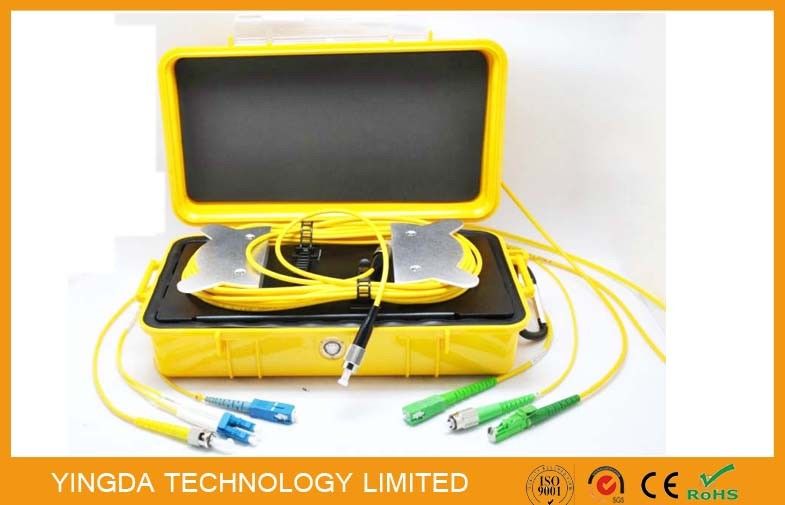

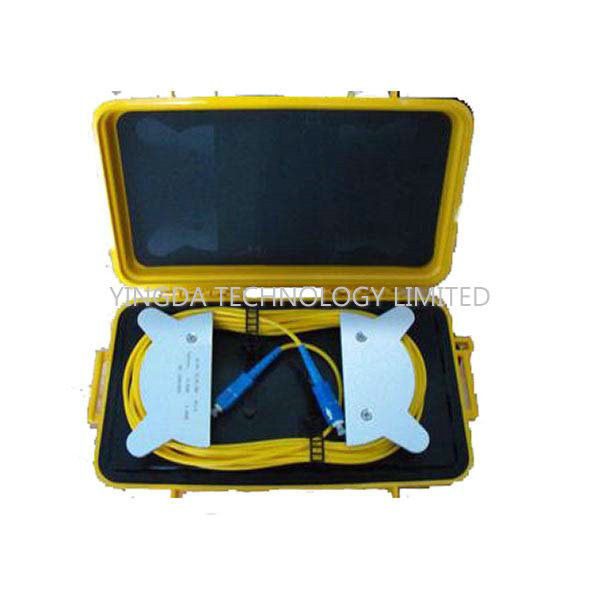

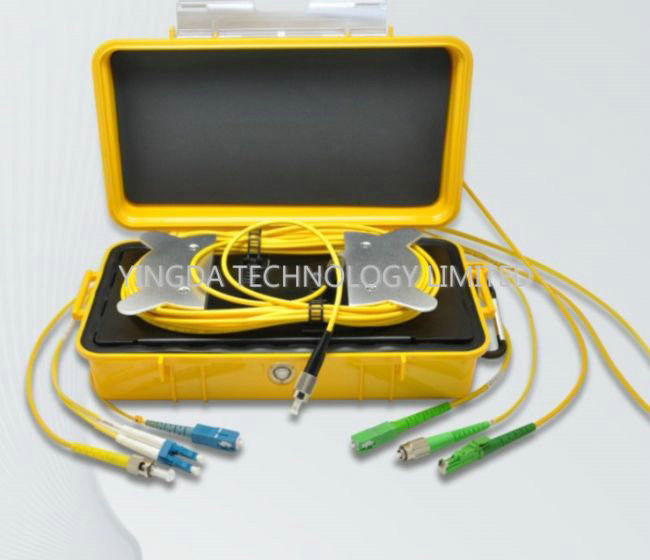

Fiber Tool Kits Launch Cable Box
Fiber Tool Kits FC LC Fiber Optic OTDR Launch Cable Box, Dead Zone Eliminator Fiber Rings
The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to help
minimize the effects of the OTDR’s launch pulse on measurement uncertainty. Available in many
different configurations: SC, FC, LC, ST and fiber lengths:500M, 1KM, 2KM... etc.
Features
- Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature .
Specifications
|
Length*Width*Height |
9.37" x 5.56" x 2.62" |
|
Material |
SR Polypropylene |
|
Color |
Black/Yellow |
|
Net Weight |
0.75 kg (without fiber) |
|
Operating temperature |
Operating temperature |
|
Typical Loss |
< 1dB @ 1310nm for 1000 meters |
KEEP NOTES:
- Water and dust prove allowing the unit to be taken into almost any environment
- Case can house up to 2,000meters.
Ordering Information
LB-A-B-C-D
|
A = Input connector |
B = Output connector |
C = Fiber |
D = Length(km) |
|
FC |
FC |
S–Single mode fiber |
0.5=0.5km |
|
ST |
ST |
M6–Multi mode fiber (62.5/125) |
1=1km |
|
SC |
SC |
M5–Multi mode fiber (50/125) |
2=2km |
|
FCA – FC/APC |
FCA – FC/APC |
|
|
|
SCA – SC/APC |
SCA – SC/APC |
|
|
|
LC |
LC |
|
|
|
MU |
MU |
|
|
