19" Fiber Optic Patch Panel

Place of Origin china
Brand Name YINGDA
Certification ISO, SGS
Model Number ODF-UT24-SC/FC
Minimum Order Quantity 50PCS
Price Negotiable
Packaging Details 1 pc / carton box
Delivery Time 3-5 days
Payment Terms T/T or western Union
Supply Ability 50,000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 24 Fibers Dimension 485*300*75 Mm
Weight 4.7 Kgs Connector Type FC/PC,SC/PC,SCAPC,FC/APC,LC/APC,ST/UPC
Welding Tray Qty 2pcs X12 Fibers Splice Tray Capacity 12 Fibers
Pigtail Type Sc Fc Lc St Pigtail 0.9mm1.5meter Material Cold Rolled Steel Sheet
Metal Thickness 1.0 Mm Color White
High Light

rack mount odf

,

optical distribution frame

Leave a Message
Product Description

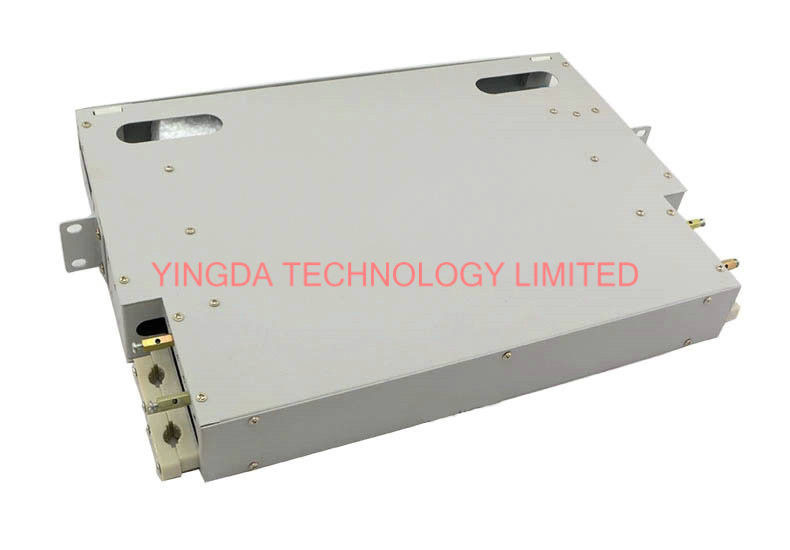

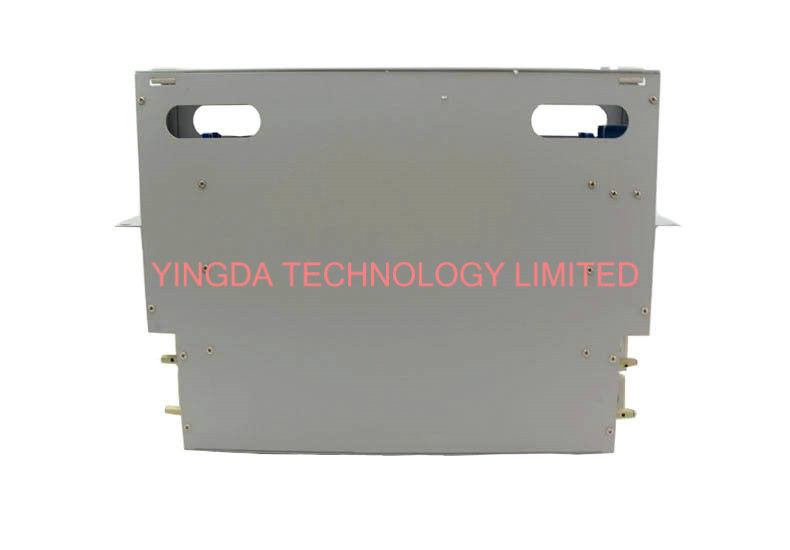

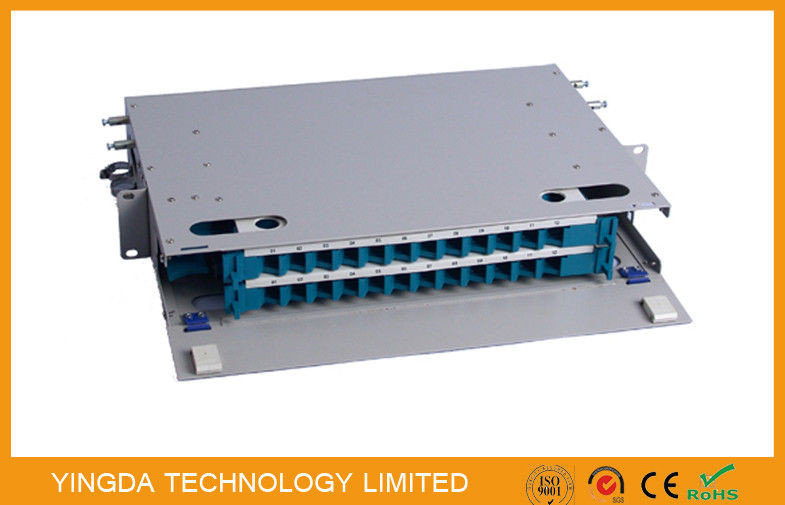

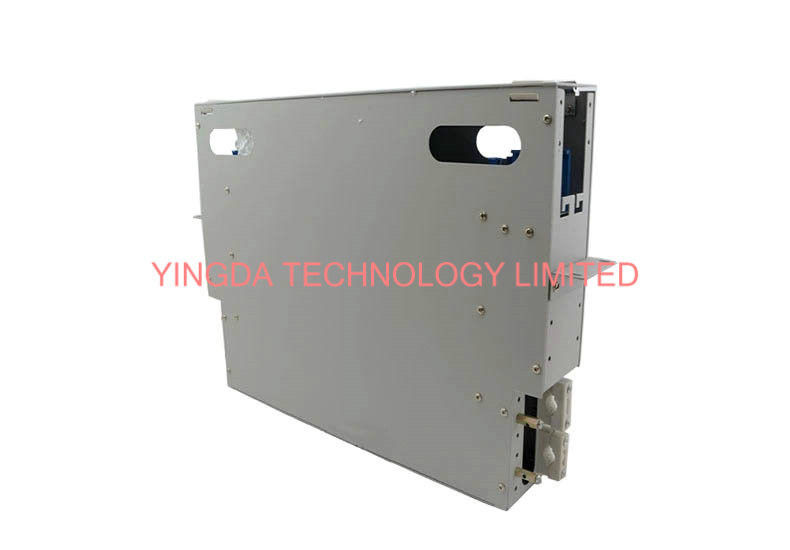

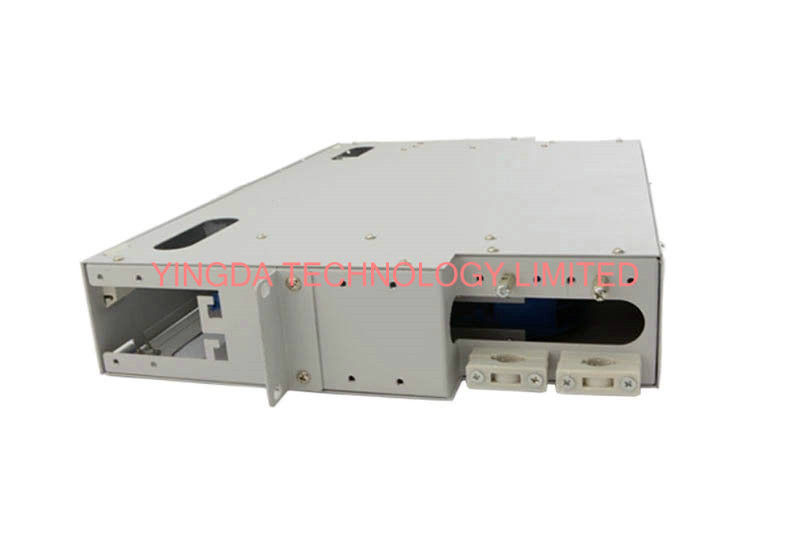

19" 24 Core Fiber Optic Patch Panel, 24 Port SC ODF Cable Distribution Box Cassette





24Cores ODF optical fiber distribution frame is standard 19" inch chassis, capacity 24Cores,

It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

distribution in one set, each fused distribution module can be individually extracted, satisfy

the need of on and off the frame operation.



Large capacity optical distribution frame also are good operation, fused distribution module

can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber

optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can

be directly welded.





Main Technical Parameters

  1. 19 inch rack standard use
  2. Environment temperature: -5 ~+45°C
  3. Relatively humidity:≤85% (+30°C)
  4. Atmospheric pressure:70~166 KPa
  5. Connector attenuation (Interchangeable and repeat): ≤0.5dB
  6. Insertion loss: ≤ 0.3dB
  7. Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
  8. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC),
  9. 1min no breakdown, no arc
  10. Isolation resistance between high voltage protection place and distribution frame: ≥
  11. 100MΩ/ 500V (DC)
  12. By cascading 12 port splice integration module, configurable 12-144 core, 12 core
  13.  per tray
  14. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure
  15. the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.



Structure features



  • Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
  • The downward and the side door use imported lock
  • The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
  • Configure reinforced core and cable fixed seat,complete accessories



Performance advantage

  • Good sealing performance, flexible configuration, quick installation
  • Set  three functions: the optical fiber splice, cable storage, cable distribution in one set
  • Easy operation, reliable grounding, protect the safety
  • The full protection of the jumping fiber, ensure the bending radius ≥ 40mm



24 Cores UNIT BOX Standard package



Box body

1pc

Screws

4pcs

Sleeve (40/45/60mm)

24pcs

Buffer tube

1pc

Welding module tray 12core

2pcs



Details



Capacity

Spare parts

Size/mm

Net weight/kg

12 core

Splice tray, sleeve, buffer tube

485*300*50

3.9

24 core

Splice tray, sleeve, buffer tube

485*300*75

4.7

48 coe

Splice tray, sleeve, buffer tube

485*300*140

6.9

96 core

Splice tray, sleeve, buffer tube

485*300*252

11
