| Brand Name: | YINGDA |
| Model Number: | ADB-ST-RD |
| MOQ: | 100 PCS |
| Price: | Negotiable |
| Delivery Time: | 3 days |
| Payment Terms: | T/T or western Union |
Indoor FTTH Drop Cable Fiber Optic Distribution Cable FRP Steel G657A2 LSZH
Fiber channel cable Description:
This specifications covers the optical fiber cable for laying in indoor installation.
The optical fiber meets the requirements of ETISALAT specifications No: FCS-10
Single mode optical fiber characteristic:(bare fiber)
|
Item |
Value |
|
Mode field diamter @1310nm |
8.6±0.4μm |
|
Cladding diameter |
125±1μm |
|
Core concentricity error |
≤0.6μm |
|
Claddding non-circularity |
≤1.0% |
|
Primary coating diameter |
250±15μm |
|
Coating-cladding concentricity error |
≤12.5μm |
|
Fiber curl radius |
≥4m |
Transmission characteristics: (bare fiber)
|
Item |
Performance |
|
|
Attenuation |
1310nm |
≤0.40db/km |
|
Marco bending loss |
30mm |
≤0.50db |
|
Cut-off wavelength |
|
≤1260nm |
|
Chromatic dispersion |
1310nm |
≤3.5ps/nm.km |
|
Zero dispersion wavelength |
|
1300-1324nm |
|
Zero dispersion slope |
|
≤0.092ps/nm2.km |
Approved by ETISALAT small bend standards
Packing & delivery
Fiber channel cable Details
|
Item |
Value |
|
Fiber (core) |
2,1 |
|
Cable diameter (mm) |
3.1*2.0 |
|
Cable weight (kg/km) |
8 |
|
Fiber color |
1 red; 2 green |
Order information:
|
Fiber count: |
1core, 2core, 4core ... |
|
Fiber type: |
G.657A1,G.657A2 |
|
Cable diameter: |
2.0x3.1mm |
|
Strength member: |
ARP/FRP, Steel |
|
Cable weight |
8kg/km |
|
Jacket color: |
White,Black |
|
Application: |
Indoor, outdoor |

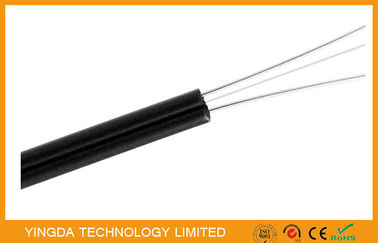

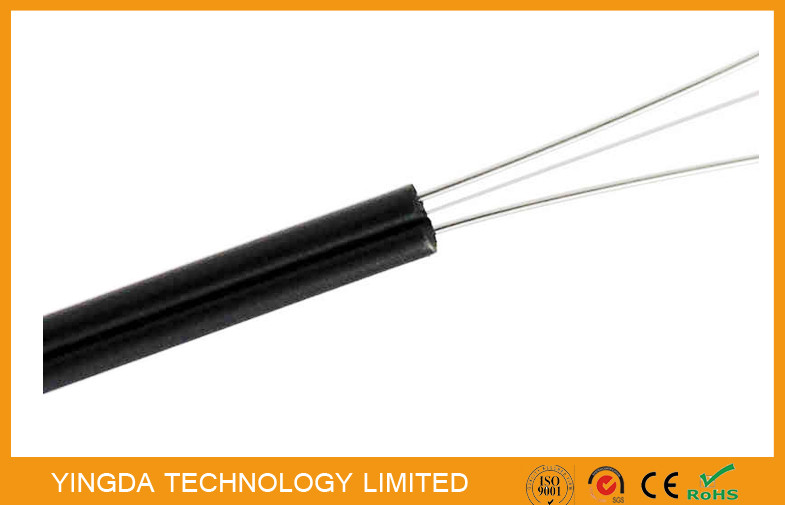

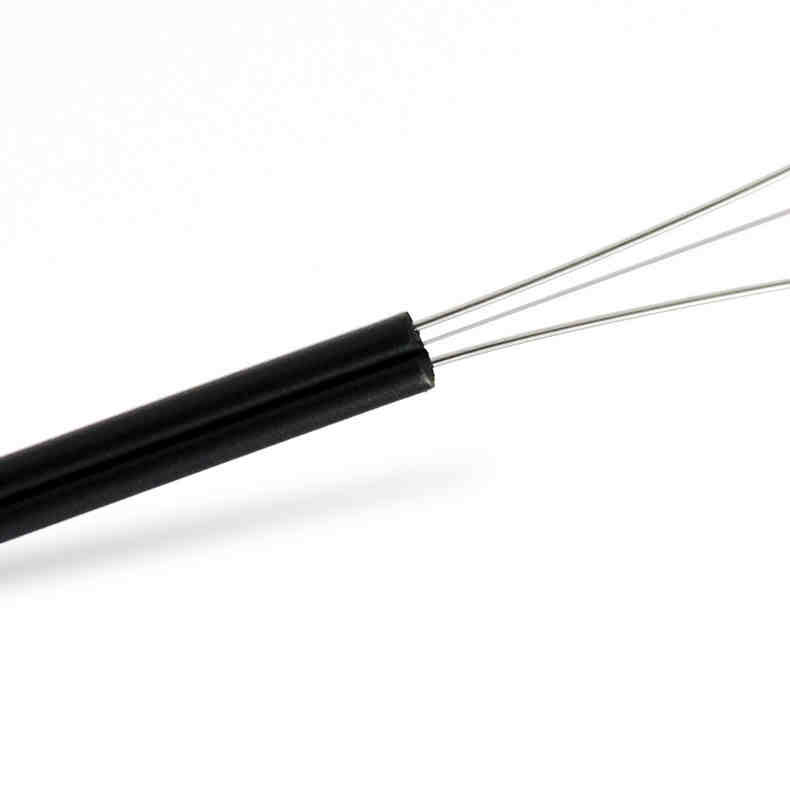

Indoor Figure -8 FTTH drop cable real photo:
White and Black color
Self-supporting FTTH drop cable real photo:
|
|
