GYFXTY 5.0mm Central Loose Tube Outdoor Cable PE Sheath FRP Black For FTTH Access Network
  • name
  • name

GYFXTY 5.0mm Central Loose Tube Outdoor Cable PE Sheath FRP Black For FTTH Access Network

MOQ: 2 KM
Price: Negotiable
Standard Packaging: 2km / wooden drum
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
GYXTC8Y
Cable Jacket:
Black
Sheath Material:
PE
Fiber Count:
1core, 2core, ... 12core
Cable Size:
3.5*6.5mm
Application:
FTTH Aerial Mount, Duct, Buried, Pipeline, Underground
Strength Member:
Steel Wire
Highlight:

Central Loose Tube Outdoor Cable

,

GYFXTY Loose Tube Cable

,

PE Sheath Loose Tube Cable

Product Description

GYFXTY 5.0mm Central Loose Tube Outdoor Cable for FTTH Access Network PE Sheath FRP Black

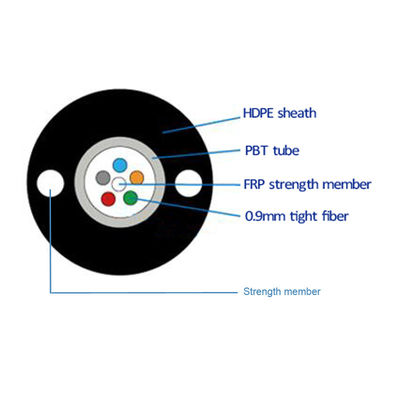

The optical fiber in the middle of central loose tube, the PBT tube are filled with a water-resistant filling compound. Outer the tube,there can add aramid yarn (kevlar) for strength member if customer request, and two parallel FRP strength member are placed at both two sides. The cable is completed with a polyethylene (PE) sheath. It is a good choice for aerial or duct application.

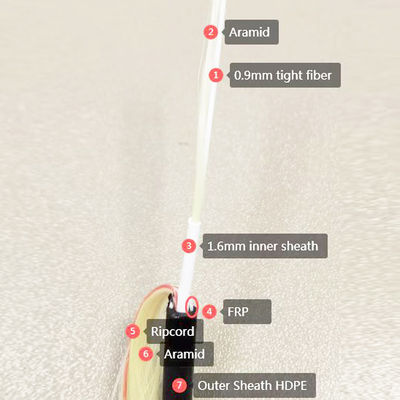

Cable Dimension and Structure

Cable type GYFXTY
Optical fiber Fiber count G657A2
  Color Natural
Buffer Material LSZH
  Color White
  Diameter 0.85±0.05mm
Loose tube Material PBT
  Color Natural
  Diameter 0.35±0.05mm
Strength member Material FRP*2
  Diameter 1.0
Outer sheath Material HDPE
  Color Black
  Diameter 5.0±0.35mm
  Thickness 1.7±0.15mm



G6572 Fiber Attenuation

Item Parameter Unit Value
Before cable After cable
Optical characteristics Attenuation at 1310nm dB/km ≤0.35 ≤0.40
Attenuation at 1383nm dB/km ≤0.35 ≤0.40
Attenuation at 1550nm dB/km ≤0.21 ≤0.30
Attenuation at 1625nm dB/km ≤0.23 ≤0.30
Zero dispersion wavelength Nm 1300-1324
Zero dispersion slope Ps/(nm2*km) ≤0.092
Cable cut off wavelength λcc nm ≤1260
Mode field diameter (MFD) at 1310nm um 8.4-9.2
Mode field diameter (MFD) at 1550nm um 9.3-10.3
Group index of refraction (Typical) at 1310nm / 1.466
Group index of refraction (Typical) at 1550nm / 1.467
Macro-bend loss (1turn, 7.5mm radius) at 1550nm dB ≤0.5
Macro-bend loss (1turn, 10mm radius) at 1550nm dB ≤0.1
Macro-bend loss (10turn, 15mm radius) at 1550nm dB ≤0.03
Geometrical characteristic Cladding diameter Um 125±7
Cladding non-circularity % ≤0.7
Coating diameter um 235-245
Coating/cladding concentricity error um ≤12.0
Coating non-circularity % ≤6.0
Core/cladding concentricity error um ≤0.5



Mechanical and Environmental Characteristics

Tensile strength Short term 500N
Long term 200N
Crush resistance Short term 500N/100mm
Long term 100N/100mm
Temperature range -20℃~+60℃
Bending radius Dynamic ≥20D
Static ≥20D



Other details:

  • Pack: wooden drums, customize on request
  • Delivery length: standard reel length 0.5-4km, customize on request
  • Marking: Cable marker every meter, include: Year of manufacturer,Type of cable,Number of fiber,Cable length, etc, Customize on request
