Figure 8 Self-Supporting Steel Messenger Wire Optical Fiber Cable GYXTC8Y

MOQ:	2 KM
Price:	Negotiable
Standard Packaging:	2km / wooden drum

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Brand Name

YINGDA

Certification

ISO,SGS

Model Number

GYXTC8Y

Cable Jacket:

Black

Sheath Material:

Fiber Count:

1core, 2core, ... 12core

Cable Size:

3.5*6.5mm

Application:

FTTH Aerial Mount, Duct, Buried, Pipeline, Underground

Strength Member:

Steel Wire

Highlight:

PE Sheath Optical Fiber Cable

Steel Wire Optical Fiber Cable

GYXTC8Y Optical Fiber Cable

Product Description

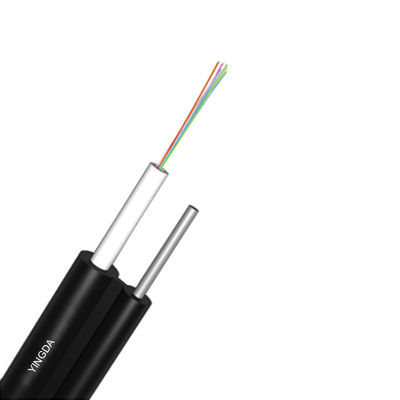

Figure 8 Self-supporting Steel Messenger Wire Optical Fiber Cable GYXTC8Y

The fibers are positioned in a loose tube made of a high modulus plastic. The loose tube are filled with a water-resistant filling compound to keep the fiber in place, and suitable for outdoor application, and then with a PE outer sheath to protect it from break or bad pulling. There are 1 more steel messenger wire to support the fiber optic cable to install for aerial mount, to keep good enough tensile strength.

Fiber drop cable application

This specification covers the general requirements of Figure 8 self-supporting Center Tube Optical cable for aerial mount.

Features

Non-metal strength has an excellent anti-electromagnet ability
Proven loose tube design for good performance
Excellent mechanical and environmental characteristics
Good flexibility and bending performance
Small outer diameter, light weight, easy to installation

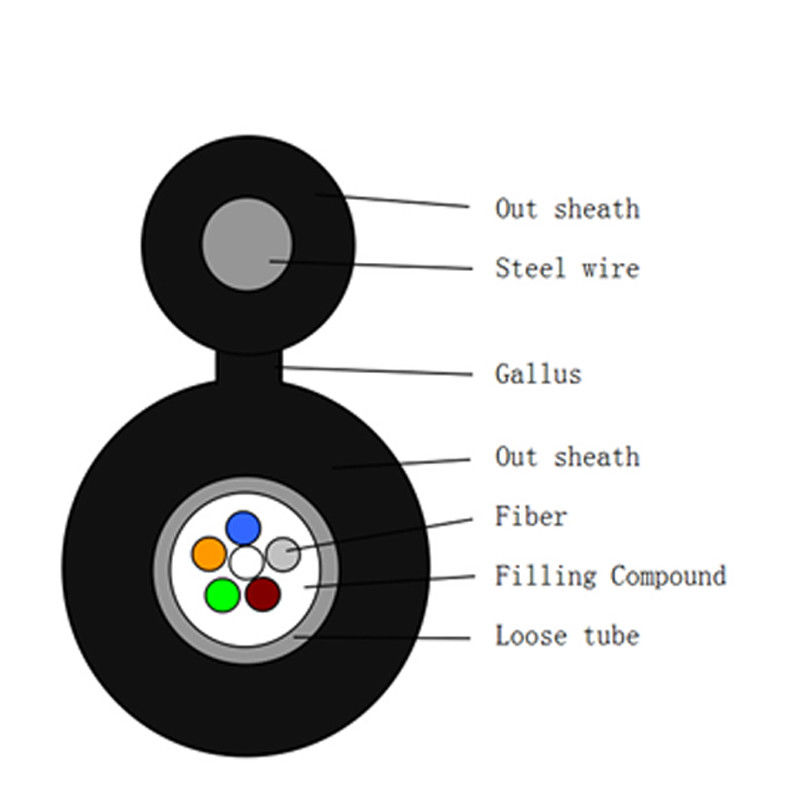

Cable Structure

Cable Type	GYXTC8Y
Number of fiber	2~12core
Moisture Barrier	Water blocking system
Central strength member	material	FRP
Central strength member	diameter	1.4mm
Mental strength member	material	Galvanized steel wire
Mental strength member	diameter	1.2 mm
Loose tube	material	PBT
Loose tube	diameter	Ф2.0mm
Cable filling	material	Cable filling compound
Outer sheath	material	PE
Outer sheath	diameter	1.70±0.2mm

Fiber Color Code

Number of fiber per tube 8cores	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Grey	White
	7	8	9	10	11	12
	Red	Black	Yellow	Violet	Pink	Aqua

Cable Mechanical Characteristic

core	Cable diameter	weight
2 cores to24 cores	3.2 * 6.5mm	55 ±5 kg/km
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	600
Min allowable Tensile Strength(N)	Short term	1500
Crush Load (N/100mm)	Long term	600
Crush Load (N/100mm)	Short term	1500
Operation temperature (℃)	-40+70
Installation temperature(℃)	-15+60

Fiber characteristics

Fiber type		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
Condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
Attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispersion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispersion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwidth	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwidth	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispersion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fiber			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fiber cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable cutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimameter	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----

Package Information

1.Packing material: Wooden drum

2.Packing length: 2km, 3km, 4km or customize.

3. customize: logo, part number, length, material, fiber color,etc
