FTTH Uni-Tube 12Cores Flat Drop Cable Fiber Optic Cable 5*6mm FRP Strength PE Sheath
  • name
  • name
  • name

FTTH Uni-Tube 12Cores Flat Drop Cable Fiber Optic Cable 5*6mm FRP Strength PE Sheath

MOQ: 10 KM
Price: Negotiable
Standard Packaging: 2km / wooden drum
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
GYXTPY
Cable Jacket:
Black
Sheath Material:
PE
Fiber Count:
1core, 2core, ... 12core
Cable Size:
5.0*6.0mm
Application:
FTTH Aerial Mount, Duct
Strength Member:
2*FRP
Highlight:

12Cores Flat Drop Cable

,

FTTH Uni-tube Flat Drop Cable

,

PE Sheath Fiber Optic Cable

Product Description

FTTH Uni-tube 12Cores Flat Drop Cable Fiber Optic Cable 5*6mm FRP Strength PE Sheath

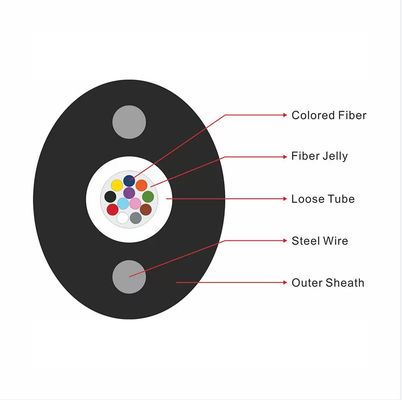

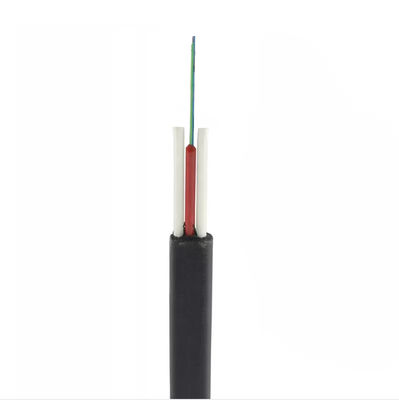

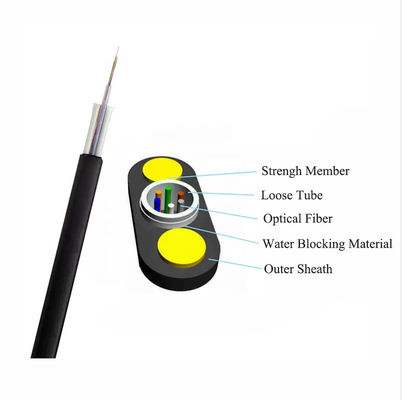

The fibers 250μm are positioned in a loose tube made of a high modulus plastic. The fiber drop cable tubes are filled with a water-resistant filling compound. Two parallel steel wires or FRP strength member are placed at the two sides of the loose tube, the cable is completed with polyethylene (PE) sheath.



12Cores Drop Cable Features

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • Inexpensive and can reduce operating costs
  • Two parallel steel wires or FRP ensure good tensile strength
  • Small diameter, light weight and friendly installation
  • Long delivery length



FTTH Drop Cable Application

  • Indoor and outdoor FTTX drop cable installs
  • Duct 8/5mm Micro Tube for push and blown fibre applications
  • Aerial installations up to 50m



Flat Drop Cable Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation(+20℃) @850nm 　 　 ≤3.0 dB/km ≤3.0 dB/km
@1300nm 　 　 ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.00 dB/km ≤0.00dB/km 　 　
@1550nm ≤0.00 dB/km ≤0.00dB/km 　 　
Bandwidth (Class A) @850nm 　 　 ≥500 MHz·km ≥200 MHz·km
@1300nm 　 　 ≥500 MHz·km ≥500 MHz·km
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1480nm 　 　



Fiber Optic Cable Technical Parameters

Cable type GYXTPY
Fiber count 1~12cores
Cable diameter 5.0*6.0mm
Cable weight 29kg/km
Tensile strength Long term 250N
  Short term 500M
Crush resistance Long term 300N/100mm
  Short term 100N/100mm
Bending radius Static 12.5D/mm
  Dynamic 25D/mm
