Figure-8 Fiber To The Home Aerial FTTH Drop Cable 2 Cores With 7*0.33mm Messenger Wire
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCable Jacket | Black | Sheath Material | LSZH |
---|---|---|---|
Fiber Count | 1core 2core, 4core | Cable Size | 3.5mm * 6.5mm |
Messenger Wire | 7pcs 0.33mm Steel Wires Strands | Application | FTTH Aerial Mount |
Strength Member | Aramid Yarn | ||
High Light | Aerial FTTH Drop Cable,2 Cores FTTH Drop Cable,Figure-8 FTTH Drop Cable |

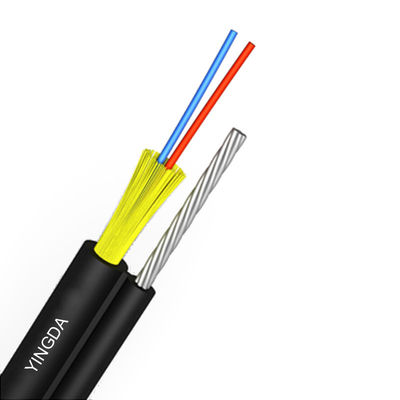

GJYFJC8H FTTH Figure-8 Fiber To The Home Aerial Drop Cable 2 Cores With 7*0.33mm Messenger Wire
Figure-8 Drop Cable will be directly connected till end user home, the bandwidth, wavelength and transmission technology are not restricted. There is 7pcs steel strands for supporting in aerial mounting. It is quite popular for ftth fiber access network
Fiber Optic Cable Application
- Adopted to outdoor level and vertical distribution.
- Suitable for connect with communication equipment.
- Long distance and local area network communication.
FTTH Cable Features
- Good mechanical and environmental characteristic
- Anti-UV characteristics meet the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft ,flexible ,easy to lay and splice,and with big capacity data transmission

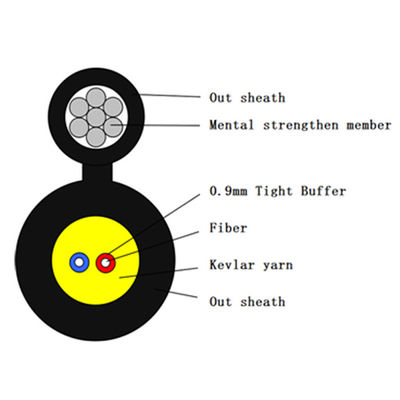

Drop Cable Structure
Items | Description | |
Number of fiber | 2cores | |
Fiber | type | G657A tight buffer |
diameter | 250µm | |
Strength member | material | Kevlar yarn |
Self support Messenger wire |
material | Steel wire |
diameter | 1.2mm Steel wire (7*0.33mm) | |
Outer sheath | material | LSZH |
diameter | 1.8±0.2mm | |
Cable size (Height * width) | 3.5 mm × 6.5mm | |
Cable weight | 26KG±1KG | |
Installation Temperature range(℃) | -20+60 | |
Operation and transport temperature(℃) | -40+70 | |
Min Bending Radius(mm) | Long term | 15D |
Min Bending Radius(mm) |
Short term | 30D |
Min allowable Tensile Strength(N) |
Long term | 500 |
Min allowable Tensile Strength(N) |
Short term | 700 |
Crush Load (N/100mm) | Long term | 500 |
Crush Load (N/100mm) | short term | 1000 |
Standard Fiber Color Identification | ||
No. | 1 | 2 |
Color | Blue | Orange |
Optical Fiber Specification
Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
Condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
Attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
Dispersion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispersion |
1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
Bandwidth | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwidth |
1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
Zero dispersion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
PMD Design Link Value | Ps(nm2*k m) |
≤0.12 | ≤0.08 | ---- | ---- | ---- | |
Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
Cable cutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
Discontinuity | |||||||
Difference back scatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
Core diameter | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
Core/cladding concentrically error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
Curl (radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
Pack Information
Packing material: Wooden drum |
Packing length: standard 2 km,1km, 3km,4km can be available |
Silk print: customize |
