Fiber Optic Patch Panel
Created with Pixso. SC FC LC ST ODF Fiber Optic Patch panel 24 Port / network Patch Panel

SC FC LC ST ODF Fiber Optic Patch panel 24 Port / network Patch Panel

Brand Name: YINGDA
Model Number: GPSM-SC24
MOQ: 100 pcs
Price: negotiable
Delivery Time: 5-8days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Material:
Cold Rolled Steel
Color:
Black
Capacity:
24 Fibers
Adapter:
SC Simplex Adapter
Cable Ports:
4 Pcs
Application:
FTTH FTTX FTTB ODN PON Network
Dimension:
430*250*1U
Thickness:
1.0mm
Packaging Details:
1pc / box, 5 pcs / carton box
Supply Ability:
500,000 pcs per month
Highlight:

optical distribution frame

,

sliding patch panel

Product Description

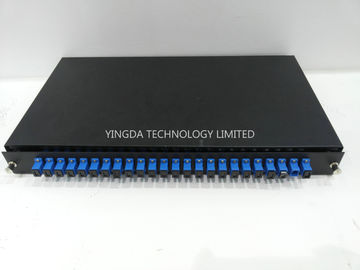

24 Port Fiber Optic Patch panel SC FC LC ST ODF Metal Sliding Drawer Patch Pane Cold Rolled Steel

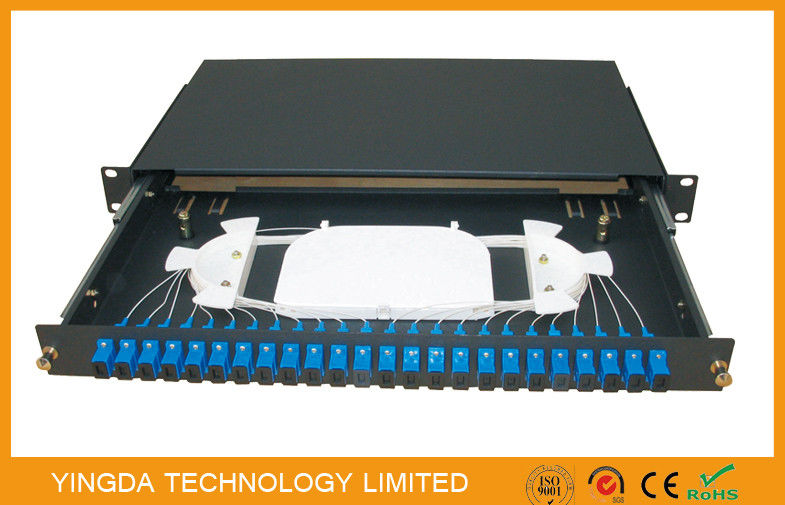

Slding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical

 fiber transmission communication network, which is suitable for indoor optical cable splice directly

and branch connection, and protective the fiber.





Features

  • Applicable in the termination and 19'' standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*250*1U available,for cost save.

Patch Panel Structure



Cable terminal box is composed of 3parts: box body, internal components, optical fiber connector

protector.

1. Box body shell

Shell is convenient to open and install, have high voltage grounding device for the metal components.

2. Internal components.

A. support: the internal structure body, used for the internal support;

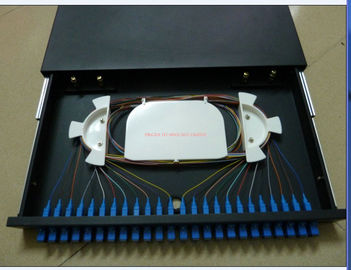

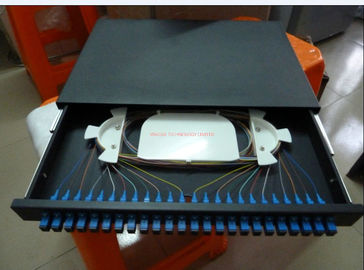

B. Splice trayto store optical fiber connectorprotection pieceand the remaining fiber, the remaining

optical fiber length1.6m, bend radius37.5mm, also have remark to identify the fiber;

C.: fixed device: to fix the optical cable sheathstrengthen member and wiring pigtail.

Protection parts of fiber optic connectors: sleeve and cable rubber gland



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9



Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.



Working temperature

 -25 to +40 °C

Storage temperature

-25 to +55 °C

Relative humidity

≤85% (30°C)

Atmospheric pressure

70 ~ 106kPa

Service life

20 years





Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties;

 all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other

equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance

 with A GB/T5169.7 test, the test last for 30s.

2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall

be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in

a 25 ~+40°C temperature.

3all materials should be non-toxic, non corrosive, on human health and other equipment element

side effects.

The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity

defects. All the background color should be uniformly continuous. Beautiful appearance and

convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in

the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Mechanical properties



Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal

box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.
