Fiber Optic Patch Panel
Created with Pixso. 24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount

Brand Name: YINGDA
Model Number: GPSR-1U-SA24
MOQ: 100 pcs
Price: negotiable
Delivery Time: 5-8days after payment
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Material:
Cold Rolled Steel
Color:
Gray
Capacity:
24 Fibers
Adapter:
SC Simplex Adapter
Cable Ports:
4 Pcs 20mm
Application:
FTTH FTTX FTTB ODN PON Network
Dimension:
430*300*1U Mm
Thickness:
1.2mm
Packaging Details:
1pc / box, 5 pcs / carton box
Supply Ability:
500,000 pcs per month
Highlight:

rack mount odf

,

optical distribution frame

,

ODF Fiber Optic Patch Panel

Product Description

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount





Fiber optic patch panel sare the auxiliary equipment for terminal wiring in optical fiber transmission communication network,

which is suitable for indoor optical cable splice directly and branch connection,and protective of the fiber.





1U Patch Panel Specification



MODEL GPSR-1U-SA24
Dimension 430*300*1U mm
Max capacity 24cores
Adapter port SC SIMPLEX
Adapter qty 24pcs SC or LC duplex
Thickness 1.2mm
Material Cold rolled steel sheet, with electrostatic spraying
Color Black, white
Cable entry 4pcs φ20mm
Net weight 5.2kg





Optical Distribution Panel Features

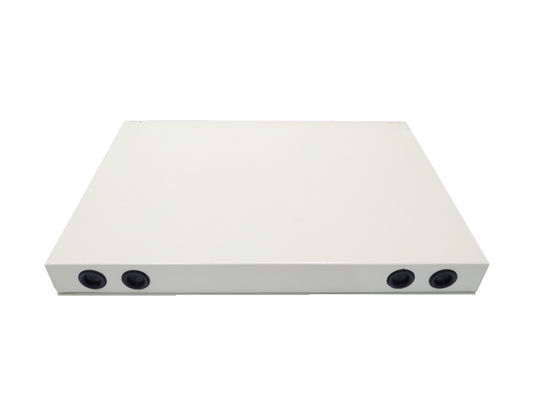

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 0



Applicable in the termination and 19'' standard structure,rack mount design, metal cold rolled steel sheet, with electrostatic spraying, 1.2mm thickness after painting. Grey color, total smooth not have cracks or fingerprint.

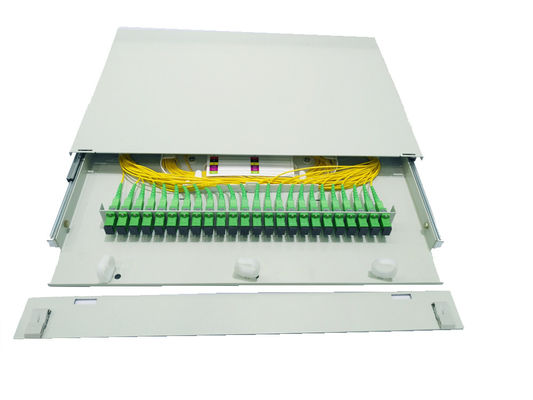

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 1

1U height 44.54mm can hold 24pcs SC simplex adapter plate, the adapter is with flange hole, all box delivered with screws to fix the adapters on plate to make it stable during long term transporation, not slide out.



1U 24cores equipped with 1 piece fusion splice tray, maximum 24cores sing fiber storage, there is enough space for 1.5meter long fiber management or storage.

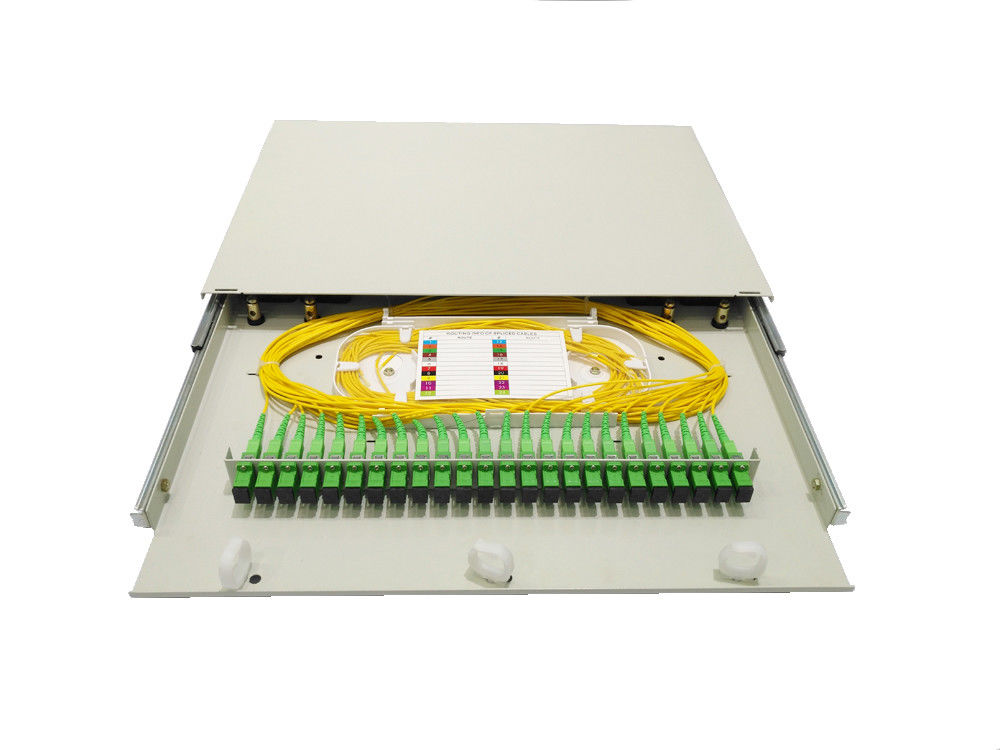

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 2



The box can be rack mounted on the ODF frame 19inch or 23inch by mounting ears, which will be configuration with the accessory bag, with enough screws, when delivery, not fixed on the box. pls take it out when onsite construction.

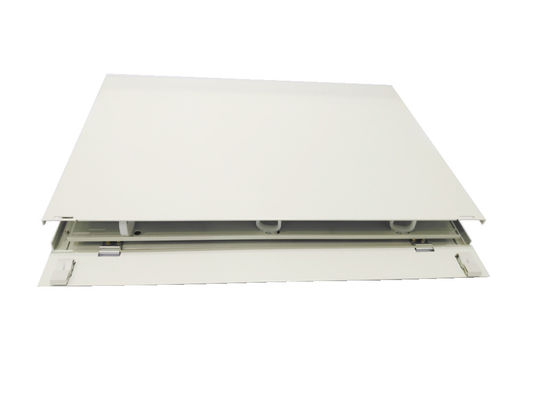

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 3



The box with 4pieces cable entry clamps and rubber seals to prevent dust or rat, which make fiber management easy and nice. The metal slide tray is better than plastic tray, it is long time use no break, it is very smooth and convenient to take out of the internal tray.



There is also 3plastic cable clamps for cable exit management, humanity design, there are  many types of clamps can be choose.

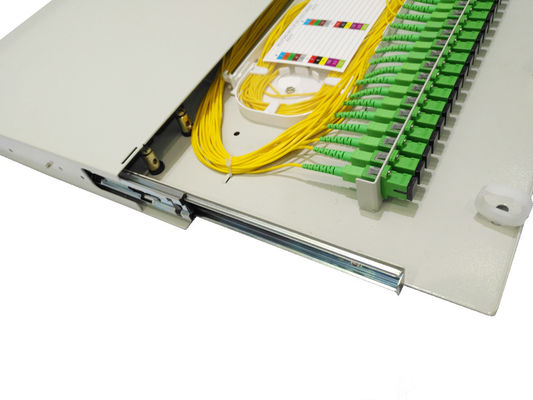

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 4

The total box will be closed with a clip at front and can be flip up or down with a metal holder at the bottom.When delivery, it will closed for better protection.





Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.

Working temperature

 -25 to +40 °C

Storage temperature

-25 to +55 °C

Relative humidity

≤85% (30°C)

Atmospheric pressure

70 ~ 106kPa

Service life

20 years







Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties all material must be compatible,

and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance with A GB/T5169.7 test, the test last for 30s.



2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall be not less than 120 °C, thermal softening

temperature shall be not less than 90 °C, can be used in  a 25 ~+40°C temperature.



3. All materials should be nontoxic, non corrosive, on human health and other equipment element side effects.

 The appearance shall complete shape, no burr, no bubblesno cracks and voids, warping, impurity defects.

 All the background color should be uniformly continuous. Beautiful appearance and convenient construction, low attenuation loss,

 reasonable structure, reinforced core is fixed in the terminal box, the sheath has ground wire

 suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Mechanical properties



Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.





Electrical properties

  1. Fiber optic cable box metal component and cable metal strengthening core, cable metal
  2.  components and the ground insulation resistance
  3. insulation resistance:
  4. should be no less than 2*104M ohm, test voltage:500V (DC).
  5.  voltage strength:
  6. no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc
  7. phenomenon.

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 5

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 6

24 Port SC APC Connector 19" ODF Fiber Optic Patch Panel Distribution Frame White Metal Rack Mount 7
